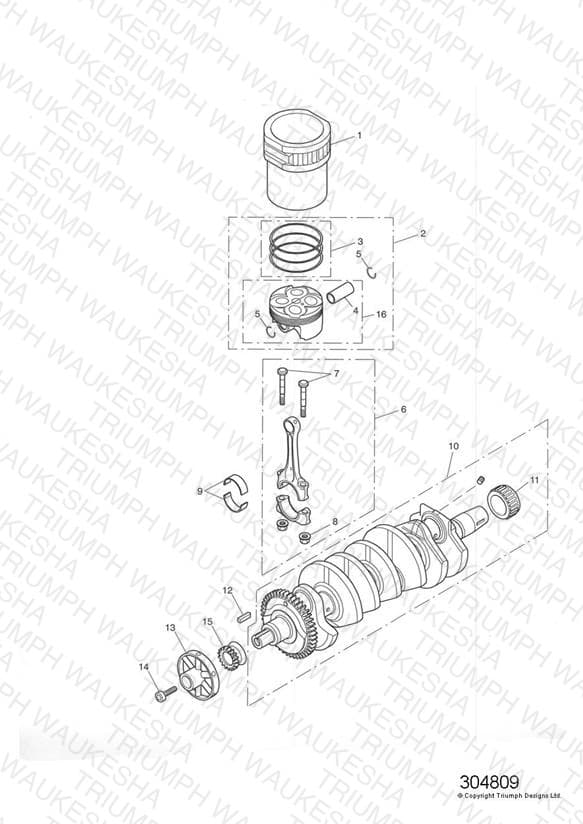

Crankshaft/Conn Rods/Pistons and Liners
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160986 Cylinder liner | Cylinder liner | 4 | $179.96 | Obsolete | View Details |
| 2 | T1120890 Piston Assy | Piston Assy | 4 | $199.40 | Obsolete | View Details |
| 3 | T1120125 Piston ring set | Piston ring set | 4 | $96.34 | Obsolete | View Details |
| 4 | T1120841 Gudgeon pin | Gudgeon pin | 4 | $9.62 | Obsolete | View Details |
| 5 | T1120824 Circlip | Circlip | 8 | $2.25 | Available to order | 8 |
| 6 | T1110809 Conn rod assy | Conn rod assy | 4 | $152.20 | Obsolete | View Details |
| 7 | T1110807 Bolt conn rod | Bolt conn rod | 8 | $11.08 | Obsolete | View Details |
| 8 | T1110808 Nut | Nut | 8 | $8.13 | Obsolete | View Details |
| 9 | T1110815 Bearing shell | Bearing shell White | — | $12.04 | Available to order | 1 |
| 9 | T1110816 Bearing shell | Bearing shell Red * Part No Longer Available * | — | $10.96 | Obsolete | View Details |
| 9 | T1110817 Bearing shell | Bearing shell Blue | — | $12.04 | Available to order | 1 |
| 10 | T1100830 Crankshaft assembly | Crankshaft assembly » ENG NO 109962 | 1 | $955.05 | Obsolete | View Details |
| 10 | T1100820 Crankshaft assembly | Crankshaft assembly ENG NO 109963 » | 1 | $1067.83 | Obsolete | View Details |
| 11 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Out of Stock | Notify Me |
| 12 | T1100808 Key, Crankshaft | Key, Crankshaft | 1 | $13.61 | Available to order | 1 |
| 13 | T1100809 Centrifugal breather | Centrifugal breather | 1 | $119.76 | Available to order | 1 |
| 14 | T3050161 Screw, Cap/HD. M8 x 20, Raw | Screw, Cap/HD. M8 x 20, Raw | 1 | $0.97 | Out of Stock | Notify Me |
| 15 | T1140806 Sprocket | Sprocket 17T | 1 | $76.48 | Obsolete | View Details |
| 16 | T1120891 Piston & Circlip Assy | Piston & Circlip Assy | 1 | $153.80 | Obsolete | View Details |
