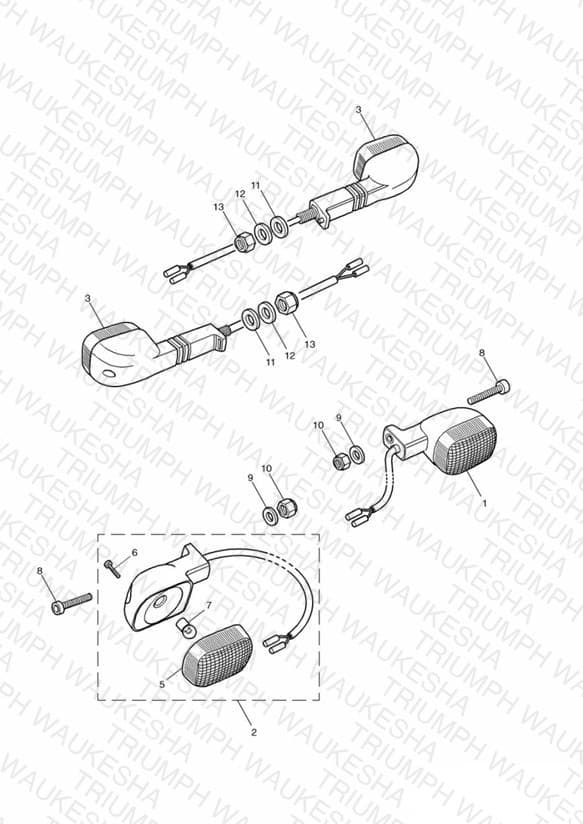

Indicators
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2705340 Indicator lamp | Indicator lamp LH front | 1 | $64.28 | Available to order | 1 |
| 2 | T2705345 Indicator lamp | Indicator lamp RH front | 1 | $64.28 | Available to order | 1 |
| 3 | T2705235 Indicator lamp | Indicator lamp LH rear | 1 | $56.35 | Available to order | 1 |
| 4 | T2705236 Indicator lamp | Indicator lamp RH rear | 1 | $56.35 | Available to order | 1 |
| 5 | T2700672 Lens | Lens | 4 | $10.88 | Available to order | 4 |
| 6 | T2700673 Screw | Screw | 4 | $1.04 | Available to order | 4 |
| 7 | 2700032-T0301 Bulb | Bulb | 4 | $5.20 | Obsolete | View Details |
| 8 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 2 | $1.61 | Available to order | 2 |
| 9 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 2 | $2.14 | Available to order | 2 |
| 10 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.71 | Available to order | 2 |
| 11 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 2 | $1.14 | Available to order | 2 |
| 12 | T3551140 Washer, Serrated, Lock, M10 | Washer, Serrated, Lock, M10 | 2 | $1.04 | Available to order | 2 |
| 13 | T3350302 Nut, M10, Slv | Nut, M10, Slv | 2 | $0.95 | Available to order | 2 |
