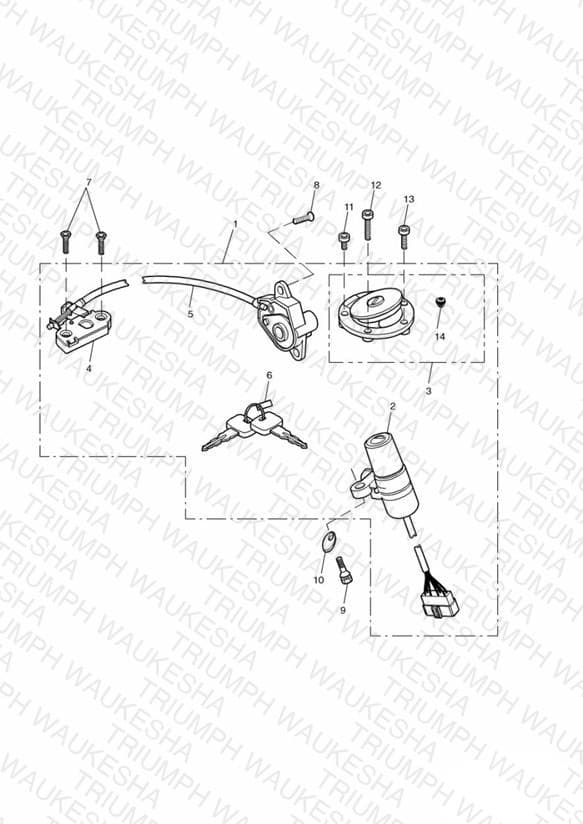

Ignition Switch & Lock Set
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2501022 Lockset | Lockset Includes 2 keys - PART NO LONGER AVAILABLE | 1 | $572.54 | Obsolete | View Details |
| 2 | T2500448 Ignition Switch | Ignition Switch Inc 2 Keys - All Markets Except US & CA | 1 | $262.38 | Available to order | 1 |
| 2 | T2500213 Ignition Switch | Ignition Switch Inc 2 Keys - US & CA Only | 1 | $266.18 | Available to order | 1 |
| 3 | T2501012 Cap, Fuel Filler, non vented | Cap, Fuel Filler, non vented Includes 2 keys | 1 | $212.94 | Available to order | 1 |
| 4 | T2500441 Lock Assy, Seat | Lock Assy, Seat Includes 2 keys | 1 | $136.88 | Available to order | 1 |
| 5 | T2503016 Cable, Seat Lock | Cable, Seat Lock | 1 | $15.22 | Obsolete | View Details |
| 6 | T2500440 Key, Uncut | Key, Uncut Supplied as single - Key blank to be cut by dealer | 1 | $20.29 | Available to order | 1 |
| 6 | T2500105 Key, Cut | Key, Cut Supplied as pair - Customer must supply key number with order | 1 | $79.02 | Available to order | 1 |
| 7 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.27 | Available to order | 2 |
| 8 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 9 | T3330327 Bolt, Shear, M6 x 22, Enc | Bolt, Shear, M6 x 22, Enc | 2 | $5.24 | Available to order | 2 |
| 10 | T3550436 Washer, M6, Elongated | Washer, M6, Elongated | 2 | $4.45 | Available to order | 2 |
| 11 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 3 | $3.80 | Backorder — Early September 2026 | 3 |
| 12 | T3050144 Screw, Cap HD, M5x30, SS | Screw, Cap HD, M5x30, SS | 3 | $2.25 | Available to order | 3 |
| 13 | T3050342 Screw, Cap/Hd, M5 x 16, Slv | Screw, Cap/Hd, M5 x 16, Slv | 1 | $2.85 | Available to order | 1 |
| 14 | T2500466 Vent seal | Vent seal US Cal ONLY | 1 | $5.54 | Obsolete | View Details |
