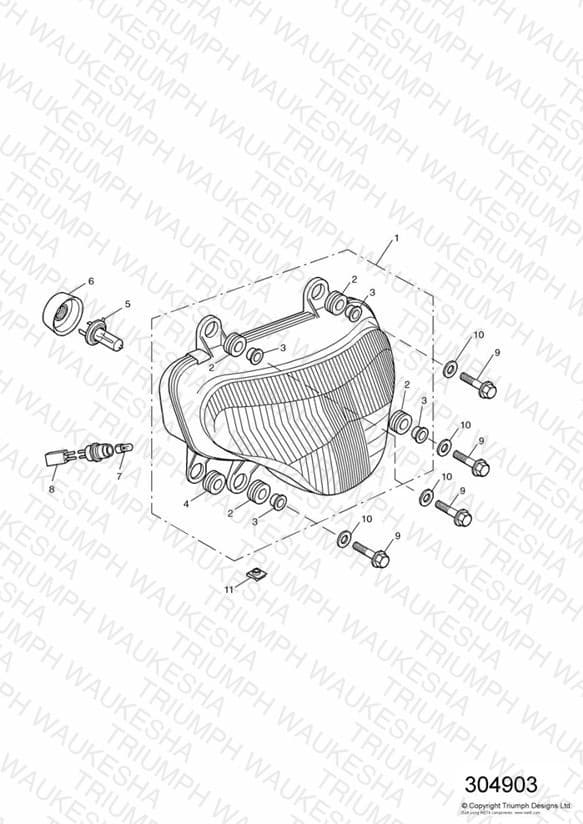

Headlight/Mountings
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701025 Headlight | Headlight LH dip | 1 | $386.45 | Obsolete | View Details |
| 1 | T2701050 Headlight | Headlight RH dip DE,SE,BR,IT,ES,PT,GR,CH,NL,FR,AR - All Vins SG, 110500 » | 1 | $386.45 | Obsolete | View Details |
| 1 | T2701075 Headlight | Headlight Symmetrical dip US & CA, All Vins SG, » 110499 | 1 | $360.83 | Obsolete | View Details |
| 2 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 4 | $1.91 | Available to order | 4 |
| 3 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 4 | T2700671 Grommet | Grommet | 3 | $1.05 | Obsolete | View Details |
| 5 | T2700001 Bulb, H4 60/55W, 12V, Type 1, Clear | Bulb, H4 60/55W, 12V, Type 1, Clear Headlamp | 1 | $17.69 | Available to order | 1 |
| 6 | T2700675 Rubber boot | Rubber boot | 1 | $7.38 | Obsolete | View Details |
| 7 | T2700938 Bulb, W5W, 5W, 12V, Clear | Bulb, W5W, 5W, 12V, Clear Side lamp | 1 | $4.30 | Available to order | 1 |
| 8 | T2700661 Harness | Harness | 1 | $17.89 | Obsolete | View Details |
| 9 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 4 | $3.70 | Available to order | 4 |
| 10 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 4 | $2.00 | Available to order | 4 |
| 11 | T3351052 Nut, Captive, 4-5.5mm | Nut, Captive, 4-5.5mm | 1 | $4.36 | Available to order | 1 |
