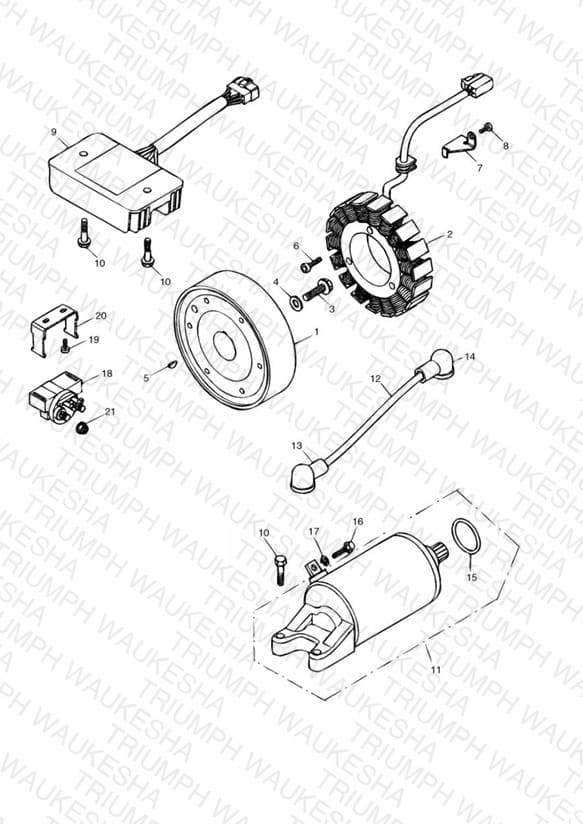

Alternator/Starter 171121 »
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1300816 Rotor | Rotor | 1 | $898.07 | Obsolete | View Details |
| 2 | T1300818 Stator | Stator * PART NO LONGER AVAILABLE * | 1 | $574.18 | Obsolete | View Details |
| 3 | T3330836 Bolt, Cap/Hd, M12 x 30, Raw | Bolt, Cap/Hd, M12 x 30, Raw | 1 | $7.22 | Available to order | 1 |
| 4 | T3550846 Washer, M12 x 30 x 8 | Washer, M12 x 30 x 8 | 1 | $11.03 | Available to order | 1 |
| 5 | T1300895 Key, Woodruff | Key, Woodruff | 1 | $7.77 | Available to order | 1 |
| 6 | T3051135 Screw, Cap/Hd, M6 x 30, Enc | Screw, Cap/Hd, M6 x 30, Enc | 3 | $1.06 | Available to order | 3 |
| 7 | T1261082 Plate | Plate | 1 | $10.26 | Obsolete | View Details |
| 8 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 9 | T1300889 Kit, Regulator Rectifier | Kit, Regulator Rectifier | 1 | $422.46 | Available to order | 1 |
| 10 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 4 | $2.46 | Available to order | 4 |
| 11 | T1311117 Starter Motor | Starter Motor | 1 | $406.25 | Obsolete | View Details |
| 12 | T2500333 Wire lead | Wire lead | 1 | $54.26 | Obsolete | View Details |
| 13 | T2500485 Boot cover | Boot cover 120 Degree | 1 | $1.69 | Obsolete | View Details |
| 14 | T2500459 Boot, 90 Deg | Boot, 90 Deg | 1 | $4.07 | Obsolete | View Details |
| 15 | T3600115 O Ring | O Ring | 1 | $3.39 | Backorder — Mid September 2026 | 1 |
| 16 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 1 | $3.24 | Available to order | 1 |
| 17 | T3555007 Spring Washer, M5 | Spring Washer, M5 | 1 | $1.40 | Available to order | 1 |
| 18 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 19 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 1 | $0.97 | Available to order | 1 |
| 20 | T1310038 Starter Solenoid, Bracket | Starter Solenoid, Bracket | 1 | $4.01 | Backorder — Late August 2026 | 1 |
| 21 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
