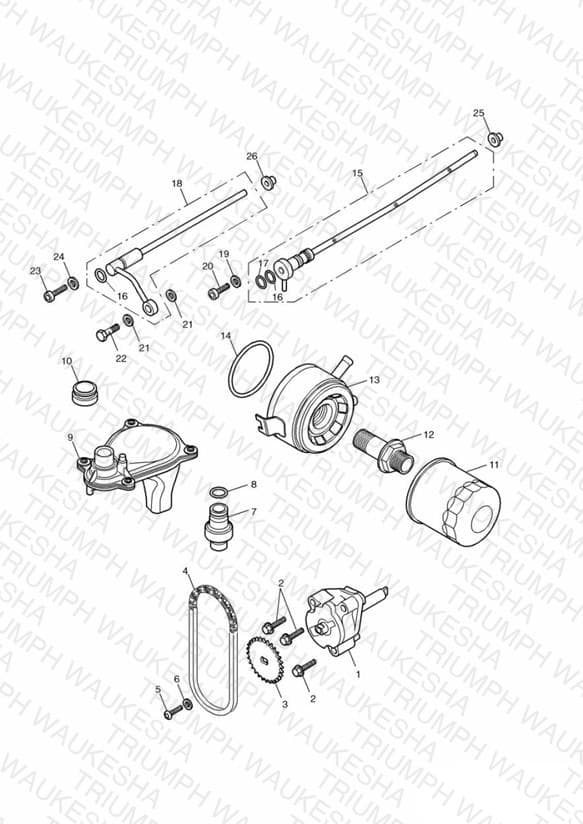

Lubrication System
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210515 Oil pump assembly | Oil pump assembly | 1 | $262.85 | Obsolete | View Details |
| 2 | T3201029 Bolt, RHHF, M6 x 40, Raw | Bolt, RHHF, M6 x 40, Raw M6 x 40mm | 3 | $2.24 | Available to order | 3 |
| 3 | T1210810 Sprocket, Oil Pump Drive, 25T | Sprocket, Oil Pump Drive, 25T 25T | 1 | $34.32 | Available to order | 1 |
| 4 | T1210815 Chain | Chain | 1 | $22.50 | Obsolete | View Details |
| 5 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.50 | Available to order | 1 |
| 6 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 1 | $2.14 | Available to order | 1 |
| 7 | T1210070 Valve pressure relief | Valve pressure relief | 1 | $81.74 | Obsolete | View Details |
| 8 | T3600245 O ring | O ring | 1 | $4.01 | Obsolete | View Details |
| 9 | T1210920 Strainer | Strainer | 1 | $75.30 | Obsolete | View Details |
| 10 | T3600232 Oil Strainer Seal | Oil Strainer Seal | 1 | $8.79 | Available to order | 1 |
| 11 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $18.63 | Available to order | 1 |
| 11 | T1210440 Oil Filter Multipack (24) | Oil Filter Multipack (24) | 1 | $390.71 | Available to order | 1 |
| 11 | T1210443 Oil Filter Multipack (80) | Oil Filter Multipack (80) | 1 | $1233.29 | Available to order | 1 |
| 12 | T1210905 Bolt | Bolt | 1 | $21.72 | Obsolete | View Details |
| 13 | T1210902 Oil cooler | Oil cooler | 1 | $322.86 | Obsolete | View Details |
| 14 | T3600250 O Ring, 59.5 x 3.0 | O Ring, 59.5 x 3.0 | 1 | $3.14 | Available to order | 1 |
| 15 | T1210850 Oil pipe assy | Oil pipe assy | 1 | $59.73 | Obsolete | View Details |
| 16 | T3600057 O ring | O ring | 2 | $1.14 | Obsolete | View Details |
| 17 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.24 | Backorder — Mid October 2026 | 1 |
| 18 | T1210600 Pipe oil | Pipe oil | 1 | $47.35 | Obsolete | View Details |
| 19 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 1 | $4.38 | Available to order | 1 |
| 20 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw | 1 | $1.56 | Available to order | 1 |
| 21 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 2 | $1.12 | Available to order | 2 |
| 22 | T1211520 Banjo bolt | Banjo bolt | 1 | $9.52 | Obsolete | View Details |
| 23 | T3332704 Screw, Torx, M6 x 14 | Screw, Torx, M6 x 14 M6 x 14mm | 1 | $5.58 | Backorder — Early October 2026 | 1 |
| 24 | 3550230-T0301 Washer hard | Washer hard | 1 | $4.30 | Obsolete | View Details |
| 25 | T3020850 Rubber grommet | Rubber grommet | 1 | $15.30 | Obsolete | View Details |
| 26 | T3020851 Rubber grommet | Rubber grommet | 1 | $4.34 | Obsolete | View Details |
