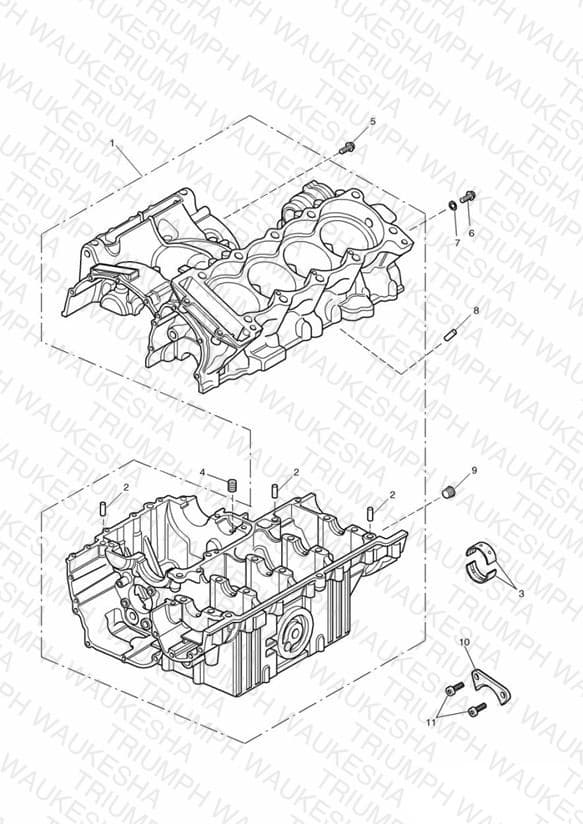

Crankcase
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160846 Crankcase | Crankcase | 1 | $3110.60 | Out of Stock | Notify Me |
| 2 | T3000102 Dowel, Hollow, 10 x 14 | Dowel, Hollow, 10 x 14 | 5 | $1.79 | Available to order | 5 |
| 3 | T1160954 Bearing shell | Bearing shell White | — | $13.18 | Available to order | 1 |
| 3 | T1160955 Bearing shell | Bearing shell Red | — | $13.18 | Available to order | 1 |
| 3 | T1160956 Bearing shell | Bearing shell Blue | — | $9.89 | Obsolete | View Details |
| 3 | T1160957 Bearing shell | Bearing shell Green | — | $9.89 | Obsolete | View Details |
| 4 | T1210075 Restrictor | Restrictor | 1 | $37.25 | Obsolete | View Details |
| 5 | T3450022 Grub screw | Grub screw M8 | 1 | $1.25 | Obsolete | View Details |
| 6 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Available to order | 1 |
| 7 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 8 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 9 | T3450312 Plug expansion | Plug expansion | 1 | $1.22 | Obsolete | View Details |
| 10 | T1181162 Plate retainer | Plate retainer ENG NO 143273 » | 1 | $12.16 | Out of Stock | Notify Me |
| 11 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw ENG NO 143273 » | 2 | $1.47 | Available to order | 2 |
