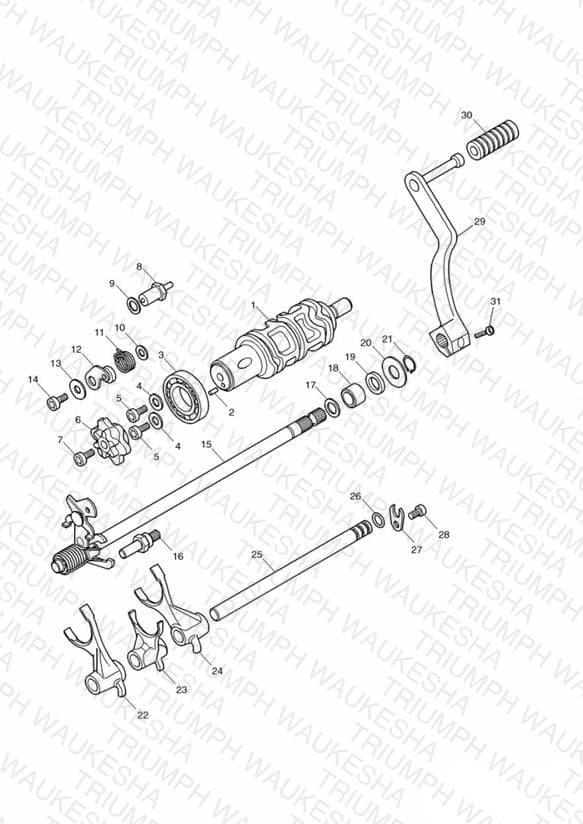

Gear Selectors and Pedal
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190031 Selector Drum | Selector Drum | 1 | $315.93 | Obsolete | View Details |
| 2 | T3000009 Dowel | Dowel | 1 | $0.01 | Obsolete | View Details |
| 3 | T1190286 Bearing, Ball | Bearing, Ball | 1 | $48.95 | Available to order | 1 |
| 4 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 | 2 | $4.12 | Available to order | 2 |
| 5 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 2 | $1.27 | Available to order | 2 |
| 6 | T1190039 Detent wheel | Detent wheel | 1 | $34.92 | Obsolete | View Details |
| 7 | T3330186 Screw, Pan HD, Tx, M6 x 25, Slv | Screw, Pan HD, Tx, M6 x 25, Slv M6 x 25mm | 1 | $3.17 | Available to order | 1 |
| 8 | T1190494 Neutral Indicator Switch | Neutral Indicator Switch Neutral | 1 | $39.24 | Backorder — Late August 2026 | 1 |
| 9 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 2 | $0.89 | Available to order | 2 |
| 10 | T3550228 Washer, Hardened, 6.4 x 12.5 x 2 | Washer, Hardened, 6.4 x 12.5 x 2 | 1 | $1.72 | Out of Stock | Notify Me |
| 11 | T1190040 Spring, Detent Lever | Spring, Detent Lever | 1 | $3.22 | Obsolete | View Details |
| 12 | T1190167 Detent Arm | Detent Arm | 1 | $18.43 | Obsolete | View Details |
| 13 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 1 | $2.00 | Backorder — Late August 2026 | 1 |
| 14 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc | 1 | $1.13 | Available to order | 1 |
| 15 | T1190042 Lever Assy, Gearchange | Lever Assy, Gearchange | 1 | $141.78 | Obsolete | View Details |
| 16 | T1191143 Pin, Spring Abutment | Pin, Spring Abutment | 1 | $9.88 | Available to order | 1 |
| 17 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 18 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $13.61 | Available to order | 1 |
| 19 | T3600008 Oil Seal | Oil Seal | 1 | $12.04 | Available to order | 1 |
| 20 | T3550090 Washer, Thrust | Washer, Thrust | 1 | $4.12 | Available to order | 1 |
| 21 | 3500008-T0301 Circlip | Circlip » 115673 | 1 | $0.90 | Obsolete | View Details |
| 21 | T3500044 E Circlip | E Circlip 115674 » | 1 | $0.97 | Available to order | 1 |
| 22 | T1190033 Selector fork | Selector fork Input | 1 | $115.79 | Obsolete | View Details |
| 23 | T1190034 Selector fork | Selector fork Output | 1 | $132.46 | Obsolete | View Details |
| 24 | T1190032 Fork, A, Selector Output | Fork, A, Selector Output Output | 1 | $115.79 | Obsolete | View Details |
| 25 | T1190035 Selector shaft | Selector shaft » ENG NO 156498 | 1 | $27.91 | Available to order | 1 |
| 25 | T1190057 Selector shaft | Selector shaft ENG NO 156499 » ENG NO 180782 | 1 | $39.44 | Out of Stock | Notify Me |
| 25 | T1190056 Selector Shaft | Selector Shaft ENG NO 180783 > | 1 | $29.75 | Out of Stock | Notify Me |
| 26 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 27 | 1190110-T0301 Plate keeper | Plate keeper » ENG NO 156498 | 1 | $2.48 | Available to order | 1 |
| 27 | T1190101 Keeper Plate, Selector Shaft | Keeper Plate, Selector Shaft ENG NO 156499 » | 1 | $5.14 | Available to order | 1 |
| 28 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 1 | $2.10 | Available to order | 1 |
| 29 | T2080499 Pedal assembly | Pedal assembly ** Part No Longer Available ** | 1 | $102.97 | Obsolete | View Details |
| 30 | 2080043-T0301 Rubber | Rubber | 1 | $8.09 | Available to order | 1 |
| 31 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
