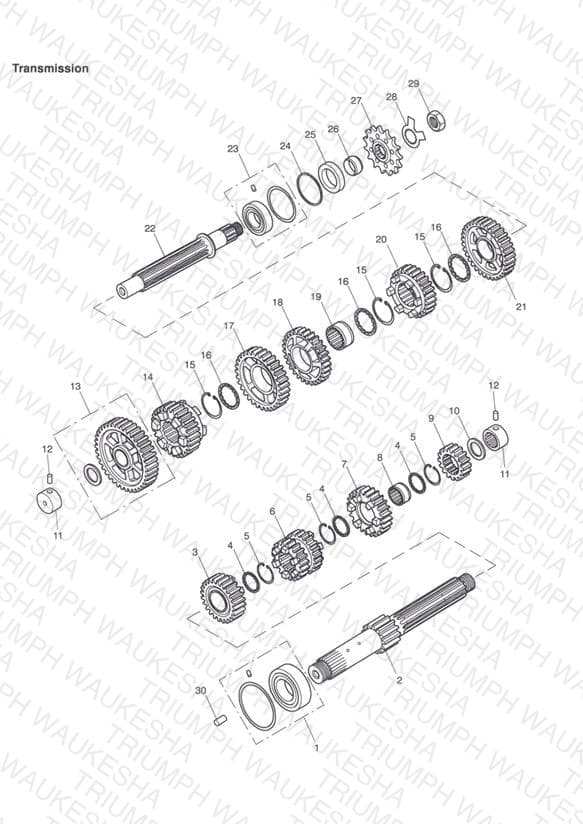

Transmission
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1180316 Bearing | Bearing | 1 | $85.50 | Obsolete | View Details |
| 2 | T1180300 Shaft & gear | Shaft & gear Input 1st | 1 | $638.11 | Obsolete | View Details |
| 3 | T1180333 Gear Input | Gear Input 5th | 1 | $126.56 | Obsolete | View Details |
| 4 | T1180322 Thrust washer | Thrust washer | 3 | $12.08 | Obsolete | View Details |
| 5 | T3500021 Circlip | Circlip | 3 | $5.30 | Available to order | 3 |
| 6 | T1180302 Gear input | Gear input 3rd/4th | 1 | $177.80 | Obsolete | View Details |
| 7 | T1180304 Gear input | Gear input 6th | 1 | $106.60 | Obsolete | View Details |
| 8 | T1180313 Bush | Bush 6th | 1 | $55.11 | Obsolete | View Details |
| 9 | T1180301 Gear input | Gear input 2nd | 1 | $55.98 | Obsolete | View Details |
| 10 | T1180324 Thrust washer | Thrust washer | 1 | $13.74 | Obsolete | View Details |
| 11 | T1180317 Needle bearing | Needle bearing | 2 | $111.10 | Obsolete | View Details |
| 12 | T3000065 Dowel | Dowel | 2 | $5.36 | Obsolete | View Details |
| 13 | T1180343 Kit | Kit 1st Gear Output Remove original thrust washers when fitting this gear. Only 1 washer should be used on the end of the output shaft. | 1 | $190.46 | Obsolete | View Details |
| 14 | T1180310 Gear output | Gear output 5th | 1 | $164.84 | Obsolete | View Details |
| 15 | T3500022 Circlip | Circlip | 3 | $5.15 | Obsolete | View Details |
| 16 | T1180323 Thrust washer | Thrust washer | 3 | $10.53 | Obsolete | View Details |
| 17 | T1180308 Gear output | Gear output 3rd | 1 | $107.42 | Obsolete | View Details |
| 18 | T1180309 Gear output | Gear output 4th | 1 | $106.01 | Obsolete | View Details |
| 19 | T1180314 Bush | Bush 3rd/4th | 1 | $53.02 | Obsolete | View Details |
| 20 | T1180311 Gear output | Gear output 6th | 1 | $156.41 | Obsolete | View Details |
| 21 | T1180337 Gear output | Gear output 2nd | 1 | $154.85 | Obsolete | View Details |
| 22 | T1180305 Shaft output | Shaft output | 1 | $420.62 | Obsolete | View Details |
| 23 | T1180319 Bearing | Bearing | 1 | $149.71 | Obsolete | View Details |
| 24 | T1180318 Ring retaining | Ring retaining | 1 | $10.42 | Obsolete | View Details |
| 25 | T1180325 Seal | Seal | 1 | $5.62 | Obsolete | View Details |
| 26 | T1180320 Spacer | Spacer | 1 | $34.95 | Out of Stock | Notify Me |
| 27 | T1180185 Sprocket | Sprocket 14T » 165716 or » Engine No.166383 | 1 | $34.43 | Available to order | 1 |
| 27 | T1180179 Sprocket | Sprocket 15T 165717 » or Engine No.166384 » | 1 | $34.43 | Available to order | 1 |
| 28 | T1180328 Washer, Tab, Sprocket | Washer, Tab, Sprocket | 1 | $17.01 | Available to order | 1 |
| 29 | T1180175 Nut, Gearbox Sprocket | Nut, Gearbox Sprocket | 1 | $5.56 | Available to order | 1 |
| 30 | T3450022 Grub screw | Grub screw 1mm | 1 | $1.25 | Obsolete | View Details |
