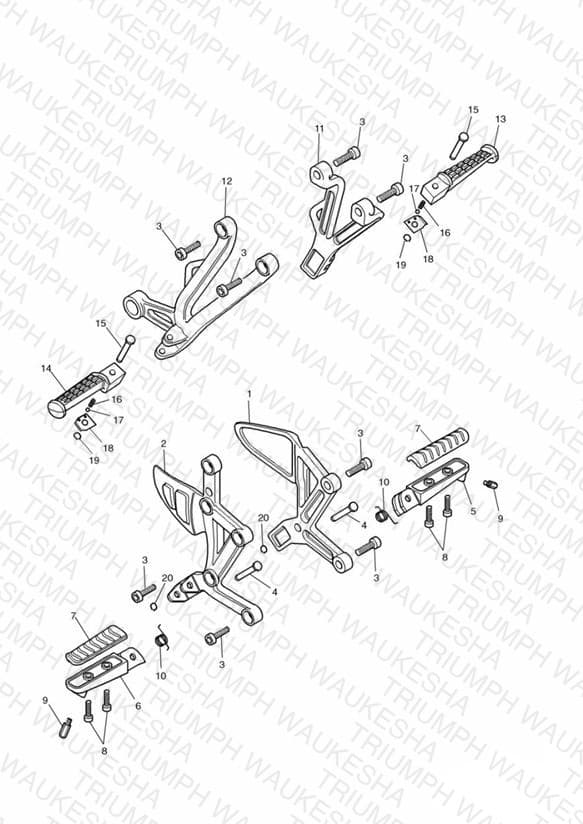

Loading schematic...
Footrests & Mountings
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080441 Control plate lh | Control plate lh » 115673 | 1 | $165.99 | Obsolete | View Details |
| 1 | T2080507 Control plate lh | Control plate lh 115674 » | 1 | $192.18 | Available to order | 1 |
| 2 | T2080440 Control plate rh | Control plate rh » 115673 | 1 | $192.18 | Available to order | 1 |
| 2 | T2080508 Control plate rh | Control plate rh 115674 » ** PART NO LONGER AVAILABLE ** | 1 | $177.74 | Obsolete | View Details |
| 3 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 8 | $7.90 | Available to order | 8 |
| 4 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.88 | Available to order | 2 |
| 5 | T2080522 Footrest | Footrest LH front | 1 | $95.18 | Available to order | 1 |
| 6 | T2080521 Footrest | Footrest RH front | 1 | $79.77 | Obsolete | View Details |
| 7 | T2080487 Rubber | Rubber | 2 | $38.76 | Available to order | 2 |
| 8 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 4 | $1.04 | Available to order | 4 |
| 9 | T2085164 Peg, Bank Angle, 9.2mm | Peg, Bank Angle, 9.2mm | 2 | $14.59 | Available to order | 2 |
| 10 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.70 | Available to order | 2 |
| 11 | T2080494 Kit | Kit » 107800 Footrest hanger LH | 1 | $168.74 | Obsolete | View Details |
| 11 | T2080527 Footrest hanger | Footrest hanger 107801 » » 110974 LH | 1 | $156.51 | Obsolete | View Details |
| 11 | T2080512 Footrest hanger | Footrest hanger 110975 » » 136916 LH | 1 | $146.42 | Obsolete | View Details |
| 12 | T2080495 Kit | Kit » 107800 Footrest Hanger RH | 1 | $165.43 | Obsolete | View Details |
| 12 | T2080511 Footrest hanger | Footrest hanger 107801 » » 110974 RH | 1 | $203.20 | Backorder — Mid October 2026 | 1 |
| 12 | T2080534 Footrest hanger | Footrest hanger 110975 » » 136916 RH | 1 | $149.12 | Obsolete | View Details |
| 13 | T2080581 Footrest, LH, Rear | Footrest, LH, Rear LH rear | 1 | $82.49 | Obsolete | View Details |
| 14 | T2080591 Footrest, Rear, RH | Footrest, Rear, RH RH rear | 1 | $82.49 | Obsolete | View Details |
| 15 | T2080547 Pivot pin | Pivot pin | 2 | $6.98 | Available to order | 2 |
| 16 | T2080569 Return spring | Return spring | 2 | $1.21 | Obsolete | View Details |
| 17 | T2080563 Ball bearing | Ball bearing | 2 | $1.36 | Obsolete | View Details |
| 18 | T2080567 Detent plate | Detent plate PART NO LONGER AVAILABLE | 2 | $4.03 | Obsolete | View Details |
| 19 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $3.04 | Available to order | 2 |
| 20 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 2 | $2.29 | Available to order | 2 |
