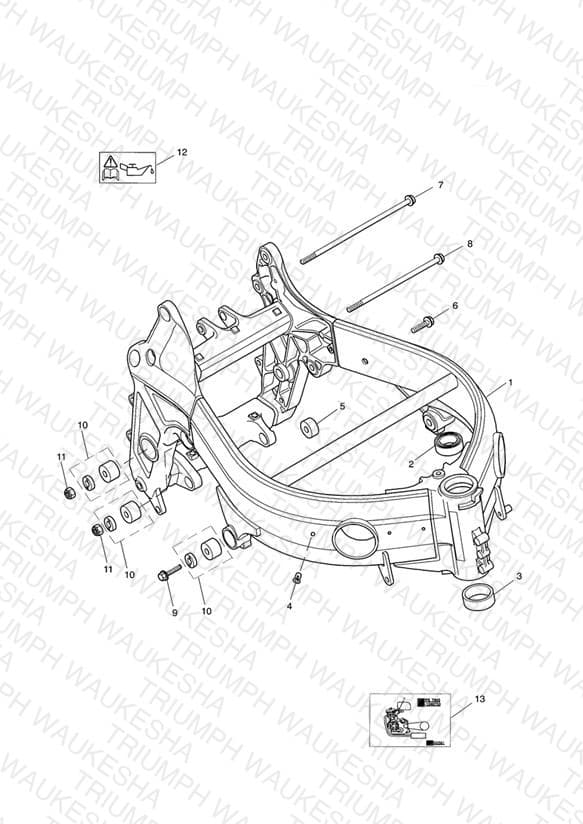

Main Frame & Fittings
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2070180 FRAME ASSY.BLACK,ROW | FRAME ASSY.BLACK,ROW World > 115673 & SG 110500 > 115673 | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070181 FRAME ASSY,BLACK,49 STATE | FRAME ASSY,BLACK,49 STATE US 49 State & South America > 115673 - SG > 110499 | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070182 FRAME ASSY,BLACK,CALIFORNIA | FRAME ASSY,BLACK,CALIFORNIA US CAL > 115673 | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070183 FRAME ASSY,BLACK,CANADA | FRAME ASSY,BLACK,CANADA CA > 115673 | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070310 FRAME ASSY SILVER R.O.W | FRAME ASSY SILVER R.O.W World 115674 > & Roulette Green Bikes | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070312 FRAME ASSY,SILVER,49 STATES | FRAME ASSY,SILVER,49 STATES US 49 State & South America 115674 > | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070314 FRAME ASSY,SILVER,CALIFORNIA | FRAME ASSY,SILVER,CALIFORNIA US CAL 115674 > | 1 | $2082.04 | Obsolete | View Details |
| 1 | T2070316 FRAME ASSY,SILVER,CANADA | FRAME ASSY,SILVER,CANADA CA 115674 > | 1 | $2082.04 | Obsolete | View Details |
| 2 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 3 | T3800047 Bearing taper roller | Bearing taper roller | 1 | $98.72 | Available to order | 1 |
| 4 | T3350210 Threaded Insert, M6, Open Ended | Threaded Insert, M6, Open Ended | 4 | $1.62 | Available to order | 4 |
| 5 | T2070052 Spacer | Spacer | 1 | $7.02 | Out of Stock | Notify Me |
| 6 | T3330141 Bolt flanged | Bolt flanged | 1 | $0.97 | Obsolete | View Details |
| 7 | T3330145 Bolt | Bolt | 1 | $13.04 | Obsolete | View Details |
| 8 | T3330146 Bolt | Bolt | 1 | $20.89 | Available to order | 1 |
| 9 | T3330134 Bolt | Bolt ** Part No Longer Available ** | 1 | $3.20 | Obsolete | View Details |
| 10 | T2070051 Adjuster Assembly | Adjuster Assembly | 3 | $25.92 | Obsolete | View Details |
| 11 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 2 | $4.16 | Available to order | 2 |
| 12 | T3900302 Label, Oil & Filter | Label, Oil & Filter Oil & filter | 1 | $5.69 | Available to order | 1 |
| 13 | T3900591 Label, Power Restriction | Label, Power Restriction FR | 1 | $4.76 | Obsolete | View Details |
