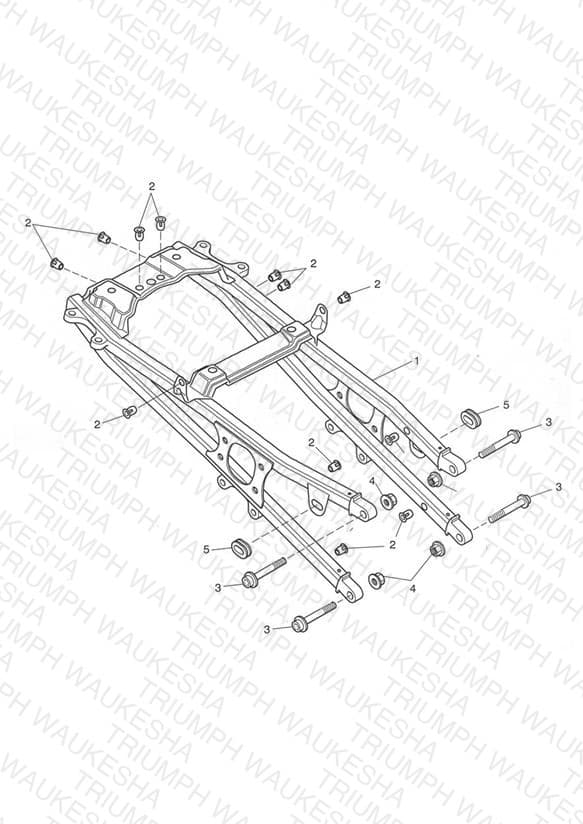

Rear Sub-Frame and Fittings
Parts (6)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2071098 Subframe | Subframe 115673 » | 1 | $693.17 | Obsolete | View Details |
| 1 | T2071093 Subframe | Subframe 115674 » And All Roulette Green Bikes Silver | 1 | $607.85 | Obsolete | View Details |
| 2 | T3350210 Threaded Insert, M6, Open Ended | Threaded Insert, M6, Open Ended | 12 | $1.62 | Available to order | 12 |
| 3 | T3331921 Screw, Tx, Flgd, M10 x 47, Slv | Screw, Tx, Flgd, M10 x 47, Slv | 4 | $4.65 | Obsolete | View Details |
| 4 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 4 | $4.16 | Available to order | 4 |
| 5 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.55 | Available to order | 2 |
