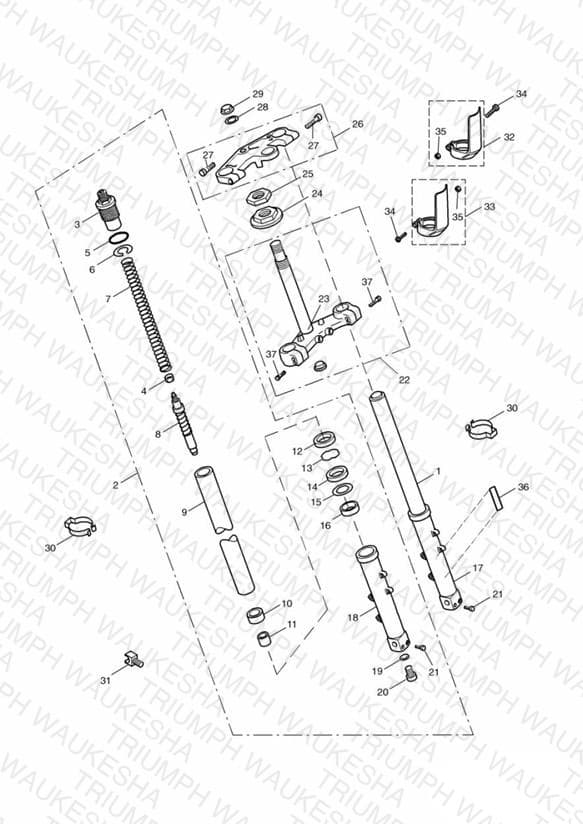

Front Forks and Yokes
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2044402 Stanchion assembly | Stanchion assembly LH | 1 | $875.69 | Obsolete | View Details |
| 2 | T2044401 Stanchion assembly | Stanchion assembly RH | 1 | $875.69 | Obsolete | View Details |
| 3 | 2040071-T0301 Top cap | Top cap | 2 | $68.35 | Obsolete | View Details |
| 4 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 2 | $2.74 | Available to order | 2 |
| 5 | T2040081 O Ring, Fork Seal | O Ring, Fork Seal | 2 | $3.59 | Available to order | 2 |
| 6 | 2040082-T0301 Washer spring | Washer spring PART NO LONGER AVAILABLE | 2 | $1.12 | Obsolete | View Details |
| 7 | T2040324 Spring | Spring | 2 | $90.51 | Obsolete | View Details |
| 8 | T2040318 Cylinder | Cylinder | 2 | $446.16 | Obsolete | View Details |
| 9 | T2040317 Inner tube | Inner tube | 2 | $325.66 | Backorder — Late August 2026 | 2 |
| 10 | T2045083 Bearing | Bearing | 2 | $11.71 | Available to order | 2 |
| 11 | T2040319 Oil lock | Oil lock | 2 | $29.53 | Obsolete | View Details |
| 12 | T2040323 Dust Seal | Dust Seal | 2 | $20.03 | Available to order | 2 |
| 13 | 2040079-T0301 Ring snap | Ring snap | 2 | $6.83 | Available to order | 2 |
| 14 | T2040322 Oil seal | Oil seal | 2 | $21.36 | Available to order | 2 |
| 15 | 2040077-T0301 Washer | Washer | 2 | $3.74 | Obsolete | View Details |
| 16 | T2045085 Slider | Slider | 2 | $14.73 | Available to order | 2 |
| 17 | T2040316 Tube outer | Tube outer LH | 1 | $474.45 | Obsolete | View Details |
| 18 | T2040315 Tube outer | Tube outer RH | 1 | $528.14 | Out of Stock | Notify Me |
| 19 | 2040074-T0301 Sealing washer | Sealing washer | 2 | $1.13 | Available to order | 2 |
| 20 | 2040075-T0301 Capscrew | Capscrew PART NO LONGER AVAILABLE | 2 | $19.42 | Obsolete | View Details |
| 21 | T3050133 Capscrew | Capscrew | 2 | $4.55 | Backorder — Early October 2026 | 2 |
| 22 | T2044420 Yoke assembly | Yoke assembly Lower | 1 | $362.07 | Obsolete | View Details |
| 23 | T3800047 Bearing taper roller | Bearing taper roller | 1 | $98.72 | Available to order | 1 |
| 24 | T2040241 Adjuster nut | Adjuster nut Lower | 1 | $14.23 | Out of Stock | Notify Me |
| 25 | T2140210 Adjuster Nut, Upper | Adjuster Nut, Upper | 1 | $3.39 | Available to order | 1 |
| 26 | T2044410 Yoke assembly | Yoke assembly Upper | 1 | $290.47 | Available to order | 1 |
| 27 | T3050132 Screw, Skt Hd, Ss | Screw, Skt Hd, Ss | 2 | $3.50 | Available to order | 2 |
| 28 | T2040061 Washer Upper Yoke | Washer Upper Yoke | 1 | $7.14 | Available to order | 1 |
| 29 | T2040060 Nut | Nut | 1 | $24.83 | Available to order | 1 |
| 30 | T3700025 Cable clip | Cable clip | 2 | $2.10 | Available to order | 2 |
| 31 | T3700062 Fir Tree Clip | Fir Tree Clip | 1 | $2.95 | Available to order | 1 |
| 32 | T2042943 Shroud, Fork, LH | Shroud, Fork, LH | 1 | $42.57 | Backorder — Mid August 2026 | 1 |
| 33 | T2042944 Shroud, Fork, RH | Shroud, Fork, RH | 1 | $42.57 | Available to order | 1 |
| 34 | T3330706 Bolt, Rhhf, Lightened, M6 X 18 | Bolt, Rhhf, Lightened, M6 X 18 | 2 | $1.69 | Obsolete | View Details |
| 35 | T3350028 Nut | Nut | 2 | $2.39 | Obsolete | View Details |
| 36 | T2701237 Kit, Reflector, Amber | Kit, Reflector, Amber Kit Contains 2 Reflectors - Amber US & CA, All Vins SG, » 110499 | 1 | $28.41 | Out of Stock | Notify Me |
| 37 | A9910053 Capscrew | Capscrew | 4 | $1.15 | Obsolete | View Details |
