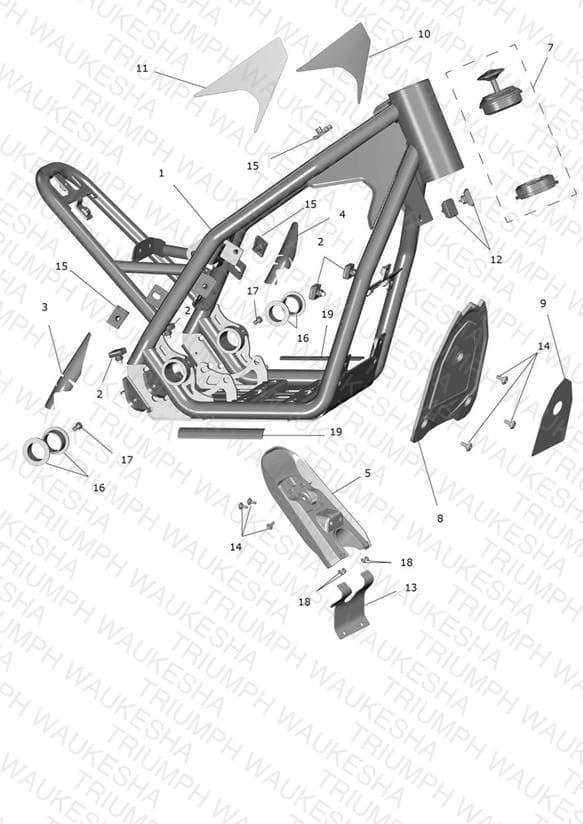

Main Frame Assembly
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2077411 Frame, TE-12, Pntd, Yel | Frame, TE-12, Pntd, Yel | 1 | $329.60 | Available to order | 1 |
| 2 | T2074179 Bump Stop, Rubber, 2Mm,Blk | Bump Stop, Rubber, 2Mm,Blk | 4 | $5.60 | Available to order | 4 |
| 3 | T2074282 Protct Decal, TXP-12, Frm, Rhs | Protct Decal, TXP-12, Frm, Rhs | 1 | $1.97 | Available to order | 1 |
| 4 | T2074283 Protct Decal, TXP-12. Frm, Lhs | Protct Decal, TXP-12. Frm, Lhs | 1 | $1.97 | Available to order | 1 |
| 5 | T2074336 SGuard, Rr, Smalll, Mldg, Blk | SGuard, Rr, Smalll, Mldg, Blk | 1 | $5.64 | Available to order | 1 |
| 7 | T2074656 Headset, HSC, ZS44, Alu, Blk | Headset, HSC, ZS44, Alu, Blk | 1 | $29.24 | Available to order | 1 |
| 8 | T2075490 SGuard, Fr, TE-12, Mldg, Blk | SGuard, Fr, TE-12, Mldg, Blk | 1 | $6.23 | Available to order | 1 |
| 9 | T2075652 Decal, Tri TXP-12, Fr Splash | Decal, Tri TXP-12, Fr Splash | 1 | $8.22 | Available to order | 1 |
| 10 | T2075657 Decal, Tri TXP-12 , Infill, Lhs | Decal, Tri TXP-12 , Infill, Lhs | 1 | $8.22 | Available to order | 1 |
| 11 | T2075658 Decal, Tri TXP-12, Infill, Rhs | Decal, Tri TXP-12, Infill, Rhs | 1 | $8.22 | Available to order | 1 |
| 12 | T2074178 Bump Stop, Rubber, 3Mm,Blk | Bump Stop, Rubber, 3Mm,Blk | 2 | $5.50 | Available to order | 2 |
| 13 | T2077922 SGuard, Rr, Rubber, XS | SGuard, Rr, Rubber, XS | 1 | $2.90 | Available to order | 1 |
| 14 | T3331078 Bolt, But/Hd, M5 x 14, Shld, Slv | Bolt, But/Hd, M5 x 14, Shld, Slv | 6 | $9.21 | Available to order | 6 |
| 15 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 5 | $2.63 | Available to order | 5 |
| 16 | TOS30001 Bearing, Plain, 23X20X11Mm | Bearing, Plain, 23X20X11Mm | 4 | $5.67 | Available to order | 4 |
| 17 | TOS30002 Bolt, M4X6Mm, Cap, 10.9, Blk | Bolt, M4X6Mm, Cap, 10.9, Blk | 2 | $0.95 | Available to order | 2 |
| 18 | TOS30067 Starlock Washer, 3Mm, ZP | Starlock Washer, 3Mm, ZP | 4 | $11.59 | Available to order | 4 |
| 19 | T2075967 Protect Decal, Batt Tray, SML | Protect Decal, Batt Tray, SML | 2 | $3.24 | Out of Stock | Notify Me |
