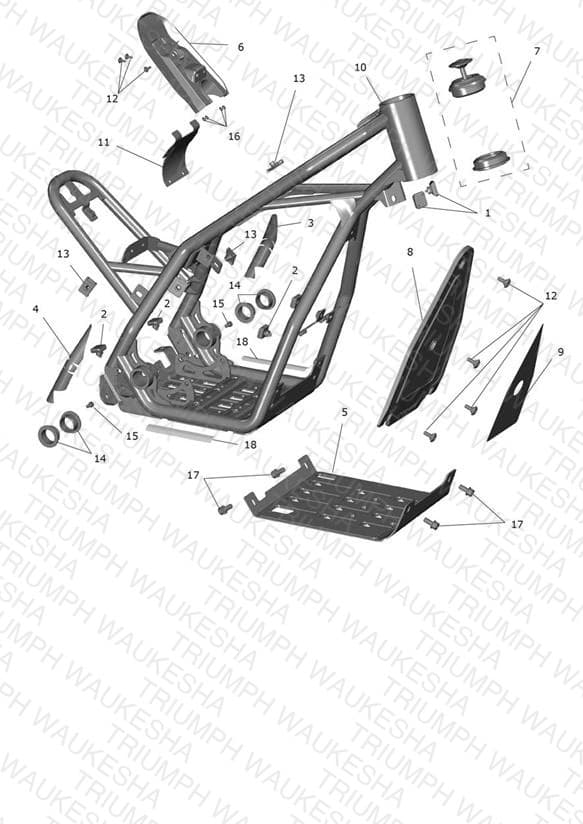

Main Frame Assembly
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074178 Bump Stop, Rubber, 3Mm,Blk | Bump Stop, Rubber, 3Mm,Blk | 2 | $5.50 | Available to order | 2 |
| 2 | T2074179 Bump Stop, Rubber, 2Mm,Blk | Bump Stop, Rubber, 2Mm,Blk | 4 | $5.60 | Available to order | 4 |
| 3 | T2074273 Protect Decal, TXP-16, FRM, Rhs | Protect Decal, TXP-16, FRM, Rhs | 1 | $1.91 | Available to order | 1 |
| 4 | T2074274 Protct Decal, TXP-16, FRM, Lhs | Protct Decal, TXP-16, FRM, Lhs | 1 | $2.08 | Available to order | 1 |
| 5 | T2074291 Sump Guard, SML, w Rubber Pad | Sump Guard, SML, w Rubber Pad | 1 | $19.51 | Available to order | 1 |
| 6 | T2074336 SGuard, Rr, Smalll, Mldg, Blk | SGuard, Rr, Smalll, Mldg, Blk | 1 | $5.64 | Available to order | 1 |
| 7 | T2074656 Headset, HSC, ZS44, Alu, Blk | Headset, HSC, ZS44, Alu, Blk | 1 | $29.24 | Available to order | 1 |
| 8 | T2075491 SGuard, Fr, TE-16, Mldg, Blk | SGuard, Fr, TE-16, Mldg, Blk | 1 | $6.23 | Available to order | 1 |
| 9 | T2075653 Decal, Tri TXP-16, Fr, Splash | Decal, Tri TXP-16, Fr, Splash | 1 | $8.22 | Available to order | 1 |
| 10 | T2077412 Frame, TE-16, Pntd, Yel | Frame, TE-16, Pntd, Yel | 1 | $359.35 | Available to order | 1 |
| 11 | T2077924 SGuard, Rr, Rubber SML | SGuard, Rr, Rubber SML | 1 | $3.60 | Available to order | 1 |
| 12 | T3331078 Bolt, But/Hd, M5 x 14, Shld, Slv | Bolt, But/Hd, M5 x 14, Shld, Slv | 7 | $9.21 | Available to order | 7 |
| 13 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 5 | $2.63 | Available to order | 5 |
| 14 | TOS30001 Bearing, Plain, 23X20X11Mm | Bearing, Plain, 23X20X11Mm | 4 | $5.67 | Available to order | 4 |
| 15 | TOS30002 Bolt, M4X6Mm, Cap, 10.9, Blk | Bolt, M4X6Mm, Cap, 10.9, Blk | 2 | $0.95 | Available to order | 2 |
| 16 | TOS30067 Starlock Washer, 3Mm, ZP | Starlock Washer, 3Mm, ZP | 4 | $11.59 | Available to order | 4 |
| 17 | TOS30069 Bolt,M6X14Mm,Cap+Wash,10.9,Blk | Bolt,M6X14Mm,Cap+Wash,10.9,Blk | 4 | $1.76 | Out of Stock | Notify Me |
| 18 | T2075967 Protect Decal, Batt Tray, SML | Protect Decal, Batt Tray, SML | 2 | $3.24 | Out of Stock | Notify Me |
