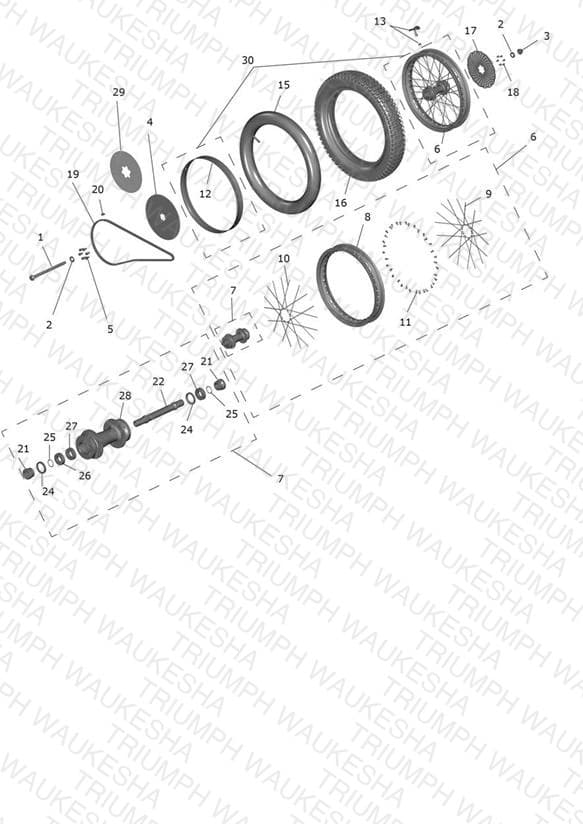

Rear Wheel
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2012029 Axle, Rear, 12X210Mm, Alu, Blk | Axle, Rear, 12X210Mm, Alu, Blk | 1 | $27.00 | Available to order | 1 |
| 2 | TOS30014 Washer Cup, Rr Axle, M12, Blk | Washer Cup, Rr Axle, M12, Blk | 2 | $6.59 | Available to order | 2 |
| 3 | TOS30015 Nut,Axle,M12X1.50,Flgd,Alu,Blk | Nut,Axle,M12X1.50,Flgd,Alu,Blk | 1 | $8.74 | Available to order | 1 |
| 4 | T2011262 Rear Sprocket,86T, Alu, Black | Rear Sprocket,86T, Alu, Black | 1 | $44.87 | Available to order | 1 |
| 5 | TOS30005 Bolt,M6X16Mm,Cap+Wash,10.9,Blk | Bolt,M6X16Mm,Cap+Wash,10.9,Blk | 6 | $1.24 | Available to order | 6 |
| 6 | T2014320 Rear Wheel, 14'' Mc, Black | Rear Wheel, 14'' Mc, Black | 1 | $243.94 | Out of Stock | Notify Me |
| 7 | T2011243 Hub, Rear, 12X152Mm, Alu, Blk | Hub, Rear, 12X152Mm, Alu, Blk | 1 | $110.50 | Out of Stock | Notify Me |
| 8 | T2014319 Rim, 14X1.6'' Mc, 36H, Black | Rim, 14X1.6'' Mc, 36H, Black | 1 | $110.50 | Out of Stock | Notify Me |
| 9 | T2011327 Spoke, 12G X 148Mm, Black | Spoke, 12G X 148Mm, Black | 18 | $2.15 | Available to order | 18 |
| 10 | T2011324 Spoke, 12G X 150Mm, Black | Spoke, 12G X 150Mm, Black | 18 | $2.15 | Available to order | 18 |
| 11 | T2009933 Nipple, 12G X 13Mm, Chrome | Nipple, 12G X 13Mm, Chrome | 36 | $1.07 | Available to order | 36 |
| 12 | T2014316 Rim Tape, 14''X45Mm, Mc | Rim Tape, 14''X45Mm, Mc | 1 | $3.69 | Out of Stock | Notify Me |
| 13 | T2000876 Rim Lock, 1.4-1.6'' Rims | Rim Lock, 1.4-1.6'' Rims | 1 | $20.61 | Available to order | 1 |
| 15 | T2011264 Tube, 14X3.0'' Mc | Tube, 14X3.0'' Mc | 1 | $19.04 | Available to order | 1 |
| 16 | T2011263 Tyre R, Mega Gripper, 14X3.25'' | Tyre R, Mega Gripper, 14X3.25'' | 1 | $72.61 | Available to order | 1 |
| 17 | T2022745 Brk Rotor, Solid, 180Mm | Brk Rotor, Solid, 180Mm | 1 | $21.84 | Available to order | 1 |
| 18 | TOS30013 Bolt, M5X10Mm, Torx, 10.9, Blk | Bolt, M5X10Mm, Torx, 10.9, Blk | 6 | $1.15 | Available to order | 6 |
| 19 | T2014075 Chain, #219, 12Mm, 154 Links, Gold | Chain, #219, 12Mm, 154 Links, Gold | 1 | $44.96 | Available to order | 1 |
| 20 | T2014076 Masterlink, #219, 12Mm, Gold | Masterlink, #219, 12Mm, Gold | 1 | $14.00 | Available to order | 1 |
| 21 | T2011294 Hub Spacer, Rear, Alu, Blk | Hub Spacer, Rear, Alu, Blk | 1 | $14.56 | Available to order | 1 |
| 22 | T2011291 Axle, Rr, Bearing, 12 X 151Mm, Alu, Blk | Axle, Rr, Bearing, 12 X 151Mm, Alu, Blk | 2 | $60.06 | Available to order | 2 |
| 24 | T2011288 Axial Seal, 22X28X4Mm, HM1 R | Axial Seal, 22X28X4Mm, HM1 R | 2 | $21.00 | Available to order | 2 |
| 25 | TOS30025 O-Ring, 15X1.5Mm | O-Ring, 15X1.5Mm | 2 | $0.09 | Available to order | 2 |
| 26 | T2011257 Bearing RS, 15X28X7Mm | Bearing RS, 15X28X7Mm | 1 | $10.49 | Available to order | 1 |
| 27 | T2011510 Bearing, RS, 15X28X7Mm | Bearing, RS, 15X28X7Mm | 2 | $10.49 | Available to order | 2 |
| 28 | T2012057 Hub Shell, Rr, 152Mm, Alu, Blk | Hub Shell, Rr, 152Mm, Alu, Blk | 1 | — | Unavailable | View Details |
| 29 | T2011498 Decal, Tri TXP-20, Rr Sprocket | Decal, Tri TXP-20, Rr Sprocket | 1 | $12.12 | Out of Stock | Notify Me |
| 30 | T2011376 Rr Wheel & Rim Tape 14X1.6" | Rr Wheel & Rim Tape 14X1.6" | 1 | $244.33 | Available to order | 1 |
