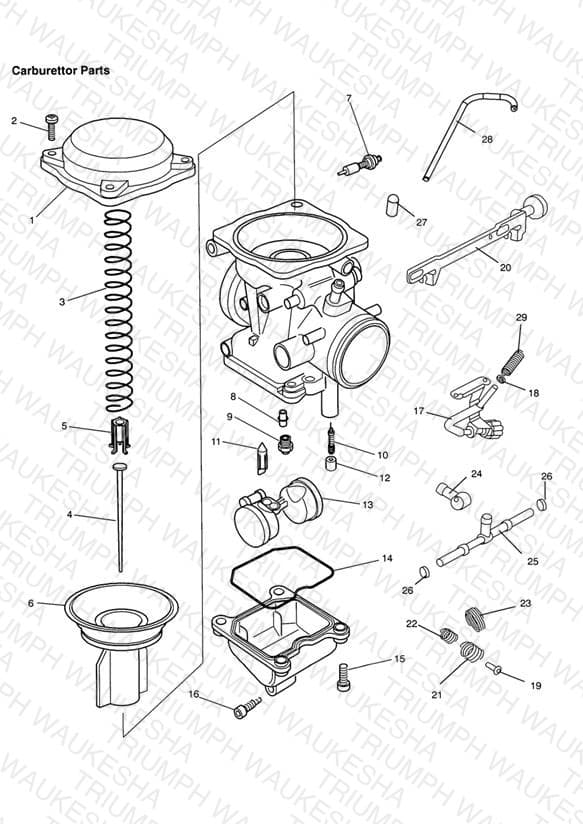

Triumph America Carburettor Parts — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What riders say about Triumph Waukesha

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T1241070 Cover, Diaphragm	Cover, Diaphragm	2	$34.71	Available to order	2 Ships within 3–7 business days
2	T1241071 Screw, Diaphragm	Screw, Diaphragm	8	$1.73	Available to order	8 Ships within 3–7 business days
3	T1241072 Spring, Vacuum Piston	Spring, Vacuum Piston	2	$10.52	Available to order	2 Ships within 3–7 business days
4	T1242715 Needle	Needle N3RF	2	$13.94	Available to order	2 Ships within 3–7 business days
5	T1241023 Seat, Piston Spring	Seat, Piston Spring	2	$11.54	Available to order	2 Ships within 3–7 business days
6	T1241019 Vacuum Piston, 3mm Hole	Vacuum Piston, 3mm Hole	2	$97.02	Available to order	2 Ships within 3–7 business days
7	T1241074 Kit, Choke Valve	Kit, Choke Valve	2	$25.82	Available to order	2 Ships within 3–7 business days
8	T1241025 Needle jet	Needle jet	2	$13.94	Available to order	2 Ships within 3–7 business days
9	T1242716 Main Jet	Main Jet	2	$13.31	Available to order	2 Ships within 3–7 business days
10	T1241079 Kit, PILOT SCREW	Kit, PILOT SCREW	2	$45.62	Available to order	2 Ships within 3–7 business days
11	T1241077 Kit, Float Valve	Kit, Float Valve	2	$34.12	Available to order	2 Ships within 3–7 business days
12	T1240955 Plug, Pilot Screw	Plug, Pilot Screw US & TW ONLY	2	$3.37	Available to order	2 Ships within 3–7 business days
13	T1241078 Kit, Float	Kit, Float	2	$72.75	Available to order	2 Ships within 3–7 business days
14	T1241036 Seal, Float Bowl	Seal, Float Bowl	2	$11.84	Available to order	2 Ships within 3–7 business days
15	T1241035 Screw, Float Bowl	Screw, Float Bowl	8	$1.73	Available to order	8 Ships within 3–7 business days
16	T1241034 Screw, Float Chamber Drain	Screw, Float Chamber Drain	2	$5.24	Available to order	2 Ships within 3–7 business days
17	T1240131 Stop screw	Stop screw	1	$28.50	Available to order	1 Ships within 3–7 business days
18	T1240132 Washer	Washer	1	$1.50	Available to order	1 Ships within 3–7 business days
19	T1241009 Screw, Carb Sync	Screw, Carb Sync	1	$1.73	Available to order	1 Ships within 3–7 business days
20	T1240133 Lever	Lever	1	$68.21	Available to order	1 Ships within 3–7 business days
21	T1241010 Spring	Spring	1	$1.73	Available to order	1 Ships within 3–7 business days
22	T1241011 Spring	Spring	1	$3.14	Available to order	1 Ships within 3–7 business days
23	T1245518 Spring, Throttle, 1 to 2, Large	Spring, Throttle, 1 to 2, Large * PART NO LONGER AVAILABLE *	1	$3.09	Obsolete	View Details
24	T1240144 T-FITTING	T-FITTING	1	$29.83	Available to order	1 Ships within 3–7 business days
25	T1240157 T-FITTING	T-FITTING	1	$16.84	Available to order	1 Ships within 3–7 business days
26	T1240158 U-RING	U-RING	2	$1.29	Available to order	2 Ships within 3–7 business days
27	T1241012 Cap, Vacuum Connection	Cap, Vacuum Connection	2	$3.14	Available to order	2 Ships within 3–7 business days
28	T1240161 Rubber tube	Rubber tube	1	$4.65	Available to order	1 Ships within 3–7 business days
29	T1240162 Spring, Idle Adjuster	Spring, Idle Adjuster	1	$4.65	Available to order	1 Ships within 3–7 business days
