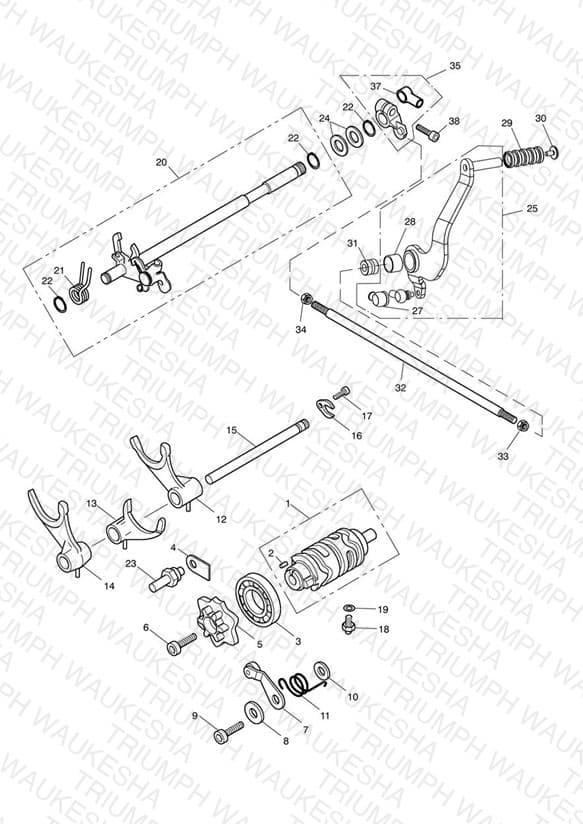

Gear Selectors & Pedal 468391 >
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1190909 Selector Drum Assembly | Selector Drum Assembly | 1 | $348.52 | Available to order | 1 |
| 2 | T3000009 Dowel | Dowel | 1 | $0.01 | Obsolete | View Details |
| 3 | T3800090 Bearing Ball, Unshld, 20x42x8 | Bearing Ball, Unshld, 20x42x8 | 1 | $7.62 | Available to order | 1 |
| 4 | T1190926 Plate retaining | Plate retaining | 1 | $3.70 | Backorder — Late August 2026 | 1 |
| 5 | T1190915 Detent wheel | Detent wheel | 1 | $37.72 | Available to order | 1 |
| 6 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 7 | T1190169 Detent Arm Assy | Detent Arm Assy | 1 | $21.75 | Available to order | 1 |
| 8 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 | 1 | $3.04 | Available to order | 1 |
| 9 | T3051058 Screw, Cap/HD, M6 x 20, Enc | Screw, Cap/HD, M6 x 20, Enc | 1 | $1.13 | Available to order | 1 |
| 10 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 1 | $2.00 | Backorder — Late August 2026 | 1 |
| 11 | T1190923 Spring, Detent Arm | Spring, Detent Arm | 1 | $4.19 | Available to order | 1 |
| 12 | T1191002 Fork, C, Selector, Output | Fork, C, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 13 | T1191001 Selector fork | Selector fork | 1 | $96.97 | Available to order | 1 |
| 14 | T1191000 Fork, A, Selector, Output | Fork, A, Selector, Output | 1 | $96.97 | Available to order | 1 |
| 15 | T1190069 Shaft, Selector, Gearbox | Shaft, Selector, Gearbox | 1 | $38.56 | Available to order | 1 |
| 16 | T1190101 Keeper Plate, Selector Shaft | Keeper Plate, Selector Shaft | 1 | $5.14 | Available to order | 1 |
| 17 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 18 | T1190282 Neutral Switch | Neutral Switch | 1 | $39.24 | Available to order | 1 |
| 19 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 20 | T1190083 Assy, Gearchange Mechanism | Assy, Gearchange Mechanism | 1 | $146.35 | Available to order | 1 |
| 21 | T1190041 Spring, Gearchange Return | Spring, Gearchange Return | 1 | $3.61 | Obsolete | View Details |
| 22 | T3500044 E Circlip | E Circlip | 3 | $0.97 | Available to order | 3 |
| 23 | T1191143 Pin, Spring Abutment | Pin, Spring Abutment | 1 | $9.88 | Available to order | 1 |
| 24 | T3550236 Washer, 14 x 20 x 1.6 | Washer, 14 x 20 x 1.6 | 2 | $2.95 | Available to order | 2 |
| 25 | T2085051 Gearchange Pedal Assy | Gearchange Pedal Assy | 1 | $117.87 | Available to order | 1 |
| 26 | T2085020 Ball Joint | Ball Joint | 1 | $19.73 | Obsolete | View Details |
| 27 | T2085422 Boot, Ball Joint | Boot, Ball Joint | 1 | $25.96 | Available to order | 1 |
| 28 | T3750006 Bush | Bush | 1 | $10.18 | Available to order | 1 |
| 29 | T2026182 Rubber, Gear Pedal | Rubber, Gear Pedal | 1 | $10.81 | Available to order | 1 |
| 30 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 1 | $4.42 | Available to order | 1 |
| 31 | T2080997 Boss, Pedal | Boss, Pedal | 1 | $19.21 | Available to order | 1 |
| 32 | T2085058 Rod, Gearchange | Rod, Gearchange | 1 | $29.37 | Available to order | 1 |
| 33 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 34 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 1 | $1.51 | Available to order | 1 |
| 35 | T2080045 Linkage Clamp Assembly | Linkage Clamp Assembly | 1 | $95.96 | Out of Stock | Notify Me |
| 37 | T2085022 Boot, Ball Joint | Boot, Ball Joint | 1 | $7.92 | Obsolete | View Details |
| 38 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.51 | Available to order | 1 |
