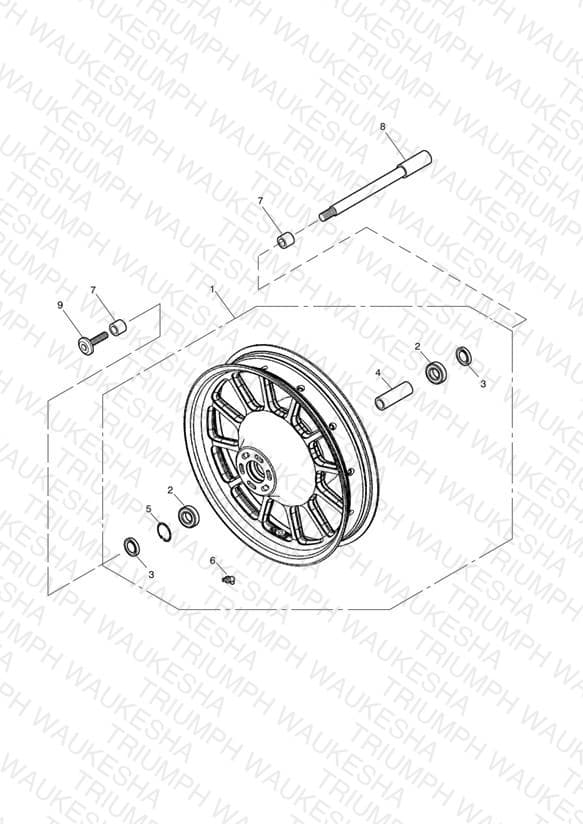

Front Wheel 468391 >
Parts (9)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000358 Wheel Assembly, Front, 16 x 3.0 | Wheel Assembly, Front, 16 x 3.0 | 1 | $1012.21 | Out of Stock | Notify Me |
| 2 | T3800704 Bearing, Ball, 25 47 12 | Bearing, Ball, 25 47 12 | 2 | $43.81 | Available to order | 2 |
| 3 | T3600705 Oil Seal, 35 47 6 | Oil Seal, 35 47 6 | 2 | $9.10 | Available to order | 2 |
| 4 | T2003532 Spacer, Internal, Front Wheel | Spacer, Internal, Front Wheel | 1 | $43.64 | Available to order | 1 |
| 5 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 6 | T2006615 Valve Assy, aluminium, 90, Slv | Valve Assy, aluminium, 90, Slv | 1 | $16.04 | Available to order | 1 |
| 7 | T2005204 Spacer | Spacer | 2 | $11.88 | Available to order | 2 |
| 8 | T2005552 Spindle, Front Wheel | Spindle, Front Wheel | 1 | $70.35 | Available to order | 1 |
| 9 | T2001078 Bolt, Front Spindle, Slv | Bolt, Front Spindle, Slv | 1 | $19.47 | Out of Stock | Notify Me |
