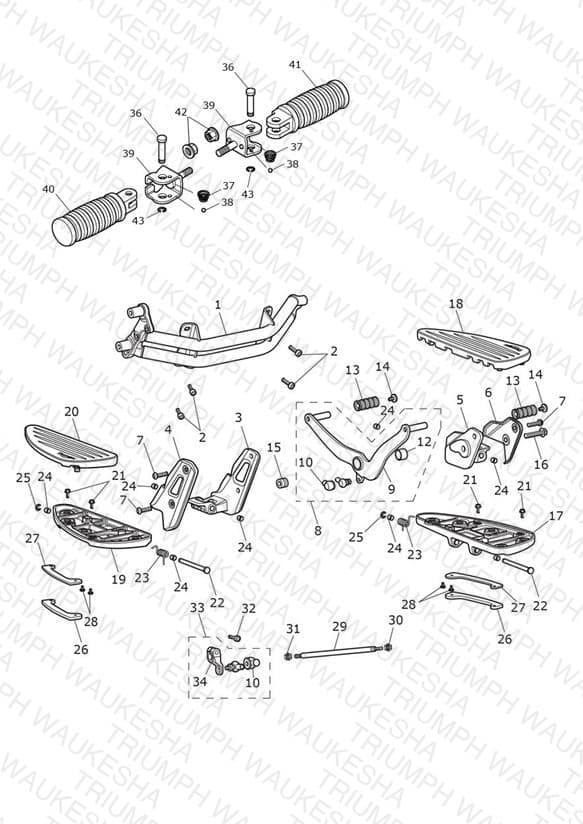

Footrests & Mountings 611135 > (inc 611105)
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2085076 Foot Control Hanger Assy | Foot Control Hanger Assy | 1 | $183.07 | Backorder — Mid October 2026 | 1 |
| 2 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.90 | Available to order | 4 |
| 3 | T2089630 Bracket, Footboard, RH | Bracket, Footboard, RH | 1 | $100.45 | Available to order | 1 |
| 4 | T2089631 Cover, Footboard Bracket, RH | Cover, Footboard Bracket, RH | 1 | $41.16 | Available to order | 1 |
| 5 | T2089632 Bracket, Footboard, LH | Bracket, Footboard, LH | 1 | $94.99 | Available to order | 1 |
| 6 | T2089633 Cover, Footboard Bracket, LH | Cover, Footboard Bracket, LH | 1 | $17.30 | Available to order | 1 |
| 7 | T3331022 Screw, M8 x 30, S/S | Screw, M8 x 30, S/S | 3 | $12.75 | Out of Stock | Notify Me |
| 8 | T2089770 Gear Pedal Kit | Gear Pedal Kit | 1 | $148.72 | Backorder — Early October 2026 | 1 |
| 9 | T2089635 Gear Pedal | Gear Pedal | 1 | $132.83 | Available to order | 1 |
| 10 | T2085022 Boot, Ball Joint | Boot, Ball Joint | 2 | $9.11 | Obsolete | View Details |
| 12 | T3750017 Bush | Bush | 1 | $9.18 | Available to order | 1 |
| 13 | T2026182 Rubber, Gear Pedal | Rubber, Gear Pedal | 2 | $11.21 | Available to order | 2 |
| 14 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.70 | Available to order | 2 |
| 15 | T2080997 Boss, Pedal | Boss, Pedal | 1 | $19.92 | Available to order | 1 |
| 16 | T3205825 Bolt, HHF, Lghtd, M10 x 45, Slv | Bolt, HHF, Lghtd, M10 x 45, Slv | 1 | $7.28 | Available to order | 1 |
| 17 | T2084049 Casting, Footboard, LHf, Chrome | Casting, Footboard, LHf, Chrome | 1 | $159.27 | Available to order | 1 |
| 18 | T2083044 Rubber, Footboard, LHf | Rubber, Footboard, LHf | 1 | $46.76 | Available to order | 1 |
| 19 | T2084029 Casting, Footboard, RHf, Chrome | Casting, Footboard, RHf, Chrome | 1 | $159.27 | Available to order | 1 |
| 20 | T2083042 Rubber, Footboard, RHf | Rubber, Footboard, RHf | 1 | $46.76 | Out of Stock | Notify Me |
| 21 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 4 | $7.18 | Available to order | 4 |
| 22 | T2083017 Pivot Pin | Pivot Pin | 2 | $18.42 | Available to order | 2 |
| 23 | T2083068 Spring, Footboard, Return | Spring, Footboard, Return | 2 | $6.81 | Available to order | 2 |
| 24 | T3750022 Bush, 8 x 10 x 8, Zero Tol | Bush, 8 x 10 x 8, Zero Tol | 8 | $13.01 | Available to order | 8 |
| 25 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 2 | $3.04 | Available to order | 2 |
| 26 | T2080753 Bank Angle Indicator | Bank Angle Indicator | 2 | $22.67 | Available to order | 2 |
| 27 | T2083069 Spacer, Bank Angle Indicator | Spacer, Bank Angle Indicator | 2 | $24.84 | Out of Stock | Notify Me |
| 28 | T3450263 Foot, Rubber, 9mm, Black | Foot, Rubber, 9mm, Black | 4 | $12.22 | Available to order | 4 |
| 29 | T2085058 Rod, Gearchange | Rod, Gearchange | 1 | $29.38 | Available to order | 1 |
| 30 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $1.00 | Available to order | 1 |
| 31 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 1 | $1.61 | Available to order | 1 |
| 32 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 1 | $1.61 | Available to order | 1 |
| 33 | T2080045 Linkage Clamp Assembly | Linkage Clamp Assembly | 1 | $94.18 | Available to order | 1 |
| 34 | T2081177 Clamp, Linkage | Clamp, Linkage | 1 | $63.42 | Available to order | 1 |
| 36 | T2080721 Pivot Pin, Footrest | Pivot Pin, Footrest | 2 | $6.88 | Available to order | 2 |
| 37 | T2080724 Spring, Footrest (Rear) | Spring, Footrest (Rear) | 2 | $2.24 | Available to order | 2 |
| 38 | T2080725 Detent Ball | Detent Ball | 2 | $1.84 | Available to order | 2 |
| 39 | T2070806 Clevis Assemby, Footrest | Clevis Assemby, Footrest | 2 | $37.18 | Available to order | 2 |
| 40 | T2081044 Footrest, RH, Rear | Footrest, RH, Rear Logo Footrest | 1 | $113.51 | Available to order | 1 |
| 41 | T2081043 Footrest, LH, Rear | Footrest, LH, Rear Logo Footrest | 1 | $113.51 | Available to order | 1 |
| 42 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.61 | Available to order | 2 |
| 43 | T3500210 Circlip, Ext, 8 x 1 | Circlip, Ext, 8 x 1 | 2 | $2.29 | Available to order | 2 |
