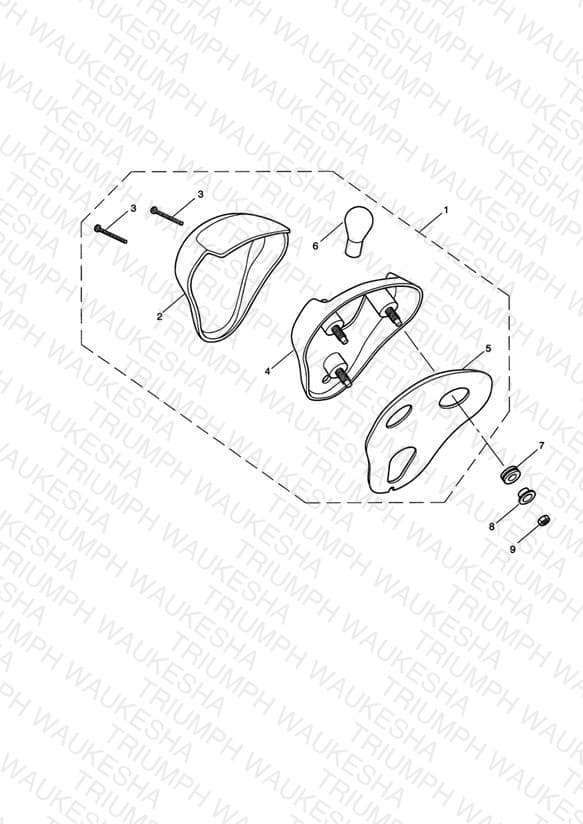

Rear Light
Parts (10)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2700316 Tail Lamp Assy, ECE | Tail Lamp Assy, ECE | 1 | $188.23 | Unavailable | 1 |
| 1 | T2700317 Tail Lamp Assy, SAE | Tail Lamp Assy, SAE US, CA | 1 | $188.23 | Available to order | 1 |
| 2 | T2700318 Lens, Tail Lamp | Lens, Tail Lamp | 1 | $54.20 | Available to order | 1 |
| 3 | T2700349 Screw, Tail Lamp | Screw, Tail Lamp | 2 | $4.92 | Available to order | 2 |
| 4 | T2700327 Base, Rear Light | Base, Rear Light | 1 | $36.33 | Available to order | 1 |
| 5 | T2700326 Rubber mat | Rubber mat | 1 | $22.25 | Available to order | 1 |
| 6 | 2700054-T0301 Bulb, 12v 21w/5w | Bulb, 12v 21w/5w | 1 | $6.65 | Available to order | 1 |
| 7 | T3020082 Grommet, 18 x 1 x 9 | Grommet, 18 x 1 x 9 | 3 | $6.77 | Available to order | 3 |
| 8 | T3010707 Sleeve, Flanged, 6.4 x 10 x 6.5 | Sleeve, Flanged, 6.4 x 10 x 6.5 | 3 | $3.59 | Available to order | 3 |
| 9 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 3 | $0.67 | Available to order | 3 |
