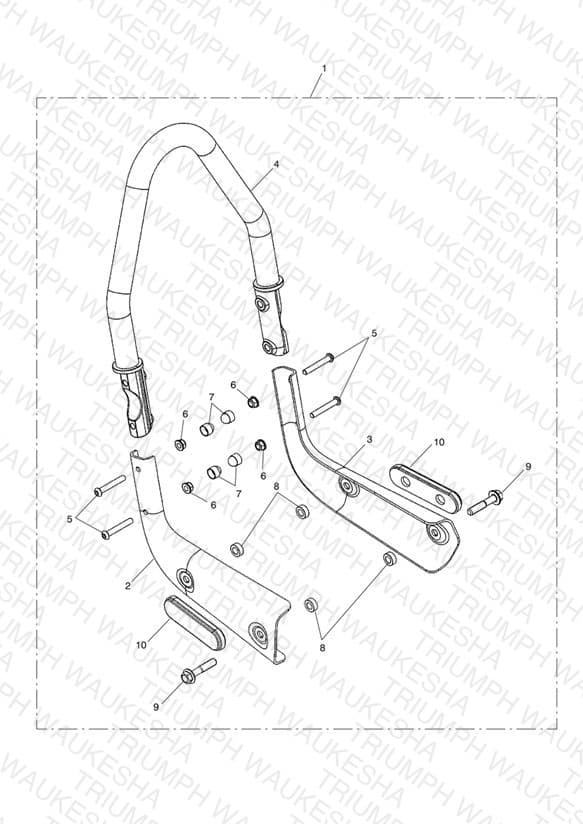

Passenger Backrest Kit
Parts (11)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9758149 Passenger Backrest Kit | Passenger Backrest Kit | 1 | $340.00 | Obsolete | View Details |
| 2 | A9750682 Bracket, Passenger Backrest, RHS | Bracket, Passenger Backrest, RHS | 1 | $38.00 | Unavailable | View Details |
| 3 | A9750683 Bracket, Passenger Backrest, LHS | Bracket, Passenger Backrest, LHS | 1 | $38.00 | Unavailable | View Details |
| 4 | A9750679 Bar, Passenger Backrest Replaced by T2302392 — Bar, Backrest Bar | Bar, Passenger Backrest | 1 | $109.00 | Unavailable | View Details |
| 5 | A9910863 Bolt, But/Hd, M6 x 40, Slv | Bolt, But/Hd, M6 x 40, Slv | 4 | $2.70 | Available to order | 4 |
| 6 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 4 | $0.67 | Available to order | 4 |
| 7 | T3450124 Cap | Cap | 4 | $5.60 | Available to order | 4 |
| 8 | A9910864 Shim, 8.5 x 14.8 x 6 | Shim, 8.5 x 14.8 x 6 | 4 | $6.40 | Obsolete | View Details |
| 9 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 2 | $3.04 | Available to order | 2 |
| 10 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 2 | $6.14 | Available to order | 2 |
| 11 | A9930007 Cleaning Swab | Cleaning Swab | 1 | $1.62 | Available to order | 1 |
