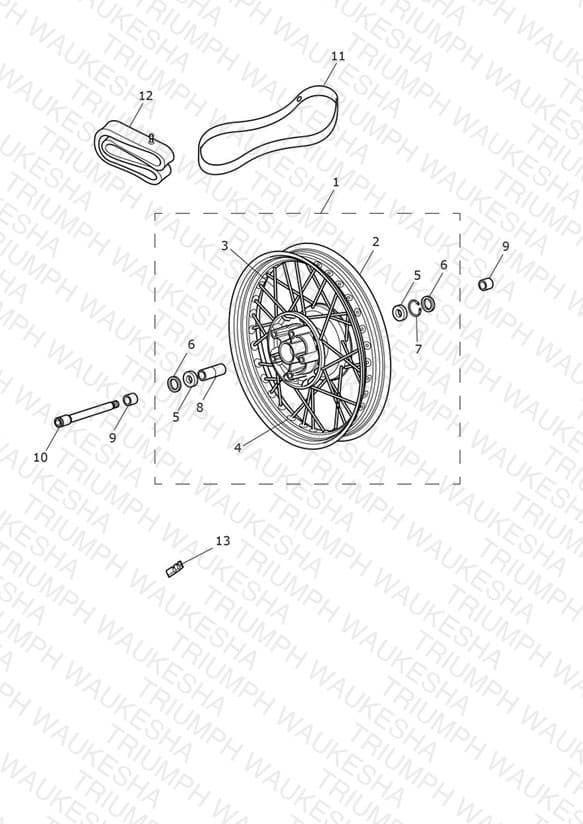

Front Wheel
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2000709 Front Wheel Assembly, 16 x 2.5, Blk | Front Wheel Assembly, 16 x 2.5, Blk | 1 | $1003.41 | Backorder — Late August 2026 | 1 |
| 2 | T2000594 Rim, Front, 16 x 2.5, Black | Rim, Front, 16 x 2.5, Black | 1 | $677.73 | Available to order | 1 |
| 3 | T2001014 Spoke, Front, 145mm | Spoke, Front, 145mm | 32 | $6.14 | Available to order | 32 |
| 4 | T2005003 Nipple, Steel, Spoke | Nipple, Steel, Spoke | 32 | $6.39 | Available to order | 32 |
| 5 | T3800702 Bearing Ball, 20 42 12 | Bearing Ball, 20 42 12 | 2 | $38.50 | Available to order | 2 |
| 6 | T3600703 Oil Seal, 30 42 6 | Oil Seal, 30 42 6 | 2 | $12.38 | Available to order | 2 |
| 7 | T3500401 Circlip, Int Dia 42 | Circlip, Int Dia 42 | 1 | $16.04 | Available to order | 1 |
| 8 | T2004201 Spacer, Wheel, 20 81 | Spacer, Wheel, 20 81 | 1 | $38.99 | Available to order | 1 |
| 9 | T2001422 Spacer, 30 OD, 20.2 ID | Spacer, 30 OD, 20.2 ID | 2 | $7.18 | Available to order | 2 |
| 10 | T2000703 Spindle, Front Wheel | Spindle, Front Wheel | 1 | $96.97 | Available to order | 1 |
| 11 | T2019920 Rim Band, 38mm x 15"/16" | Rim Band, 38mm x 15"/16" | 1 | $13.67 | Available to order | 1 |
| 12 | T2011743 Inner Tube, 16" | Inner Tube, 16" | 1 | $68.25 | Available to order | 1 |
| 13 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
