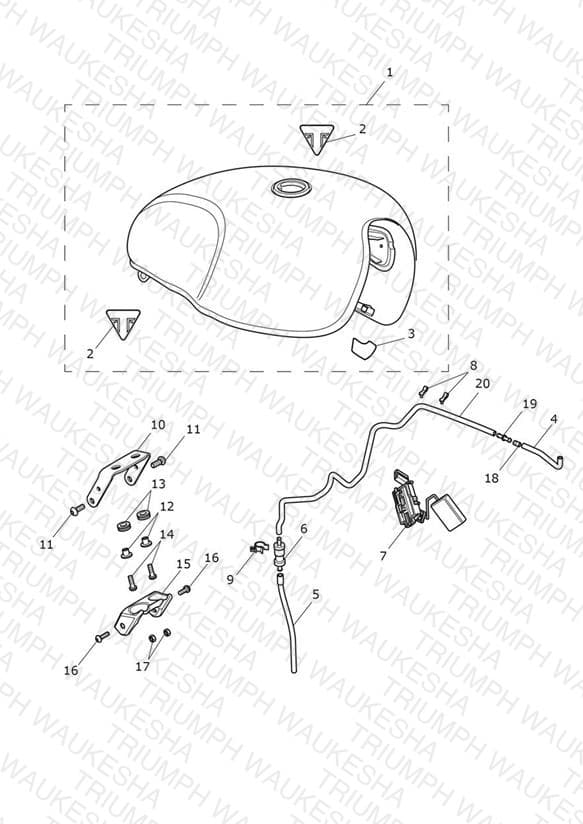

Fuel Tank - Chrome/Jet Black
← Fuel Tank - Carnival Red/Sapphire Black Bikes OnlyFuel Tank - Matt Storm Grey/Matt Ironside, Jet Black/Ash Grey & Matt Graphite/Matt Baja Orange →
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403326-PG Fuel Tank Assy, Chrome/Jet Black | Fuel Tank Assy, Chrome/Jet Black | 1 | $4264.20 | Available to order | 1 |
| 2 | T2318526 Decal, Tank Badge | Decal, Tank Badge | 2 | $8.18 | Available to order | 2 |
| 3 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 4 | T2408572 Formed Hose, Restrictor to Rollover | Formed Hose, Restrictor to Rollover | 1 | $13.33 | Available to order | 1 |
| 5 | T2408900 Formed Hose, Roll Over Drain | Formed Hose, Roll Over Drain AU, ID & NZ Only | 1 | $5.60 | Backorder — Mid August 2026 | 1 |
| 6 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 7 | T2403627 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 8 | T3700091 Clip Cable | Clip Cable | 2 | $1.13 | Available to order | 2 |
| 9 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.12 | Available to order | 1 |
| 10 | T2409056 Bracket, Rear Mount, Fuel Tank | Bracket, Rear Mount, Fuel Tank | 1 | $12.29 | Available to order | 1 |
| 11 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.62 | Available to order | 2 |
| 12 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 13 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 14 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 15 | T2408787 Rubber, Fuel Tank, Rear Mount | Rubber, Fuel Tank, Rear Mount | 1 | $30.54 | Available to order | 1 |
| 16 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 17 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
| 18 | T1210385 Check Valve | Check Valve | 1 | $40.73 | Available to order | 1 |
| 19 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 1 | $11.32 | Available to order | 1 |
| 20 | T2408565 Hose Formed, Tank to Restrictor | Hose Formed, Tank to Restrictor | 1 | $13.33 | Out of Stock | Notify Me |
