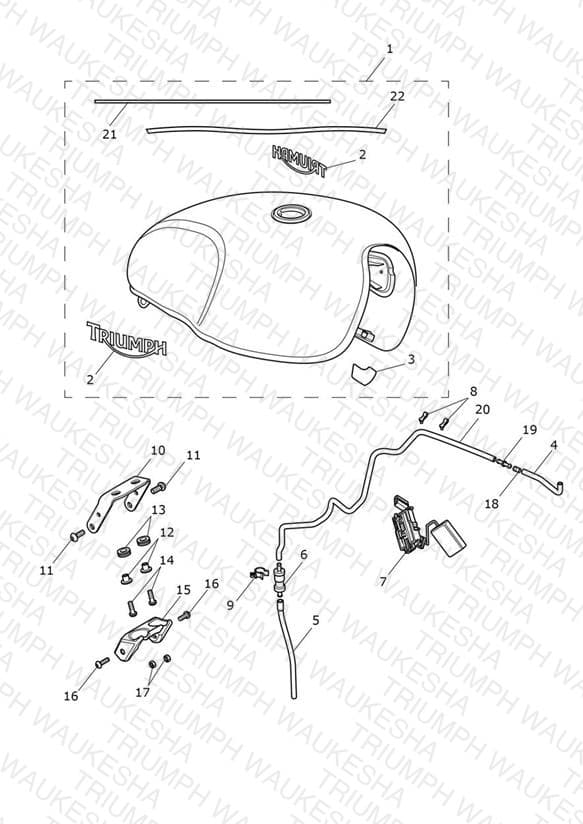

Fuel Tank - Matt Storm Grey/Matt Ironside, Jet Black/Ash Grey & Matt Graphite/Matt Baja Orange
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2405764-LZ Fuel Tank Assembly | Fuel Tank Assembly Matt Storm Grey/Matt Ironside | 1 | $2587.81 | Available to order | 1 |
| 1 | T2405764-PG Fuel Tank Assembly | Fuel Tank Assembly Jet Black/Ash Grey | 1 | $1895.85 | Available to order | 1 |
| 1 | T2401814-LS Fuel Tank Assembly | Fuel Tank Assembly Matt Graphite/Matt Baja Orange | 1 | $2959.91 | Obsolete | View Details |
| 2 | T2401564 Tank Badge, 130mm | Tank Badge, 130mm Matt Graphite/Matt Baja Orange Only | 2 | $65.62 | Available to order | 2 |
| 2 | T2401559 Tank Badge, 130mm | Tank Badge, 130mm | 2 | $65.62 | Available to order | 2 |
| 3 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 4 | T2408572 Formed Hose, Restrictor to Rollover | Formed Hose, Restrictor to Rollover | 1 | $13.33 | Available to order | 1 |
| 5 | T2408900 Formed Hose, Roll Over Drain | Formed Hose, Roll Over Drain AU, ID & NZ Only | 1 | $5.60 | Backorder — Mid August 2026 | 1 |
| 6 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 7 | T2403627 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 8 | T3700091 Clip Cable | Clip Cable | 2 | $1.13 | Available to order | 2 |
| 9 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.12 | Available to order | 1 |
| 10 | T2409056 Bracket, Rear Mount, Fuel Tank | Bracket, Rear Mount, Fuel Tank | 1 | $12.29 | Available to order | 1 |
| 11 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 2 | $1.62 | Available to order | 2 |
| 12 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 13 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 14 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
| 15 | T2408787 Rubber, Fuel Tank, Rear Mount | Rubber, Fuel Tank, Rear Mount | 1 | $30.54 | Available to order | 1 |
| 16 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 17 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
| 18 | T1210385 Check Valve | Check Valve | 1 | $40.73 | Available to order | 1 |
| 19 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 1 | $11.32 | Available to order | 1 |
| 20 | T2408565 Hose Formed, Tank to Restrictor | Hose Formed, Tank to Restrictor | 1 | $13.33 | Out of Stock | Notify Me |
| 21 | T2402698 Decal, Fuel Tank, Pinstripe | Decal, Fuel Tank, Pinstripe Matt Storm Grey/Matt Ironside Bikes | 1 | $38.99 | Backorder — Mid August 2026 | 1 |
| 21 | T2403561 Decal, Fuel Tank, Pinstripe | Decal, Fuel Tank, Pinstripe Jet Black/Ash Grey Bikes | 1 | $38.99 | Out of Stock | Notify Me |
| 21 | T2403894 Decal, Fuel Tank, Pinstripe, Graphite | Decal, Fuel Tank, Pinstripe, Graphite Matt Graphite/Matt Bajaj Orange Bikes | 1 | $45.97 | Available to order | 1 |
| 22 | T2402699 Decal, Fuel Tank, Stripe | Decal, Fuel Tank, Stripe Matt Storm Grey/Matt Ironside Bikes | 1 | $38.99 | Backorder — Mid August 2026 | 1 |
| 22 | T2403706 Decal, Fuel Tank, Stripe | Decal, Fuel Tank, Stripe Jet Black/Ash Grey Bikes | 1 | $38.99 | Out of Stock | Notify Me |
| 22 | T2403908 Decal, Fuel Tank, Stripe, Graphite | Decal, Fuel Tank, Stripe, Graphite Matt Graphite/Matt Bajaj Orange Bikes | 1 | $36.76 | Available to order | 1 |
