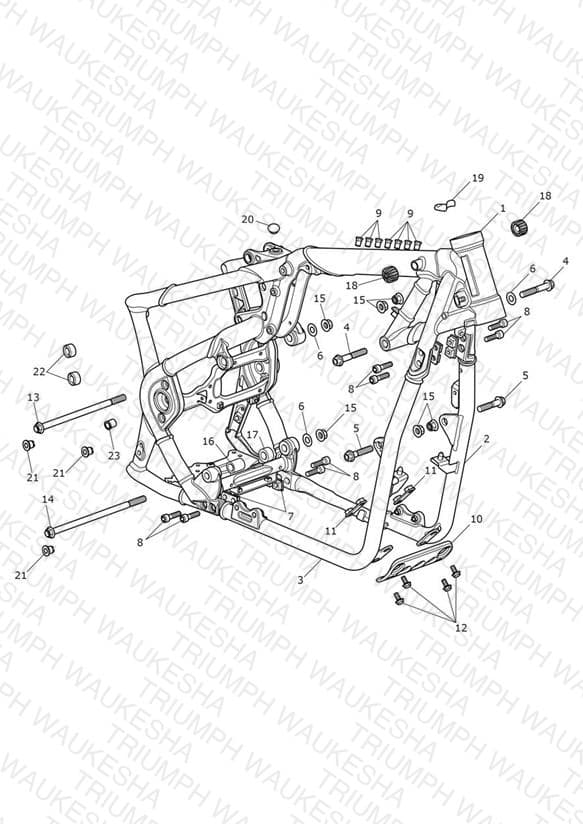

Main Frame Assembly
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2071667 Frame Assembly, CA | Frame Assembly, CA | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2071668 Frame Assembly, AU | Frame Assembly, AU | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2071681 Frame Assembly, US | Frame Assembly, US | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2071682 Frame Assembly, BR | Frame Assembly, BR | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2071683 Frame Assembly, TH | Frame Assembly, TH | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2071707 Frame Assembly, ROW | Frame Assembly, ROW | 1 | $2862.14 | Out of Stock | Notify Me |
| 1 | T2072667 Frame Assembly, CN | Frame Assembly, CN | 1 | $2862.14 | Out of Stock | Notify Me |
| 2 | T2073464 Cradle Assembly, LH, ED & Powder | Cradle Assembly, LH, ED & Powder | 1 | $271.12 | Available to order | 1 |
| 2 | T2074797 Cradle Assembly, LH, ED & Powder | Cradle Assembly, LH, ED & Powder | 1 | $260.52 | Available to order | 1 |
| 3 | T2073472 Cradle Assembly, RH, ED & Powder | Cradle Assembly, RH, ED & Powder | 1 | $260.52 | Available to order | 1 |
| 4 | T3151024 Bolt, HHF, M12 x 75, 10,9, Slv | Bolt, HHF, M12 x 75, 10,9, Slv | 2 | $6.39 | Available to order | 2 |
| 5 | T3151021 Bolt, HHF, M12 x 55, 10.9, Slv | Bolt, HHF, M12 x 55, 10.9, Slv | 2 | $6.14 | Available to order | 2 |
| 6 | T3501795 Washer, M12, OD26, Hardened, Slv | Washer, M12, OD26, Hardened, Slv | 3 | $2.25 | Backorder — Late August 2026 | 3 |
| 7 | T2075055 Bracket, M10 | Bracket, M10 | 4 | $15.12 | Available to order | 4 |
| 8 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 8 | $6.67 | Available to order | 8 |
| 9 | T3350219 Threaded Insert | Threaded Insert | 7 | $3.10 | Unavailable | View Details |
| 10 | T2076401 Cradle Stiffener | Cradle Stiffener | 1 | $51.31 | Available to order | 1 |
| 11 | T2071709 Bracket, M8 | Bracket, M8 | 1 | $21.57 | Available to order | 1 |
| 12 | T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv | Bolt, HHF, Lghtd, M8 x 16, Slv | 4 | $1.62 | Available to order | 4 |
| 13 | T3334675 Bolt, HHF, M12 x 240, Slv | Bolt, HHF, M12 x 240, Slv | 1 | $6.94 | Out of Stock | Notify Me |
| 14 | T3334662 Screw, Torx, M12 x 265 | Screw, Torx, M12 x 265 | 1 | $15.60 | Available to order | 1 |
| 15 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 6 | $6.07 | Available to order | 6 |
| 16 | T2072119 Spacer, 13 x 24 x 29 | Spacer, 13 x 24 x 29 | 1 | $7.42 | Available to order | 1 |
| 17 | T2072118 Spacer, 13 x 28 x 15 | Spacer, 13 x 28 x 15 | 1 | $8.33 | Out of Stock | Notify Me |
| 18 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 19 | T2072929 Pad, Protection, Fuel Tank | Pad, Protection, Fuel Tank | 1 | $25.85 | Available to order | 1 |
| 20 | T2071708 Bung | Bung | 1 | $3.29 | Available to order | 1 |
| 21 | T2071980 Adjuster, Frame, M12 | Adjuster, Frame, M12 | 3 | $9.78 | Out of Stock | Notify Me |
| 22 | T2076548 Adjuster, Threaded | Adjuster, Threaded | 2 | $16.42 | Available to order | 2 |
| 23 | T2051010 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $24.43 | Available to order | 1 |
