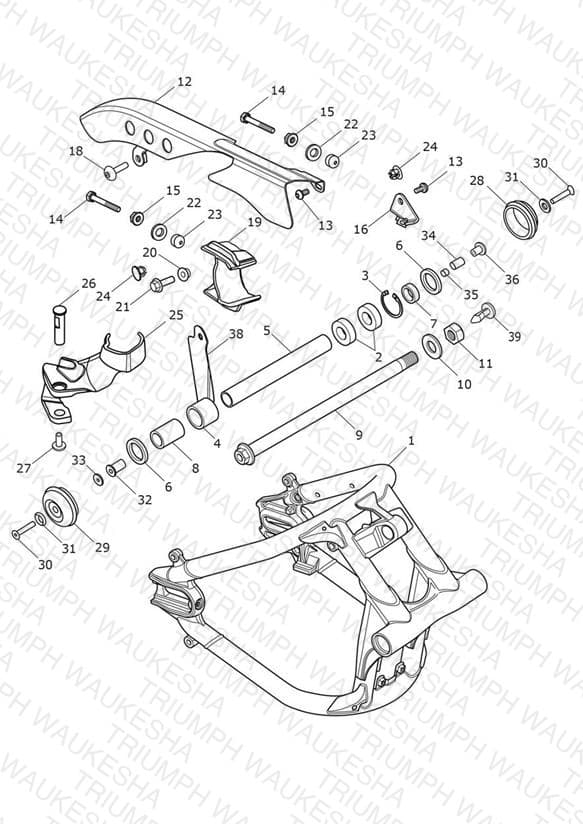

Swingarm Assembly
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2050426 Swingarm Assembly | Swingarm Assembly Includes items: 2, 3, 4, 5, 6, 7 & 8 | 1 | $2182.86 | Available to order | 1 |
| 2 | T3800506 Bearing, Ball, 17 x 35 x 10 | Bearing, Ball, 17 x 35 x 10 | 2 | $19.29 | Available to order | 2 |
| 3 | T3500204 Circlip, Int, 35 x 1.5 | Circlip, Int, 35 x 1.5 | 1 | $0.97 | Available to order | 1 |
| 4 | T3800014 Roller bearing | Roller bearing | 1 | $14.32 | Available to order | 1 |
| 5 | T2054096 Spacer, Internal, 22 x 174.5 | Spacer, Internal, 22 x 174.5 | 1 | $61.79 | Available to order | 1 |
| 6 | T3600044 Oil Seal, 35 25 4 | Oil Seal, 35 25 4 | 2 | $10.44 | Available to order | 2 |
| 7 | T2054063 Spacer, 25 x 17 x 8.5 | Spacer, 25 x 17 x 8.5 | 1 | $8.01 | Available to order | 1 |
| 8 | T2054344 Sleeve, Ground, 25 x 17 x 37 | Sleeve, Ground, 25 x 17 x 37 | 1 | $13.21 | Available to order | 1 |
| 9 | T2012012 Bolt | Bolt | 1 | $35.64 | Available to order | 1 |
| 10 | T3551240 Washer, M16 x 34 x 3 | Washer, M16 x 34 x 3 | 1 | $2.63 | Available to order | 1 |
| 11 | T3350155 Locknut, Thin, M16 | Locknut, Thin, M16 | 1 | $9.41 | Available to order | 1 |
| 12 | T2059777 Chainguard, Pressed, Black | Chainguard, Pressed, Black | 1 | $88.80 | Out of Stock | Notify Me |
| 13 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 14 | T3203205 Screw, H/Hd, M8 x 50, Slv | Screw, H/Hd, M8 x 50, Slv | 2 | $2.05 | Available to order | 2 |
| 15 | T3350301 Nut, Flanged, M8, Silver | Nut, Flanged, M8, Silver | 2 | $0.81 | Available to order | 2 |
| 16 | T2056010 Bracket, Brake Hose, Rear | Bracket, Brake Hose, Rear | 1 | $6.41 | Backorder — Late August 2026 | 1 |
| 18 | T3335015 Screw, But/Hd, TX, M8 x 30 | Screw, But/Hd, TX, M8 x 30 | 1 | $8.33 | Out of Stock | Notify Me |
| 19 | T2050378 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $39.18 | Available to order | 1 |
| 20 | T3010061 Flanged Sleeve, M6 x 9 x 3.25 | Flanged Sleeve, M6 x 9 x 3.25 | 1 | $7.22 | Available to order | 1 |
| 21 | T3205065 Bolt, HHF, Lghtd, M6 x 20, Enc | Bolt, HHF, Lghtd, M6 x 20, Enc | 1 | $5.60 | Available to order | 1 |
| 22 | T2050398 Spacer, 16 x 8.4 x 3 | Spacer, 16 x 8.4 x 3 | 2 | $11.56 | Available to order | 2 |
| 23 | T3450108 Stand Off Rubber | Stand Off Rubber | 2 | $2.55 | Available to order | 2 |
| 24 | T3700180 Plug, Hole, Plastic | Plug, Hole, Plastic | 3 | $2.55 | Available to order | 3 |
| 25 | T2059371 Chain Rubbing Strip, Rear | Chain Rubbing Strip, Rear | 1 | $36.48 | Available to order | 1 |
| 26 | T2059401 Compression Limiter | Compression Limiter | 1 | $5.30 | Out of Stock | Notify Me |
| 27 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 1 | $8.46 | Available to order | 1 |
| 28 | T2052662 Cover, Swingarm Pivot, LH | Cover, Swingarm Pivot, LH | 1 | $19.50 | Available to order | 1 |
| 29 | T2052663 Cover, Swingarm Pivot, RH | Cover, Swingarm Pivot, RH | 1 | $19.50 | Available to order | 1 |
| 30 | T3330683 Screw, Csk, M5 x 40, SS | Screw, Csk, M5 x 40, SS | 2 | $2.00 | Available to order | 2 |
| 31 | T3550265 Washer, M5, C'sunk | Washer, M5, C'sunk | 2 | $4.19 | Available to order | 2 |
| 32 | T3350050 Wellnut, M5 | Wellnut, M5 | 1 | $6.65 | Available to order | 1 |
| 33 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 1 | $1.62 | Backorder — Early September 2026 | 1 |
| 34 | T2050376 Tube, ID 5.2, OD 7.5, 14 Long | Tube, ID 5.2, OD 7.5, 14 Long | 1 | $18.16 | Available to order | 1 |
| 35 | T3350199 Nut, M5, Cylindrical | Nut, M5, Cylindrical | 1 | $4.55 | Available to order | 1 |
| 36 | T3010706 Flanged Sleeve, 5.2 x 7 x 6.3 | Flanged Sleeve, 5.2 x 7 x 6.3 | 1 | $5.30 | Available to order | 1 |
| 38 | T2059997 Protector, Swingarm | Protector, Swingarm | 1 | $41.26 | Available to order | 1 |
| 39 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 1 | $1.21 | Available to order | 1 |
