Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics
Loading schematic...

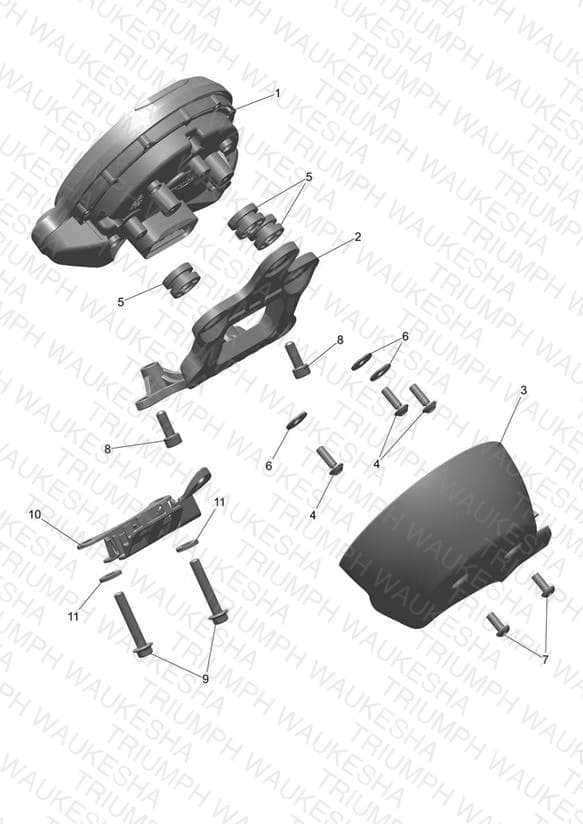

Instruments
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2505192 Instruments, MPH, UK | Instruments, MPH, UK UK & CY Only | 1 | $1130.85 | Out of Stock | Notify Me |
| 1 | T2505193 Instruments, MPH, US | Instruments, MPH, US US & CY Only | 1 | $1130.85 | Out of Stock | Notify Me |
| 1 | T2505194 Instruments, KMH, EU | Instruments, KMH, EU All Markets Except, UK, CY, US & JP | 1 | $1130.85 | Out of Stock | Notify Me |
| 1 | T2505195 Instruments, KMH, JP | Instruments, KMH, JP JP Only | 1 | $1130.85 | Out of Stock | Notify Me |
| 2 | T2503028 Bracket, Instruments | Bracket, Instruments | 1 | $40.47 | Out of Stock | Notify Me |
| 3 | T2505287 Cover, Instrument, Rear, Mldg | Cover, Instrument, Rear, Mldg | 1 | $5.04 | Out of Stock | Notify Me |
| 4 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 3 | $1.51 | Available to order | 3 |
| 5 | T3020122 Grommet, Instruments | Grommet, Instruments | 3 | $6.94 | Available to order | 3 |
| 6 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 3 | $0.97 | Available to order | 3 |
| 7 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 2 | $1.11 | Available to order | 2 |
| 8 | T3050331 Screw, Cap/Hd, M6 x 16, Slv, Enc | Screw, Cap/Hd, M6 x 16, Slv, Enc | 2 | $2.35 | Available to order | 2 |
| 9 | T3200180 Bolt, RHHF, M6 x 35, Slv, Enc | Bolt, RHHF, M6 x 35, Slv, Enc | 2 | $5.12 | Available to order | 2 |
| 10 | T2505288 Bracket, USB-C | Bracket, USB-C | 1 | $6.45 | Out of Stock | Notify Me |
| 11 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 2 | $1.91 | Available to order | 2 |
