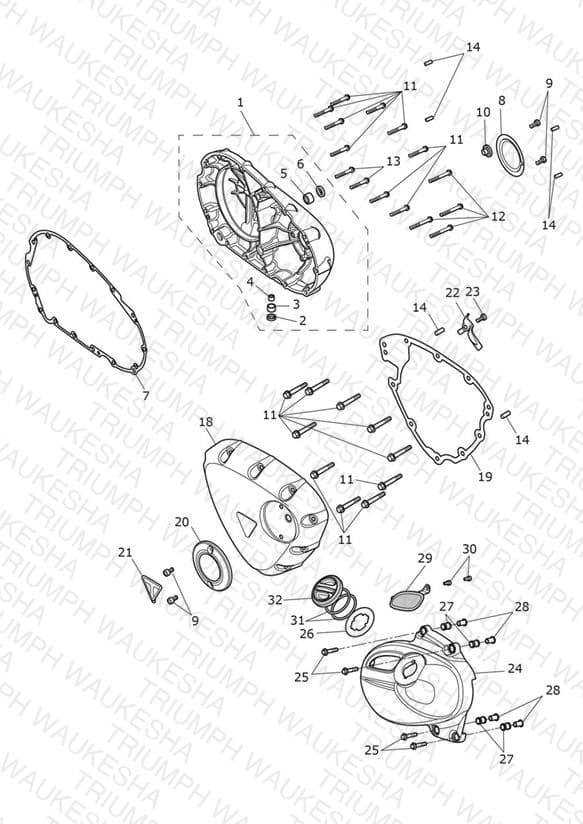

Engine Covers
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1267778 Clutch Cover Assy, Black | Clutch Cover Assy, Black | 1 | $475.17 | Available to order | 1 |
| 2 | T3600095 Dust Seal | Dust Seal | 1 | $2.25 | Available to order | 1 |
| 3 | T3800110 Roller Bearing, HK 1210 | Roller Bearing, HK 1210 | 1 | $6.65 | Available to order | 1 |
| 4 | T3800156 Bearing, Needle Roller, 7 x 11 x 9 | Bearing, Needle Roller, 7 x 11 x 9 | 1 | $33.23 | Available to order | 1 |
| 5 | T3800001 Bearing, Needle, 20 x 14 x 12 | Bearing, Needle, 20 x 14 x 12 | 1 | $8.60 | Available to order | 1 |
| 6 | T3600088 Seal, Oil, 14 x 22 x 4.5 | Seal, Oil, 14 x 22 x 4.5 | 1 | $6.39 | Available to order | 1 |
| 7 | T1269876 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $16.43 | Available to order | 1 |
| 8 | T1268210 Badge, Clutch Cover, TFC | Badge, Clutch Cover, TFC | 1 | $87.80 | Available to order | 1 |
| 9 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 4 | $3.04 | Available to order | 4 |
| 10 | T1268666 Plug, M12 x 1.75, Bright | Plug, M12 x 1.75, Bright | 1 | $33.36 | Available to order | 1 |
| 11 | T3205072 Bolt, HHF, Lghtd, M6 x 40, Slv | Bolt, HHF, Lghtd, M6 x 40, Slv | 19 | $1.72 | Available to order | 19 |
| 12 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 4 | $6.73 | Available to order | 4 |
| 13 | T3205082 Bolt, HHF, Lghtd, M6 x 35, Enc | Bolt, HHF, Lghtd, M6 x 35, Enc | 2 | $2.37 | Available to order | 2 |
| 14 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 6 | $1.13 | Available to order | 6 |
| 18 | T1267621 Alternator Cover | Alternator Cover | 1 | $223.25 | Available to order | 1 |
| 19 | T1268765 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $13.72 | Available to order | 1 |
| 20 | T1268220 Badge, Alternator Cover, TFC | Badge, Alternator Cover, TFC | 1 | $87.80 | Available to order | 1 |
| 21 | T3951018 Badge, Flat, Type 1 | Badge, Flat, Type 1 | 1 | $72.15 | Available to order | 1 |
| 22 | T1308765 Bracket, Cable | Bracket, Cable | 1 | $11.12 | Available to order | 1 |
| 23 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 1 | $5.67 | Available to order | 1 |
| 24 | T1263543 Cover, Sprocket, Black | Cover, Sprocket, Black | 1 | $174.91 | Out of Stock | Notify Me |
| 25 | T3200148 Bolt, RHHF, M6 x 30, Slv | Bolt, RHHF, M6 x 30, Slv | 4 | $4.45 | Available to order | 4 |
| 26 | T1260568 Washer, Cap, Nylon | Washer, Cap, Nylon | 1 | $6.07 | Out of Stock | Notify Me |
| 27 | T1261662 Grommet, Sprocket Cover | Grommet, Sprocket Cover | 4 | $3.50 | Available to order | 4 |
| 28 | T3010901 Flanged Sleeve, 6.4 x 9 x 14.6 | Flanged Sleeve, 6.4 x 9 x 14.6 | 4 | $6.41 | Available to order | 4 |
| 29 | T1260563 Mesh Insert | Mesh Insert | 1 | $43.81 | Available to order | 1 |
| 30 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 2 | $3.80 | Backorder — Early September 2026 | 2 |
| 31 | T3600222 O ring | O ring | 2 | $11.55 | Available to order | 2 |
| 32 | T1260576 Cap, Sprocket Cover, Black | Cap, Sprocket Cover, Black | 1 | $45.90 | Available to order | 1 |
