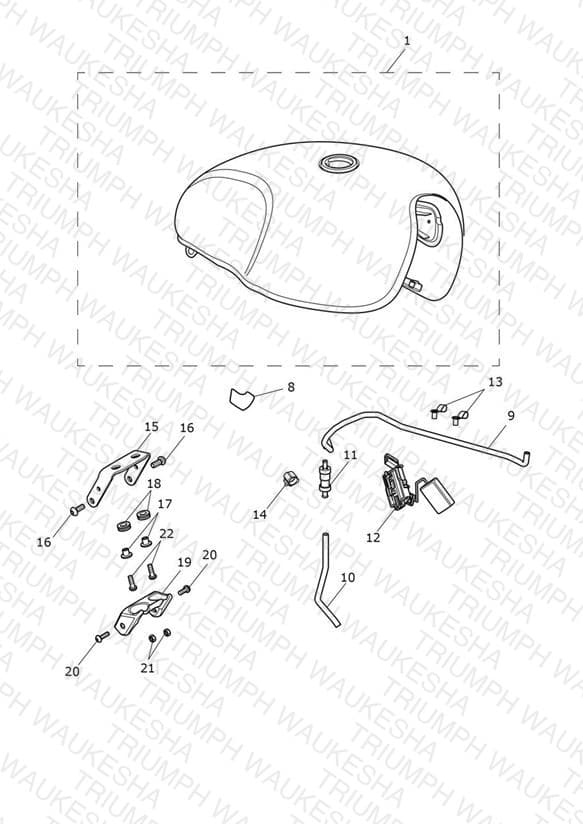

Fuel Tank
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2402635-PI Fuel Tank Assy | Fuel Tank Assy Carbon Black | 1 | $2985.92 | Available to order | 1 |
| 8 | T2401625 Protective Film | Protective Film | 1 | $5.78 | Available to order | 1 |
| 9 | T2408531 Formed Hose, Tank to Roll Over | Formed Hose, Tank to Roll Over | 1 | $23.76 | Available to order | 1 |
| 10 | T2408900 Formed Hose, Roll Over Drain | Formed Hose, Roll Over Drain | 1 | $5.60 | Out of Stock | Notify Me |
| 11 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Available to order | 1 |
| 12 | T2401440 Fuel Level Sender | Fuel Level Sender | 1 | $34.05 | Available to order | 1 |
| 13 | T3700091 Clip Cable | Clip Cable | 2 | $1.13 | Available to order | 2 |
| 14 | T3700072 Cable Clip, Dia 15-16mm BK | Cable Clip, Dia 15-16mm BK | 1 | $4.12 | Available to order | 1 |
| 15 | T2409056 Bracket, Rear Mount, Fuel Tank | Bracket, Rear Mount, Fuel Tank | 1 | $12.29 | Available to order | 1 |
| 16 | T3206969 Bolt, HHF, Lghtd, M6 x 16, Enc | Bolt, HHF, Lghtd, M6 x 16, Enc | 2 | $6.61 | Out of Stock | Notify Me |
| 17 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 18 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 2 | $2.85 | Available to order | 2 |
| 19 | T2408787 Rubber, Fuel Tank, Rear Mount | Rubber, Fuel Tank, Rear Mount | 1 | $30.54 | Available to order | 1 |
| 20 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 21 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 2 | $0.94 | Available to order | 2 |
| 22 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 2 | $2.10 | Available to order | 2 |
