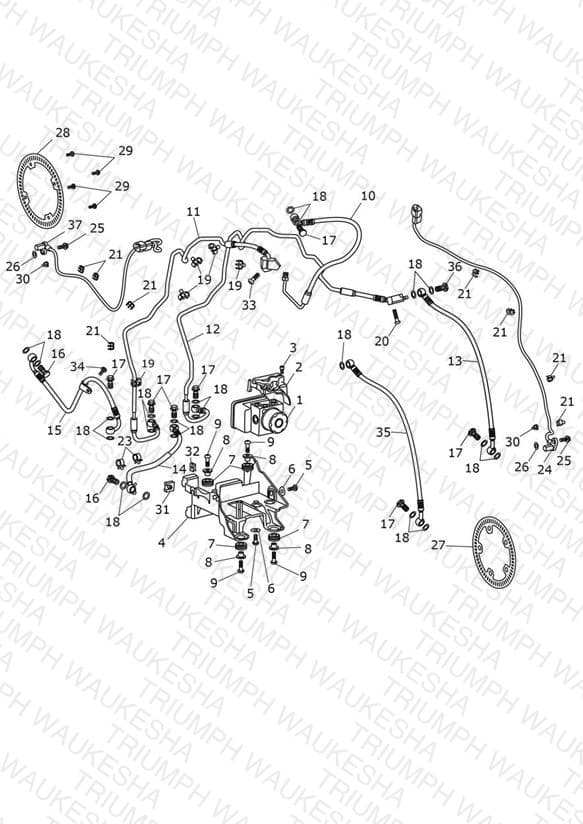

ABS System
Parts (39)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2025584 ABS Modulator, Wet | ABS Modulator, Wet | 1 | $2112.44 | Out of Stock | Notify Me |
| 2 | T2025582 Banjo Guide, Anti-Rotation | Banjo Guide, Anti-Rotation | 1 | $13.82 | Out of Stock | Notify Me |
| 3 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 1 | $3.80 | Backorder — Early September 2026 | 1 |
| 4 | T2025585 Bracket, ABS Modulator | Bracket, ABS Modulator | 1 | $17.77 | Out of Stock | Notify Me |
| 5 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 6 | T3555011 Washer, 6.5 x 20 x 2 | Washer, 6.5 x 20 x 2 | 2 | $0.97 | Available to order | 2 |
| 7 | T3021100 Grommet, Dia 13 x 1.8 | Grommet, Dia 13 x 1.8 | 4 | $2.85 | Available to order | 4 |
| 8 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 4 | $5.78 | Available to order | 4 |
| 9 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 4 | $2.10 | Available to order | 4 |
| 10 | T2025573 Brake Line, MCyl to HS, Front | Brake Line, MCyl to HS, Front | 1 | $98.80 | Out of Stock | Notify Me |
| 11 | T2025571 Brake Line, HS to Modulator, Front | Brake Line, HS to Modulator, Front | 1 | $98.85 | Backorder — Late August 2026 | 1 |
| 12 | T2021673 Brake Line, Mod to HS, Front | Brake Line, Mod to HS, Front | 1 | $104.56 | Available to order | 1 |
| 13 | T2022469 Brake Line, HS to Cal, Front | Brake Line, HS to Cal, Front | 1 | $110.28 | Out of Stock | Notify Me |
| 14 | T2025590 Brake Line, M/Cyl to Mod, Rear | Brake Line, M/Cyl to Mod, Rear | 1 | $45.47 | Available to order | 1 |
| 15 | T2025595 Brake Line, Mod to Cal, Rear | Brake Line, Mod to Cal, Rear | 1 | $45.47 | Available to order | 1 |
| 16 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 2 | $7.02 | Available to order | 2 |
| 17 | T3250032 Banjo Bolt, M10 x 19 | Banjo Bolt, M10 x 19 | 7 | $5.58 | Available to order | 7 |
| 18 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated | 21 | $1.07 | Available to order | 21 |
| 19 | T3700197 Clip, Hose, 6.5d, Twin | Clip, Hose, 6.5d, Twin | 5 | $8.01 | Available to order | 5 |
| 20 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 1 | $1.06 | Available to order | 1 |
| 21 | T3701103 Clip, Twin, 3.9-7 | Clip, Twin, 3.9-7 | 8 | $3.07 | Backorder — Mid September 2026 | 8 |
| 23 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 2 | $3.24 | Available to order | 2 |
| 24 | T2022799 Sensor, Wheel Speed, CHT, 270 | Sensor, Wheel Speed, CHT, 270 | 1 | $184.39 | Out of Stock | Notify Me |
| 25 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 26 | T3552001 Washer, M6 x 14 x 0.5 | Washer, M6 x 14 x 0.5 Use as required | 2 | $1.79 | Available to order | 2 |
| 26 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 Use as required | 2 | $1.69 | Available to order | 2 |
| 26 | T3552003 Washer, M6 x 14 x 1.5 | Washer, M6 x 14 x 1.5 Use as required | 2 | $1.79 | Available to order | 2 |
| 26 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 Use as required | 2 | $1.91 | Available to order | 2 |
| 27 | T2022122 Pulser Ring, 5 x 100.5 pcd | Pulser Ring, 5 x 100.5 pcd 60 Teeth, Silver | 1 | $134.99 | Available to order | 1 |
| 28 | T2020776 Pulser Ring, Rear | Pulser Ring, Rear 72 Teeth, Satin | 1 | $216.72 | Available to order | 1 |
| 29 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 4 | $5.67 | Available to order | 4 |
| 30 | T3700062 Fir Tree Clip | Fir Tree Clip | 2 | $2.95 | Available to order | 2 |
| 31 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 1 | $1.79 | Available to order | 1 |
| 32 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $4.55 | Available to order | 1 |
| 33 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 34 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 35 | T2028151 Brake Line, Headstock to Caliper, Front R | Brake Line, Headstock to Caliper, Front R | 1 | $106.47 | Out of Stock | Notify Me |
| 36 | T3250019 Bolt, Banjo, M10 x 31 | Bolt, Banjo, M10 x 31 | 1 | $6.29 | Available to order | 1 |
| 37 | T2028270 Sensor, Wheel Speed | Sensor, Wheel Speed | 1 | $183.55 | Available to order | 1 |
