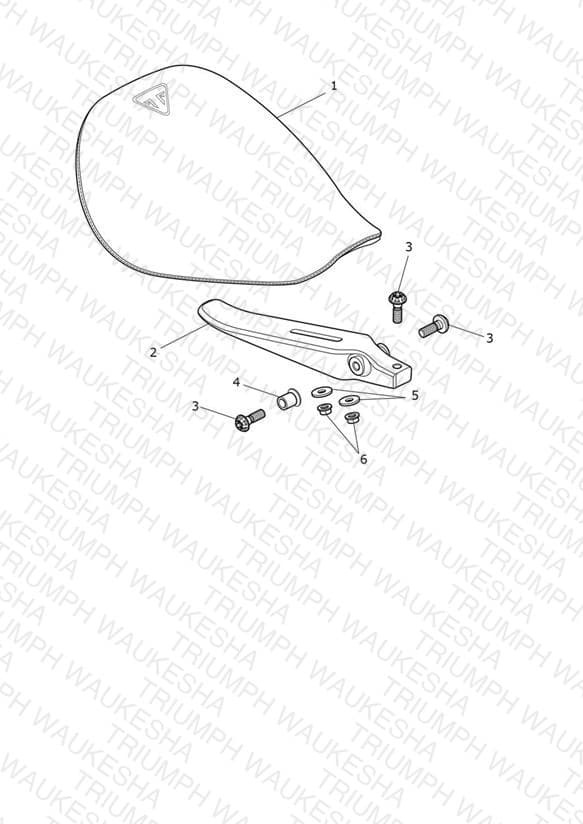

Seat Assembly & Toolkit
Parts (6)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2311802 Rider Seat, Statement, Diesel | Rider Seat, Statement, Diesel | 1 | $598.88 | Backorder — Early September 2026 | 1 |
| 2 | T2306668 Seat Mount | Seat Mount | 1 | $89.35 | Available to order | 1 |
| 3 | T3334411 Bolt, TX, M10 x 35 | Bolt, TX, M10 x 35 | 3 | $4.92 | Available to order | 3 |
| 4 | T2308819 Sleeve, Flanged, 10.2 x 16 x 18 | Sleeve, Flanged, 10.2 x 16 x 18 | 1 | $6.14 | Available to order | 1 |
| 5 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 2 | $2.74 | Available to order | 2 |
| 6 | T3350134 Locknut, M10 x 1.25 | Locknut, M10 x 1.25 | 2 | $2.54 | Available to order | 2 |
