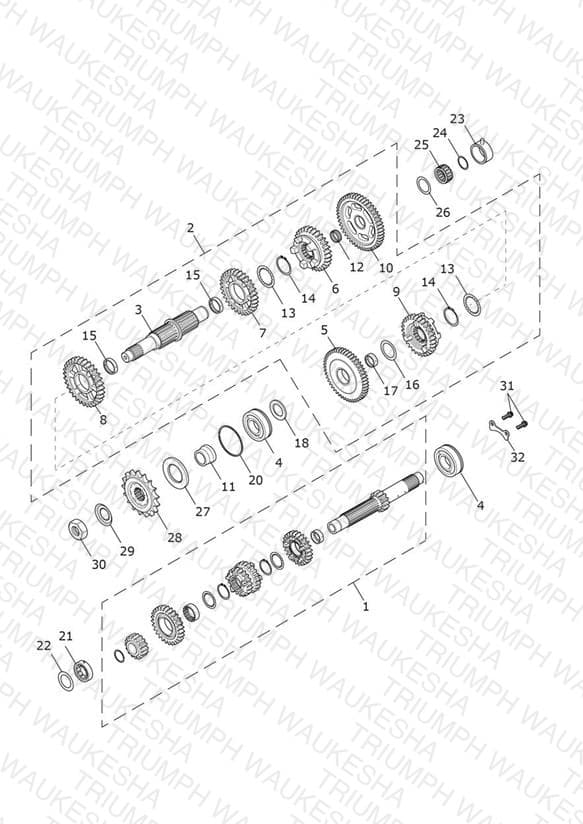

Transmission
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1183700 Gearbox Assy, Input, 6 Speed | Gearbox Assy, Input, 6 Speed | 1 | $1364.31 | Available to order | 1 |
| 2 | T1184110 Gearbox Assy, Output, 6 Speed | Gearbox Assy, Output, 6 Speed | 1 | $1380.67 | Available to order | 1 |
| 3 | T1183406 Output Shaft, Gearbox, 6 Speed | Output Shaft, Gearbox, 6 Speed | 1 | $279.90 | Available to order | 1 |
| 4 | T3800555 Bearing, Ball, 25 x 62 x 17 | Bearing, Ball, 25 x 62 x 17 | 2 | $199.57 | Available to order | 2 |
| 5 | T1183712 Gear, Output, 2nd, 45T | Gear, Output, 2nd, 45T | 1 | $153.98 | Out of Stock | Notify Me |
| 6 | T1183715 Gear, Output, 5th, 35T | Gear, Output, 5th, 35T | 1 | $102.64 | Available to order | 1 |
| 7 | T1183714 Gear, Output, 4th, 37T | Gear, Output, 4th, 37T | 1 | $112.13 | Out of Stock | Notify Me |
| 8 | T1183713 Gear, Output, 3rd, 37T | Gear, Output, 3rd, 37T | 1 | $150.18 | Out of Stock | Notify Me |
| 9 | T1183716 Gear, Output, 6th, 34T | Gear, Output, 6th, 34T | 1 | $102.64 | Out of Stock | Notify Me |
| 10 | T1183711 Gear, Output, 1st, 49T | Gear, Output, 1st, 49T | 1 | $153.98 | Available to order | 1 |
| 11 | T1187042 Spacer, Sprocket, Width 28.4 | Spacer, Sprocket, Width 28.4 | 1 | $14.32 | Available to order | 1 |
| 12 | T3800101 Bearing, Needle | Bearing, Needle | 1 | $18.85 | Available to order | 1 |
| 13 | T1183777 Thrust Washer, 35.5 x 43 x 1.5 | Thrust Washer, 35.5 x 43 x 1.5 | 2 | $4.12 | Available to order | 2 |
| 14 | T3502102 Circlip, ID 32.2 | Circlip, ID 32.2 | 2 | $8.46 | Available to order | 2 |
| 15 | T1183398 Plain Bush, Output, 3rd | Plain Bush, Output, 3rd | 2 | $53.24 | Available to order | 2 |
| 16 | T1183555 Thrust Washer, 30.5 x 40 x 1.5 | Thrust Washer, 30.5 x 40 x 1.5 | 1 | $4.12 | Available to order | 1 |
| 17 | T1183399 Plain Bush, Output, 2nd | Plain Bush, Output, 2nd | 1 | $53.24 | Available to order | 1 |
| 18 | T1187606 Thrust Washer | Thrust Washer | 1 | $8.65 | Available to order | 1 |
| 20 | T3800189 Snap Ring | Snap Ring | 1 | $3.59 | Available to order | 1 |
| 21 | T3802206 Bearing, Cyl Roll 22, 1 x 40 x 12 | Bearing, Cyl Roll 22, 1 x 40 x 12 | 1 | $58.92 | Available to order | 1 |
| 22 | T1183333 Restrictor Washer, Gearbox | Restrictor Washer, Gearbox | 1 | $8.12 | Available to order | 1 |
| 23 | T1180156 Sleeve Assy, Needle bearing | Sleeve Assy, Needle bearing | 1 | $63.70 | Available to order | 1 |
| 24 | T3500201 Circlip, EXT, 23.5 x 1.2 | Circlip, EXT, 23.5 x 1.2 | 1 | $4.36 | Available to order | 1 |
| 25 | T3800159 Bearing, Needle, K25 x 32 x 16 V5 | Bearing, Needle, K25 x 32 x 16 V5 | 1 | $17.77 | Available to order | 1 |
| 26 | T3555016 Thrust Washer, 25 x 35 x 1.0 | Thrust Washer, 25 x 35 x 1.0 | 1 | $4.92 | Available to order | 1 |
| 27 | T3600113 Seal, Oil 35 x 62 x 5 | Seal, Oil 35 x 62 x 5 | 1 | $24.60 | Available to order | 1 |
| 28 | T1182517 Sprocket, Front, 17T, 525 | Sprocket, Front, 17T, 525 | 1 | $52.90 | Available to order | 1 |
| 29 | T1186601 Tab Washer, Sprocket | Tab Washer, Sprocket | 1 | $27.87 | Available to order | 1 |
| 30 | T1180175 Nut, Gearbox Sprocket | Nut, Gearbox Sprocket | 1 | $5.56 | Available to order | 1 |
| 31 | T3051063 Screw, Cap/Hd, M6 x 16, Enc, Raw | Screw, Cap/Hd, M6 x 16, Enc, Raw | 2 | $0.57 | Available to order | 2 |
| 32 | T1189876 Bearing Retainer Plate | Bearing Retainer Plate | 1 | $19.13 | Available to order | 1 |
