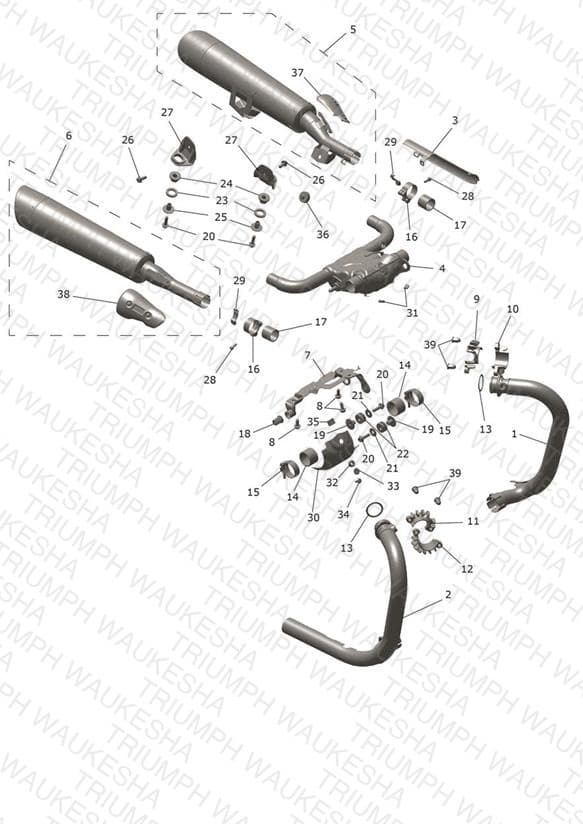

Exhaust System
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2206642 Exhaust Header Assembly, LH, Brushed | Exhaust Header Assembly, LH, Brushed | 1 | $496.53 | Available to order | 1 |
| 2 | T2206682 Exhaust Header Assembly, RH, Brushed | Exhaust Header Assembly, RH, Brushed | 1 | $496.53 | Available to order | 1 |
| 3 | T2202287 Cover, LH, Brushed | Cover, LH, Brushed | 2 | $233.84 | Available to order | 2 |
| 4 | T2208636 Catbox Linkpipe Assembly, Brushed | Catbox Linkpipe Assembly, Brushed All Mkts Except US, AU, CA, NZ, BR, CN & TH | 1 | $532.62 | Out of Stock | Notify Me |
| 4 | T2205937 Catbox Linkpipe Assembly, Brushed | Catbox Linkpipe Assembly, Brushed BR, CN & TH Only | 1 | $649.54 | Out of Stock | Notify Me |
| 4 | T2205435 Catbox Linkpipe Assembly, Brushed | Catbox Linkpipe Assembly, Brushed US, AU, CA & NZ Only | 1 | $649.54 | Out of Stock | Notify Me |
| 5 | T2204823 Silencer, LH | Silencer, LH | 1 | $1479.96 | Available to order | 1 |
| 6 | T2204824 Silencer RH | Silencer RH | 1 | $1479.96 | Available to order | 1 |
| 7 | T2205494 Catbox Mount | Catbox Mount | 1 | $27.58 | Backorder — Late September 2026 | 1 |
| 8 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 3 | $1.62 | Available to order | 3 |
| 9 | T2205833 Casting, Finned, Upper, LH | Casting, Finned, Upper, LH | 1 | $60.87 | Out of Stock | Notify Me |
| 10 | T2205834 Casting, Finned, Lower, LH | Casting, Finned, Lower, LH | 1 | $60.87 | Backorder — Late September 2026 | 1 |
| 11 | T2205835 Casting, Finned, Upper, RH | Casting, Finned, Upper, RH | 2 | $60.87 | Available to order | 2 |
| 12 | T2205836 Casting, Finned, Lower, RH | Casting, Finned, Lower, RH | 2 | $60.87 | Available to order | 2 |
| 13 | T2201429 Gasket, Exhaust Header | Gasket, Exhaust Header | 2 | $15.93 | Available to order | 2 |
| 14 | T2204818 Gasket, Exhaust | Gasket, Exhaust | 2 | $13.52 | Available to order | 2 |
| 15 | T2202636 Clamp, Exhaust, Dia 44-48mm | Clamp, Exhaust, Dia 44-48mm | 2 | $27.77 | Available to order | 2 |
| 16 | T2204577 Clamp, Exhaust | Clamp, Exhaust | 2 | $26.80 | Backorder — Mid September 2026 | 2 |
| 17 | T2204574 Gasket, Exhaust | Gasket, Exhaust | 2 | $10.92 | Available to order | 2 |
| 18 | T3020026 Sleeve, Flgd, Rubber, 10 x 17 x 24 | Sleeve, Flgd, Rubber, 10 x 17 x 24 | 1 | $4.74 | Available to order | 1 |
| 19 | T3010705 Flanged Sleeve, 8.4 x 12.4 x 13.8 | Flanged Sleeve, 8.4 x 12.4 x 13.8 | 2 | $10.44 | Available to order | 2 |
| 20 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 4 | $1.21 | Available to order | 4 |
| 21 | T3555033 Washer, 8.4 x 24 x 2 | Washer, 8.4 x 24 x 2 | 2 | $2.74 | Available to order | 2 |
| 22 | T3020300 Grommet, Dia 19.5 x 4 Panel | Grommet, Dia 19.5 x 4 Panel | 2 | $3.39 | Available to order | 2 |
| 23 | T3551553 Washer, Rubber | Washer, Rubber | 2 | $7.14 | Available to order | 2 |
| 24 | T2200213 Bush, Rubber | Bush, Rubber | 2 | $3.17 | Available to order | 2 |
| 25 | T3010096 Flanged Sleeve, M8 x 12.8 x 17.2 | Flanged Sleeve, M8 x 12.8 x 17.2 | 2 | $11.88 | Available to order | 2 |
| 26 | T3205457 Bolt, HHF, Lghtd, M8 x 20, Enc | Bolt, HHF, Lghtd, M8 x 20, Enc | 2 | $1.62 | Available to order | 2 |
| 27 | T2202297 Bracket, Silencer to Frame | Bracket, Silencer to Frame | 2 | $12.04 | Available to order | 2 |
| 28 | T3050159 Capscrew, SKT HD, M6 x 20, SS | Capscrew, SKT HD, M6 x 20, SS | 2 | $5.14 | Available to order | 2 |
| 29 | T2201229 Clip, Header, Outer Skin | Clip, Header, Outer Skin | 2 | $7.22 | Available to order | 2 |
| 30 | T2204257 Catalyst Cover | Catalyst Cover | 1 | $253.50 | Available to order | 1 |
| 31 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 2 | $2.63 | Available to order | 2 |
| 32 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 1 | $2.10 | Out of Stock | Notify Me |
| 33 | T3010704 Sleeve, Flanged, 5.3 x 9 x 6.5 | Sleeve, Flanged, 5.3 x 9 x 6.5 | 1 | $2.17 | Available to order | 1 |
| 34 | T3334511 Screw, Lge Skt Hd, M5 x 16, S/S | Screw, Lge Skt Hd, M5 x 16, S/S | 1 | $6.23 | Backorder — Mid September 2026 | 1 |
| 35 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.48 | Available to order | 1 |
| 36 | T2081928 Up Stop, Centrestand | Up Stop, Centrestand | 1 | $5.70 | Available to order | 1 |
| 37 | T2205933 Kit, Heatshield, LH | Kit, Heatshield, LH | 1 | $250.01 | Available to order | 1 |
| 38 | T2205934 Kit, Heatshield, RH | Kit, Heatshield, RH | 1 | $250.01 | Backorder — Late September 2026 | 1 |
| 39 | T3350139 Nut, Flgd, Domed, M8 | Nut, Flgd, Domed, M8 | 4 | $3.33 | Available to order | 4 |
