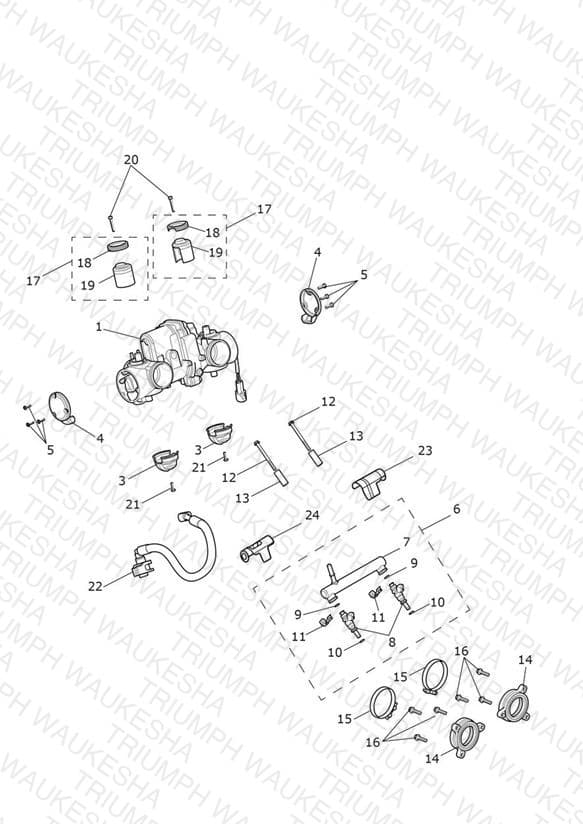

#	Part Number	Description	Qty	Price	Status
1	T1240285 Throttle Body Assy, Twin 44mm	Throttle Body Assy, Twin 44mm	1	$2640.58	Available to order	1 Ships within 3–7 business days
3	T1240345 Kit, Throttle Body Covers	Kit, Throttle Body Covers > 799737 - All Except BR & > 798279 - BR Only	1	$178.72	Available to order	1 Ships within 3–7 business days
3	T1240341 Bottom, Throttle	Bottom, Throttle 799738 > - All Except BR & 798280 > - BR Only	2	$21.57	Available to order	2 Ships within 3–7 business days
4	T1240342 Cover TPS	Cover TPS 799738 > - All Except BR & 798280 > - BR Only	2	$24.89	Available to order	2 Ships within 3–7 business days
5	T3330248 Screw, Pan/Hd, M4 x 16	Screw, Pan/Hd, M4 x 16	6	$1.03	Available to order	6 Ships within 3–7 business days
6	T1241970 Fuel Rail Assy, High Flow	Fuel Rail Assy, High Flow	1	$249.05	Backorder — Late August 2026	1
7	T1242261 Fuel Rail Assy	Fuel Rail Assy	1	$243.93	Out of Stock	Notify Me
8	T1241960 Injector Assy, High Flow	Injector Assy, High Flow	2	$218.63	Available to order	2 Ships within 3–7 business days
9	T1241965 O Ring, Injector, Upper	O Ring, Injector, Upper	2	$5.42	Available to order	2 Ships within 3–7 business days
10	T1241966 O Ring, Injector, Lower	O Ring, Injector, Lower	2	$5.42	Available to order	2 Ships within 3–7 business days
11	T1241967 Clip, Injector	Clip, Injector	2	$5.78	Available to order	2 Ships within 3–7 business days
12	T3200195 Bolt, RHHF, M6 x 68, Slv	Bolt, RHHF, M6 x 68, Slv	2	$4.36	Available to order	2 Ships within 3–7 business days
13	T1242786 Spacer, Fuel Rail, Aluminium	Spacer, Fuel Rail, Aluminium	2	$5.60	Available to order	2 Ships within 3–7 business days
14	T1241991 Transition Piece, 1200	Transition Piece, 1200	2	$33.23	Available to order	2 Ships within 3–7 business days
15	T1241705 Clip, Transition Piece	Clip, Transition Piece	2	$33.23	Available to order	2 Ships within 3–7 business days
16	T3200190 Bolt, RHHF, M6 x 25, Slv	Bolt, RHHF, M6 x 25, Slv	6	$2.63	Available to order	6 Ships within 3–7 business days
17	T1240344 Slide Tube Assy	Slide Tube Assy 798093 > - All Except BR & 798280 > - BR Only	2	$42.64	Backorder — Mid August 2026	2
18	T1240299 Ring, Throttle	Ring, Throttle	2	$21.13	Available to order	2 Ships within 3–7 business days
19	T1240343 Slide Tube, Single Piece	Slide Tube, Single Piece 798093 > - All Except BR & 798280 > - BR Only	2	$24.60	Available to order	2 Ships within 3–7 business days
20	T3050343 Screw, Cap/Hd, M5 x 30, Slv	Screw, Cap/Hd, M5 x 30, Slv	2	$4.45	Available to order	2 Ships within 3–7 business days
21	T3330696 Screw, But/Hd, M5 X 16, Slv	Screw, But/Hd, M5 X 16, Slv	2	$5.69	Available to order	2 Ships within 3–7 business days
22	T1243321 Hose Assy, Fuel Feed, Rubber	Hose Assy, Fuel Feed, Rubber	1	$137.88	Available to order	1 Ships within 3–7 business days
23	T1241955 Cover, Fuel Rail, LH	Cover, Fuel Rail, LH	1	$22.52	Available to order	1 Ships within 3–7 business days
24	T1241956 Cover, Fuel Rail, RH	Cover, Fuel Rail, RH	1	$22.52	Available to order	1 Ships within 3–7 business days
25	T1241982 Spring Clip, Fuel Rail	Spring Clip, Fuel Rail Not Illustrated	1	$5.88	Available to order	1 Ships within 3–7 business days
