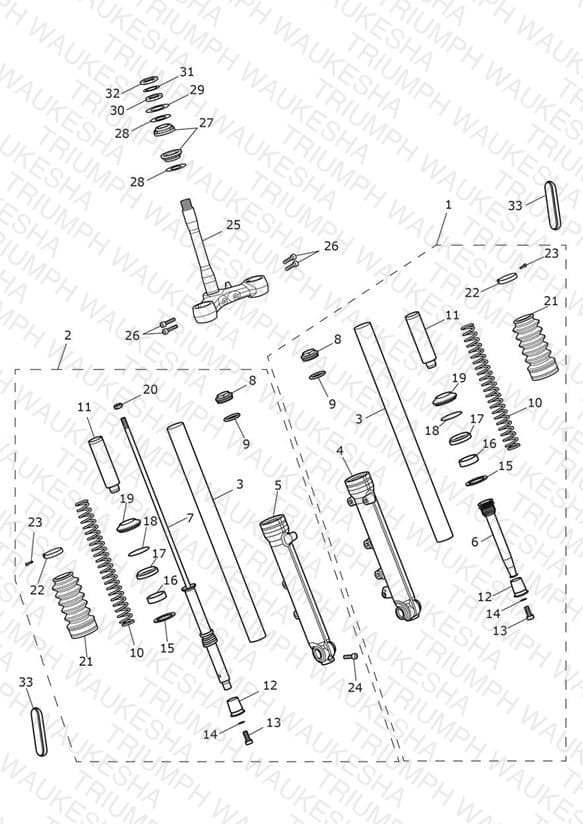

Triumph Bonneville Speedmaster Front Forks & Lower Yoke — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What Our Customers Say

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2041856 Stanchion Assy, LH	Stanchion Assy, LH	1	$1065.03	Available to order	1 Ships within 3–7 business days
2	T2045062 Stanchion Assy, RH	Stanchion Assy, RH	1	$1065.03	Available to order	1 Ships within 3–7 business days
3	T2045119 Fork Tube, Inner	Fork Tube, Inner	2	$554.50	Available to order	2 Ships within 3–7 business days
4	T2049909 Casting, Fork, LH	Casting, Fork, LH	1	$545.70	Available to order	1 Ships within 3–7 business days
5	T2043702 Casting, Fork, RH	Casting, Fork, RH	1	$545.70	Available to order	1 Ships within 3–7 business days
6	T2041763 Cylinder, Fork, Comp, LH	Cylinder, Fork, Comp, LH	1	$131.17	Out of Stock	Notify Me
7	T2041728 Cylinder, Fork, Comp, RH	Cylinder, Fork, Comp, RH	1	$131.17	Backorder — Late August 2026	1
8	T2041674 Cap	Cap	2	$77.01	Available to order	2 Ships within 3–7 business days
9	T2047113 O Ring, Fork Seal	O Ring, Fork Seal	2	$2.74	Available to order	2 Ships within 3–7 business days
10	T2041724 Main Fork Spring	Main Fork Spring	2	$102.64	Out of Stock	Notify Me
11	T2041673 Spacer	Spacer	2	$11.71	Available to order	2 Ships within 3–7 business days
12	T2041670 Piece Comp, Oil Lock	Piece Comp, Oil Lock	2	$10.63	Available to order	2 Ships within 3–7 business days
13	T2045046 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$10.63	Available to order	2 Ships within 3–7 business days
14	T2045045 Washer, Sealing B	Washer, Sealing B	2	$1.13	Available to order	2 Ships within 3–7 business days
15	T2047107 Ring, Back Up	Ring, Back Up	2	$4.36	Backorder — Late August 2026	2
16	T2047106 Guide, Bushing	Guide, Bushing	2	$13.51	Available to order	2 Ships within 3–7 business days
17	T2044161 Oil Seal	Oil Seal	2	$24.04	Available to order	2 Ships within 3–7 business days
18	T2040248 Snap Ring	Snap Ring	2	$6.73	Available to order	2 Ships within 3–7 business days
19	T2047109 Dust Seal, Fork	Dust Seal, Fork	2	$18.30	Backorder — Late August 2026	2
20	T2040072 Nut, Cap Assy	Nut, Cap Assy	1	$17.56	Backorder — Late August 2026	1
21	T2041308 Gaiter, Fork	Gaiter, Fork	2	$39.18	Available to order	2 Ships within 3–7 business days
22	T2045157 Clip, Gaiter, Front Forks	Clip, Gaiter, Front Forks	2	$3.59	Available to order	2 Ships within 3–7 business days
23	T2040399 Screw, Fork Gaiter Clip, M4	Screw, Fork Gaiter Clip, M4	2	$3.59	Available to order	2 Ships within 3–7 business days
24	T3050133 Capscrew	Capscrew	1	$4.55	Backorder — Early October 2026	1
25	T2046851 Lower Yoke Assembly	Lower Yoke Assembly	1	$422.46	Available to order	1 Ships within 3–7 business days
26	T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv	Screw, Cap/Hd, M8 x 1.25 x 35, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
27	T3800091 Bearing, Sac	Bearing, Sac	2	$33.95	Available to order	2 Ships within 3–7 business days
28	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	2	$8.34	Available to order	2 Ships within 3–7 business days
29	T2042138 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.90	Available to order	1 Ships within 3–7 business days
30	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
31	T2044183 Washer, Headstock	Washer, Headstock	1	$8.30	Available to order	1 Ships within 3–7 business days
32	T2040304 Locknut, M30	Locknut, M30	1	$20.60	Available to order	1 Ships within 3–7 business days
33	T2700332 Reflector, Amber, Oval	Reflector, Amber, Oval All Except BR, TH, IN	2	$6.39	Available to order	2 Ships within 3–7 business days
