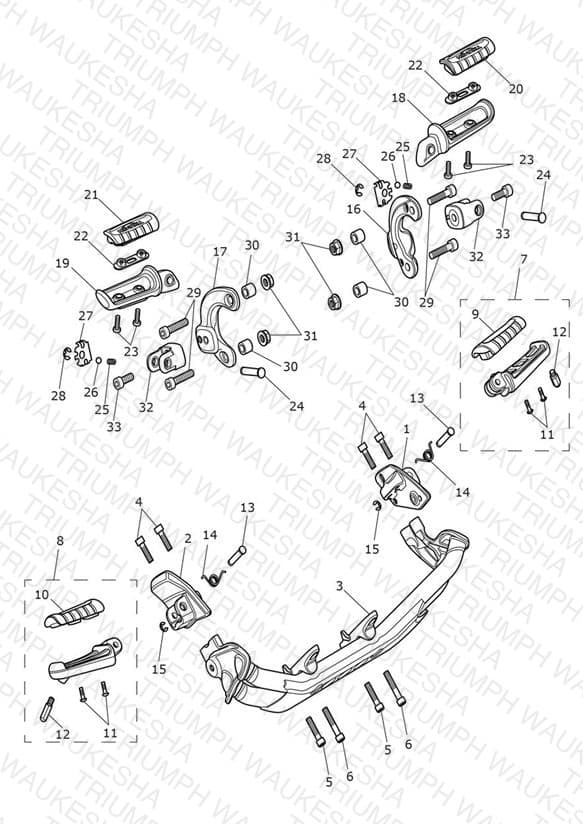

Triumph Bonneville Speedmaster Foot Controls — OEM Parts Diagram

Triumph Waukesha is your source for OEM Triumph parts, accessories, and interactive schematics.OEM Triumph parts and schematics

Loading schematic...

What Our Customers Say

4.9 out of 5 based on 175 reviews

View all reviews →

“Thanks.”

B. BOUTET · SANTA MARIA, CA · Apr 2026

“So far excellent”

K. Colmark · Pharr, TX · Mar 2026

“great shop. easy to search/navigate for parts”

B. Hobratschk · Buda, TX · Feb 2026

“Very Smooth”

D. Haynes · GREENBACKVILLE, VA · Feb 2026

“Great inventory!”

S. Saenz · IDAHO FALLS, ID · Feb 2026

“This is my favorite Triumph OEM store on the planet”

C. Bozonier · VENTURA, CA · Jan 2026

#	Part Number	Description	Qty	Price	Status
1	T2082259 Control Plate, LH	Control Plate, LH	1	$129.27	Available to order	1 Ships within 3–7 business days
2	T2082258 Control Plate, RH	Control Plate, RH	1	$125.50	Out of Stock	Notify Me
3	T2082257 Hanger, Control Plates	Hanger, Control Plates	1	$230.04	Available to order	1 Ships within 3–7 business days
4	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
6	T3050143 Screw, Cap/Hd, M8 x 30, S/S Replaced by T3050323 — Screw, Cap/Hd, M8 x 30, Slv — Available	Screw, Cap/Hd, M8 x 30, S/S	2	$6.04	Unavailable	2 Adds T3050323Ships within 3–7 business days
7	T2084803 Footrest, LH	Footrest, LH	1	$123.56	Available to order	1 Ships within 3–7 business days
8	T2084802 Footrest, RH	Footrest, RH	1	$123.56	Available to order	1 Ships within 3–7 business days
9	T2083534 Rubber, Footrest, LHF	Rubber, Footrest, LHF	1	$16.25	Available to order	1 Ships within 3–7 business days
10	T2083535 Rubber, Footrest, RHF	Rubber, Footrest, RHF	1	$16.25	Available to order	1 Ships within 3–7 business days
11	T3330173 Screw, Hex, Pan Hd, M5 X 16	Screw, Hex, Pan Hd, M5 X 16	4	$4.92	Available to order	4 Ships within 3–7 business days
12	T2081067 Peg, Bank Angle, 25mm	Peg, Bank Angle, 25mm	2	$14.07	Available to order	2 Ships within 3–7 business days
13	T2080546 Pin, Pivot, Footrest	Pin, Pivot, Footrest	2	$6.55	Available to order	2 Ships within 3–7 business days
14	T2080819 Return Spring, Footrest	Return Spring, Footrest	2	$6.29	Available to order	2 Ships within 3–7 business days
15	T3500207 Circlip, Ext 8 X 0.89	Circlip, Ext 8 X 0.89	2	$2.85	Available to order	2 Ships within 3–7 business days
16	T2082248 Bracket, Pillion Footrest, LH	Bracket, Pillion Footrest, LH	1	$45.56	Available to order	1 Ships within 3–7 business days
17	T2082247 Bracket, Pillion Footrest, RH	Bracket, Pillion Footrest, RH	1	$45.56	Available to order	1 Ships within 3–7 business days
18	T2084310 Rear Footrest, LH, Polished	Rear Footrest, LH, Polished	1	$112.60	Available to order	1 Ships within 3–7 business days
19	T2084311 Footrest, RH, Rear, Polished	Footrest, RH, Rear, Polished	1	$112.60	Available to order	1 Ships within 3–7 business days
20	T2081978 Rubber, Pillion, LH	Rubber, Pillion, LH	1	$15.95	Available to order	1 Ships within 3–7 business days
21	T2081977 Rubber, Pillion, RH	Rubber, Pillion, RH	1	$15.95	Available to order	1 Ships within 3–7 business days
22	T2086988 Nutplate, Footpeg	Nutplate, Footpeg	2	$5.78	Available to order	2 Ships within 3–7 business days
23	T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc	Screw, Pan/Hd, Tx, M5 x 16, Enc	4	$0.97	Available to order	4 Ships within 3–7 business days
24	T2080547 Pivot pin	Pivot pin	2	$6.55	Available to order	2 Ships within 3–7 business days
25	T2081674 Spring, Detent	Spring, Detent	2	$6.39	Available to order	2 Ships within 3–7 business days
26	T2081675 Detent Ball	Detent Ball	2	$1.91	Available to order	2 Ships within 3–7 business days
27	T2081672 Detent Plate	Detent Plate	2	$5.30	Available to order	2 Ships within 3–7 business days
29	T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv	Screw, Cap/Hd, M8 x 1.25 x 35, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
30	T2081993 Spacer, 8.5 x 14 x 11.7, Slv	Spacer, 8.5 x 14 x 11.7, Slv	4	$10.06	Available to order	4 Ships within 3–7 business days
31	T3350301 Nut, Flanged, M8, Silver	Nut, Flanged, M8, Silver	4	$0.81	Available to order	4 Ships within 3–7 business days
32	T2081501 Clevis, Pillion	Clevis, Pillion	2	$35.64	Available to order	2 Ships within 3–7 business days
33	T3050158 Screw, Cap/Hd, M8 x 20, Enc	Screw, Cap/Hd, M8 x 20, Enc	2	$4.74	Available to order	2 Ships within 3–7 business days
