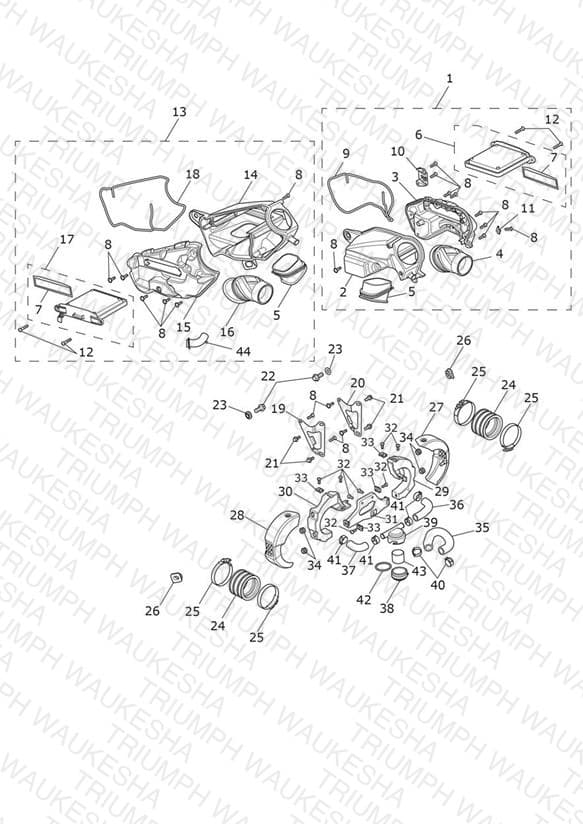

Airbox
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2206510 Airbox Assy, LHS | Airbox Assy, LHS | 1 | $205.34 | Available to order | 1 |
| 2 | T2206511 Inner Moulding, Airbox, LHS | Inner Moulding, Airbox, LHS | 1 | $63.70 | Available to order | 1 |
| 3 | T2206514 Outer Moulding, Airbox, LHS | Outer Moulding, Airbox, LHS | 1 | $63.70 | Available to order | 1 |
| 4 | T2206512 Duct, Intake, Throttle, LHS | Duct, Intake, Throttle, LHS | 1 | $20.60 | Available to order | 1 |
| 5 | T2206513 Duct, Intake, Airbox | Duct, Intake, Airbox | 2 | $20.60 | Available to order | 2 |
| 6 | T2206530 Air Filter, LHS | Air Filter, LHS | 1 | $30.79 | Available to order | 1 |
| 7 | T2206532 Gasket, Air Filter | Gasket, Air Filter | 2 | $16.10 | Available to order | 2 |
| 8 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 19 | $1.51 | Available to order | 19 |
| 9 | T2206517 Gasket, Airbox, LHS | Gasket, Airbox, LHS | 1 | $21.66 | Available to order | 1 |
| 10 | T2206536 Bracket, Fusebox | Bracket, Fusebox | 1 | $14.32 | Out of Stock | Notify Me |
| 11 | T2206538 Bracket, Main Fuse | Bracket, Main Fuse | 1 | $4.01 | Available to order | 1 |
| 12 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 4 | $2.17 | Available to order | 4 |
| 13 | T2207320 Airbox Assy, RHS, SAI | Airbox Assy, RHS, SAI | 1 | $197.17 | Backorder — Late August 2026 | 1 |
| 14 | T2207321 Inner Moulding, Airbox, RHS, SAI | Inner Moulding, Airbox, RHS, SAI | 1 | $61.13 | Available to order | 1 |
| 15 | T2206524 Outer Moulding, Airbox, RHS | Outer Moulding, Airbox, RHS | 1 | $63.70 | Available to order | 1 |
| 16 | T2206522 Duct, Intake, Throttle, RHS | Duct, Intake, Throttle, RHS | 1 | $20.60 | Available to order | 1 |
| 17 | T2206531 Air Filter, RHS | Air Filter, RHS | 1 | $30.79 | Available to order | 1 |
| 18 | T2206518 Gasket, Airbox, RHS | Gasket, Airbox, RHS | 1 | $21.66 | Available to order | 1 |
| 19 | T2206534 Bracket, Airbox, RHS | Bracket, Airbox, RHS | 1 | $6.83 | Available to order | 1 |
| 20 | T2206535 Bracket, Airbox, LHS | Bracket, Airbox, LHS | 1 | $6.83 | Out of Stock | Notify Me |
| 21 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 4 | $0.97 | Available to order | 4 |
| 22 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 2 | $1.62 | Available to order | 2 |
| 23 | T3010077 Flanged Sleeve, M8 x 11.2 x 2.2 | Flanged Sleeve, M8 x 11.2 x 2.2 | 2 | $3.70 | Available to order | 2 |
| 24 | T2206519 Duct, Adjustment, Throttle | Duct, Adjustment, Throttle | 2 | $21.75 | Available to order | 2 |
| 25 | T3700041 Clip, Intake, Venturi, 60mm, Cap | Clip, Intake, Venturi, 60mm, Cap | 4 | $7.87 | Available to order | 4 |
| 26 | T3020054 Grommet, Sidepanel | Grommet, Sidepanel | 2 | $2.37 | Out of Stock | Notify Me |
| 27 | T2306127 Finisher, Intake, LH, Brushed | Finisher, Intake, LH, Brushed | 1 | $33.23 | Out of Stock | Notify Me |
| 28 | T2306128 Finisher, Intake, RH, Brushed | Finisher, Intake, RH, Brushed | 1 | $33.23 | Available to order | 1 |
| 29 | T2206515 Mount, Intake Finisher, LH | Mount, Intake Finisher, LH | 1 | $19.29 | Backorder — Late August 2026 | 1 |
| 30 | T2206516 Mount, Intake Finisher, RH | Mount, Intake Finisher, RH | 1 | $19.29 | Out of Stock | Notify Me |
| 31 | T2201540 Bracket, Finisher Mount | Bracket, Finisher Mount | 1 | $10.34 | Backorder — Late August 2026 | 1 |
| 32 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 8 | $1.11 | Available to order | 8 |
| 33 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 4 | $4.55 | Available to order | 4 |
| 34 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 4 | $2.00 | Available to order | 4 |
| 35 | T2206539 Hose, Breather, Crankcase | Hose, Breather, Crankcase | 1 | $15.35 | Available to order | 1 |
| 36 | T2206508 Hose, Breather, LH | Hose, Breather, LH | 1 | $15.19 | Available to order | 1 |
| 37 | T2206507 Hose, Breather, RH | Hose, Breather, RH | 1 | $15.19 | Available to order | 1 |
| 38 | T2206505 Breather, Inline, Moulding | Breather, Inline, Moulding | 1 | $25.20 | Available to order | 1 |
| 39 | T2206506 Cap, Breather, Inline, Moulding | Cap, Breather, Inline, Moulding | 1 | $29.94 | Out of Stock | Notify Me |
| 40 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 2 | $3.77 | Available to order | 2 |
| 41 | T3700076 Hose Clip, 14-15.5 | Hose Clip, 14-15.5 | 4 | $4.98 | Available to order | 4 |
| 42 | T3601470 O Ring, ID 32.5 x 3 | O Ring, ID 32.5 x 3 | 1 | $3.39 | Available to order | 1 |
| 43 | T2206544 Foam, Breather, Inline | Foam, Breather, Inline | 1 | $29.94 | Available to order | 1 |
| 44 | T2207325 Spigot, Airbox | Spigot, Airbox | 1 | $12499.98 | Obsolete | View Details |
