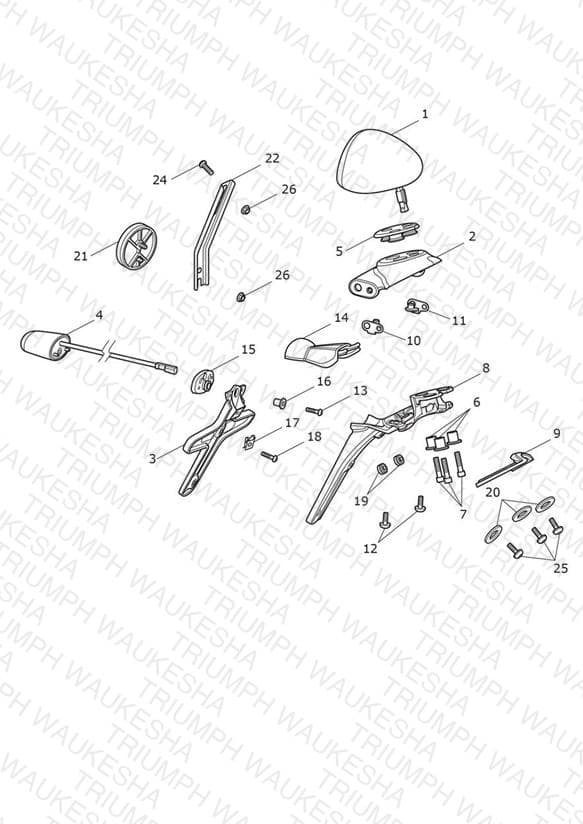

Rear Light
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2701255 Rear Light Assembly | Rear Light Assembly | 1 | $194.67 | Available to order | 1 |
| 2 | T2702352 Moulding, Rear Light Mount | Moulding, Rear Light Mount | 1 | $11.44 | Available to order | 1 |
| 3 | T2702355 Hanger, Upper, Reg Plate | Hanger, Upper, Reg Plate | 1 | $20.12 | Available to order | 1 |
| 4 | T2708036 Light, LED, Registration Plate | Light, LED, Registration Plate | 1 | $42.23 | Out of Stock | Notify Me |
| 5 | T2702071 Rubber Pad, Rear Light | Rubber Pad, Rear Light | 1 | $8.01 | Available to order | 1 |
| 6 | T3010713 Sleeve, Flgd, 6.4 x 11.5 x 11.5 | Sleeve, Flgd, 6.4 x 11.5 x 11.5 | 3 | $4.12 | Available to order | 3 |
| 7 | T3050333 Screw, Cap/Hd, M6 x 25, Slv | Screw, Cap/Hd, M6 x 25, Slv | 3 | $7.62 | Available to order | 3 |
| 8 | T2702356 Hanger, Lower, Reg Plate | Hanger, Lower, Reg Plate | 1 | $25.29 | Available to order | 1 |
| 9 | T2702357 Trim, Light Plinth, Rubber | Trim, Light Plinth, Rubber | 1 | $7.22 | Available to order | 1 |
| 10 | T2709188 Bracket, Indicator Support, RH | Bracket, Indicator Support, RH | 1 | $14.58 | Available to order | 1 |
| 11 | T2709189 Bracket, Indicator Support, LH | Bracket, Indicator Support, LH | 1 | $14.58 | Available to order | 1 |
| 12 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $8.46 | Available to order | 2 |
| 13 | T3331444 Screw, S/tap, Pan, Torx, M4 x 25 | Screw, S/tap, Pan, Torx, M4 x 25 | 1 | $1.13 | Available to order | 1 |
| 14 | T2702359 Cover, Number Plate Hanger | Cover, Number Plate Hanger | 1 | $15.27 | Out of Stock | Notify Me |
| 15 | T2709190 Rubber, Number Plate Light | Rubber, Number Plate Light | 1 | $6.65 | Available to order | 1 |
| 16 | T3010715 Sleeve, Flanged, 4.5 x 7.5 x 13.5 | Sleeve, Flanged, 4.5 x 7.5 x 13.5 | 1 | $4.30 | Available to order | 1 |
| 17 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Available to order | 1 |
| 18 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 1 | $5.67 | Available to order | 1 |
| 19 | T3020131 Grommet, 9 x 2 x 6 | Grommet, 9 x 2 x 6 | 2 | $2.00 | Available to order | 2 |
| 20 | T3552002 Washer, M6 x 14 x 1 | Washer, M6 x 14 x 1 | 3 | $1.69 | Available to order | 3 |
| 21 | T2700464 Reflector, Red, Circular | Reflector, Red, Circular | 1 | $7.14 | Available to order | 1 |
| 22 | T2702031 Rear Reflector Bracket, Long | Rear Reflector Bracket, Long All Except AU, US, CA, JP, ID, NZ | 1 | $30.70 | Available to order | 1 |
| 22 | T2702032 Rear Reflector Bracket, Short | Rear Reflector Bracket, Short AU, US, CA, JP, ID, NZ Only | 1 | $26.87 | Available to order | 1 |
| 24 | T3330842 Screw, Pan/Hd, TX, M5 x 16, Slv | Screw, Pan/Hd, TX, M5 x 16, Slv | 1 | $2.19 | Available to order | 1 |
| 25 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 3 | $0.97 | Available to order | 3 |
| 26 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
