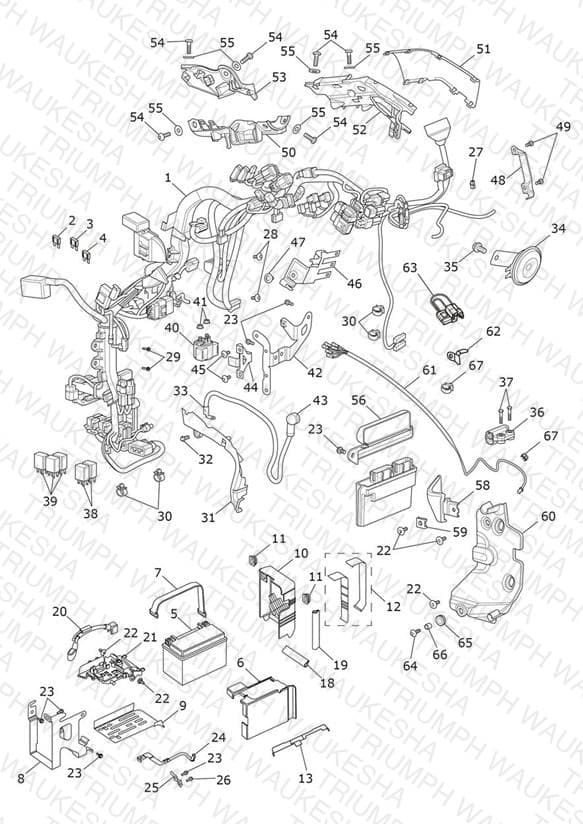

Electrical Equipment - BC0397 >
Parts (68)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503066 Main Harness | Main Harness | 1 | $751.90 | Available to order | 1 |
| 2 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 5 | $4.74 | Out of Stock | Notify Me |
| 3 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 2 | $4.74 | Available to order | 2 |
| 4 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $4.74 | Available to order | 1 |
| 5 | T2500183 Battery | Battery All Markets Except EF/ER/GR/BR/JP | 1 | $125.34 | Available to order | 1 |
| 5 | T2502461 Battery Multipack (10) | Battery Multipack (10) All Markets Except EF/ER/GR/BR/JP | 1 | $986.03 | Out of Stock | Notify Me |
| 5 | T2504608 Spares Kit, Battery | Spares Kit, Battery BR Only | 1 | $113.61 | Obsolete | View Details |
| 5 | T2506406 Spares Kit, Battery | Spares Kit, Battery JP Only - Includes Item 13 | 1 | $231.39 | Out of Stock | Notify Me |
| 5 | T2506715 Kit, Battery, YTX9-BS | Kit, Battery, YTX9-BS EF/ER/GR Markets Only | 1 | $116.06 | Out of Stock | Notify Me |
| 6 | T2502801 Guide, Battery Strap | Guide, Battery Strap | 1 | $10.55 | Available to order | 1 |
| 7 | T2501833 Strap, Battery, Extended | Strap, Battery, Extended | 1 | $9.88 | Available to order | 1 |
| 8 | T2502809 Battery Box, Pressing | Battery Box, Pressing | 1 | $41.63 | Available to order | 1 |
| 9 | T2502802 Tray, Battery | Tray, Battery | 1 | $44.67 | Available to order | 1 |
| 10 | T2502820 Battery Cover | Battery Cover | 1 | $65.62 | Available to order | 1 |
| 10a | T2503995 Gasket, Battery Cover | Gasket, Battery Cover Not Illustrated | 1 | $40.37 | Out of Stock | Notify Me |
| 11 | T3020054 Grommet, Sidepanel | Grommet, Sidepanel | 2 | $2.37 | Out of Stock | Notify Me |
| 12 | T2504790 Kit, Spares, Battery Strap | Kit, Spares, Battery Strap | 1 | $30.44 | Available to order | 1 |
| 13 | T2509555 Spacer, Battery, Mldg | Spacer, Battery, Mldg JP Only | 1 | $7.83 | Out of Stock | Notify Me |
| 18 | T2502804 Seal, Battery Cover, Lower | Seal, Battery Cover, Lower | 1 | $7.42 | Available to order | 1 |
| 19 | T2502805 Seal, Battery Cover, Side | Seal, Battery Cover, Side | 1 | $7.42 | Available to order | 1 |
| 20 | T2502813 Lead, Battery Positive | Lead, Battery Positive | 1 | $11.56 | Available to order | 1 |
| 21 | T2502832 Lid, Battery Box | Lid, Battery Box | 1 | $45.90 | Available to order | 1 |
| 22 | T3330858 Bolt, But/Hd, M6 x 15, Shld, Slv | Bolt, But/Hd, M6 x 15, Shld, Slv | 5 | $2.55 | Available to order | 5 |
| 23 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 7 | $1.72 | Available to order | 7 |
| 24 | T2502866 Lead, Earth | Lead, Earth | 1 | $10.28 | Available to order | 1 |
| 25 | T2502823 Bracket, Earth | Bracket, Earth | 1 | $18.75 | Available to order | 1 |
| 26 | T3050338 Screw, Cap/Hd, M6 x 12, Slv | Screw, Cap/Hd, M6 x 12, Slv | 1 | $5.14 | Available to order | 1 |
| 27 | T2502511 Shorting Link, Non DRL | Shorting Link, Non DRL | 1 | $6.83 | Available to order | 1 |
| 28 | T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv | Bolt, But/Hd, M5 x 11, Shld, Slv | 2 | $5.02 | Available to order | 2 |
| 29 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc | 2 | $1.11 | Available to order | 2 |
| 30 | T3700182 Clip, Omega, 18mm x 14mm | Clip, Omega, 18mm x 14mm | 4 | $4.12 | Available to order | 4 |
| 31 | T2501772 Moulding, Starter Cable Guide | Moulding, Starter Cable Guide | 1 | $15.95 | Available to order | 1 |
| 32 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 33 | T2502814 Lead, Starter | Lead, Starter | 1 | $74.12 | Available to order | 1 |
| 34 | T2507002 Horn Assy, 440 Hz | Horn Assy, 440 Hz All Except BR | 1 | $53.24 | Available to order | 1 |
| 34 | T2500113 Horn Assembly, Hi Tone | Horn Assembly, Hi Tone BR Only | 1 | $41.82 | Available to order | 1 |
| 35 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.74 | Available to order | 1 |
| 36 | T2502455 Fall Detection Switch | Fall Detection Switch | 1 | $84.58 | Available to order | 1 |
| 37 | T3330390 Screw, H/Hd, M4 x 25, Slv, Enc | Screw, H/Hd, M4 x 25, Slv, Enc | 2 | $2.74 | Available to order | 2 |
| 38 | T2507728 Relay, Changeover | Relay, Changeover | 2 | $18.50 | Available to order | 2 |
| 39 | T2507727 Relay, Normally Open | Relay, Normally Open | 3 | $20.12 | Available to order | 3 |
| 40 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 41 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 42 | T2502831 Bracket, Battery Box, Front | Bracket, Battery Box, Front | 1 | $52.29 | Out of Stock | Notify Me |
| 43 | T2501557 Cover, Starter Lead | Cover, Starter Lead | 1 | $5.42 | Available to order | 1 |
| 44 | T2502838 Bracket, Starter Solenoid | Bracket, Starter Solenoid | 1 | $6.65 | Out of Stock | Notify Me |
| 45 | T3330943 Screw, But/Hd, M5 x 14, Slv | Screw, But/Hd, M5 x 14, Slv | 2 | $4.92 | Available to order | 2 |
| 46 | T2502824 Bracket, O2 Connectors, Moulding | Bracket, O2 Connectors, Moulding | 1 | $7.22 | Out of Stock | Notify Me |
| 47 | T3701121 Rivet, Plastic, Screw Type | Rivet, Plastic, Screw Type | 1 | $1.21 | Available to order | 1 |
| 48 | T2502848 Harness Guide, Headstock, Moulding | Harness Guide, Headstock, Moulding | 1 | $7.52 | Available to order | 1 |
| 49 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $5.67 | Available to order | 2 |
| 50 | T2503720 Moulding, Coils Bracket | Moulding, Coils Bracket | 1 | $11.41 | Backorder — Late August 2026 | 1 |
| 51 | T2502925 Harness Conduit, Spine, Upper | Harness Conduit, Spine, Upper | 1 | $7.02 | Available to order | 1 |
| 52 | T2502835 Harness Conduit, Spine, Lower | Harness Conduit, Spine, Lower | 1 | $6.73 | Out of Stock | Notify Me |
| 53 | T2502815 Bracket, Swithcube Connector, Moulding | Bracket, Swithcube Connector, Moulding | 1 | $16.74 | Out of Stock | Notify Me |
| 54 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 55 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 6 | $1.72 | Available to order | 6 |
| 56 | T2503070 Strap, ECU, Moulding | Strap, ECU, Moulding | 1 | $9.57 | Available to order | 1 |
| 58 | T2502850 Intake Shield, RHS, Moulding | Intake Shield, RHS, Moulding | 1 | $12.38 | Available to order | 1 |
| 59 | T3351021 Nut, Captive, M6, Slv | Nut, Captive, M6, Slv | 1 | $1.79 | Available to order | 1 |
| 60 | T2502868 Packaging Cover, RHS, Moulding | Packaging Cover, RHS, Moulding | 1 | $42.51 | Backorder — Late August 2026 | 1 |
| 61 | T2509072 Subharness, Rear Light | Subharness, Rear Light | 1 | $85.52 | Available to order | 1 |
| 62 | T2501674 Guide, Rear Light Harness | Guide, Rear Light Harness | 1 | $5.60 | Out of Stock | Notify Me |
| 63 | T2503438 Auxiliary Fly Lead, JP | Auxiliary Fly Lead, JP JP Only | 1 | $30.83 | Out of Stock | Notify Me |
| 64 | T3330952 Screw, Butn/Hd, M5 x 20, Slv | Screw, Butn/Hd, M5 x 20, Slv | 1 | $2.48 | Available to order | 1 |
| 65 | T3020050 Grommet | Grommet | 1 | $5.14 | Available to order | 1 |
| 66 | T3010297 Compression Limiter, Id 6.5 | Compression Limiter, Id 6.5 | 1 | $4.30 | Available to order | 1 |
| 67 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.24 | Available to order | 1 |
