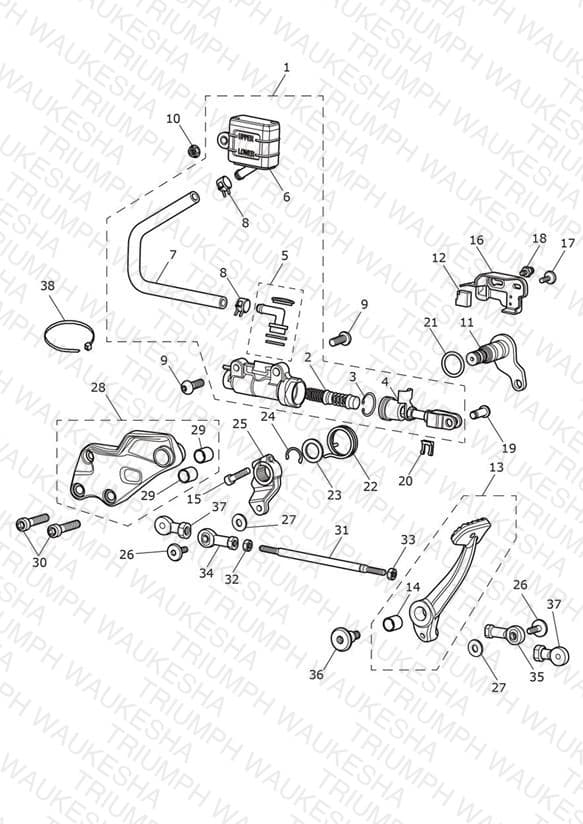

Rear Brake Master Cylinder, Reservoir & Pedal
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2027021 Master Cylinder Assembly, Rear | Master Cylinder Assembly, Rear | 1 | $308.07 | Out of Stock | Notify Me |
| 2 | T2022110 Piston Set, Rear Master Cylinder | Piston Set, Rear Master Cylinder | 1 | $68.42 | Available to order | 1 |
| 3 | T2027015 Push Rod Assy, M/Cyl, Rear | Push Rod Assy, M/Cyl, Rear | 1 | $43.42 | Out of Stock | Notify Me |
| 4 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 5 | T2023207 Connector Set | Connector Set | 1 | $28.00 | Available to order | 1 |
| 6 | T2024080 M/Cyl Reservoir Assy | M/Cyl Reservoir Assy | 1 | $46.52 | Available to order | 1 |
| 7 | T2027022 Hose, Reservoir, MCyl, Rear | Hose, Reservoir, MCyl, Rear | 1 | $44.09 | Available to order | 1 |
| 8 | T2023188 Reservoir Hose Clip | Reservoir Hose Clip | 2 | $3.50 | Available to order | 2 |
| 9 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 10 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 11 | T2027028 Pivot Shaft, Brake Pedal | Pivot Shaft, Brake Pedal | 1 | $195.81 | Available to order | 1 |
| 12 | T2022155 Switch, Brake, SPDT | Switch, Brake, SPDT | 1 | $44.47 | Available to order | 1 |
| 13 | T2027024 Pedal, Brake, Fwd | Pedal, Brake, Fwd | 1 | $140.69 | Available to order | 1 |
| 14 | T3750020 Bush, PAP, 1215 P14 | Bush, PAP, 1215 P14 | 1 | $7.30 | Available to order | 1 |
| 15 | T3050333 Screw, Cap/Hd, M6 x 25, Slv | Screw, Cap/Hd, M6 x 25, Slv | 1 | $7.62 | Available to order | 1 |
| 16 | T2027029 Bracket, Rear Brake Switch | Bracket, Rear Brake Switch | 1 | $12.38 | Available to order | 1 |
| 17 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 1 | $8.46 | Available to order | 1 |
| 18 | T2027725 Pin, Brake Switch, Rear, M5 | Pin, Brake Switch, Rear, M5 | 1 | $36.21 | Available to order | 1 |
| 19 | T3000301 Pin, Clevis, 8 x 13.7 | Pin, Clevis, 8 x 13.7 | 1 | $4.30 | Available to order | 1 |
| 20 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin | 1 | $6.07 | Available to order | 1 |
| 21 | T3550950 Wavy Washer | Wavy Washer | 1 | $4.12 | Available to order | 1 |
| 22 | T2023102 Spring, Brake Pedal Return | Spring, Brake Pedal Return | 1 | $7.52 | Available to order | 1 |
| 23 | T3550293 Washer, 24 x 17 x 1.5 | Washer, 24 x 17 x 1.5 | 1 | $6.29 | Available to order | 1 |
| 24 | T3503053 C-Clip, 14.9 x 19.4 x 1 | C-Clip, 14.9 x 19.4 x 1 | 1 | $2.55 | Available to order | 1 |
| 25 | T2027032 Clamp, Rear Brake M/Cyl, Fwd | Clamp, Rear Brake M/Cyl, Fwd | 1 | $13.01 | Available to order | 1 |
| 26 | T3330275 Screw, But/Hd, Tx, M8 x 20, Enc | Screw, But/Hd, Tx, M8 x 20, Enc | 2 | $3.59 | Available to order | 2 |
| 27 | T3550184 Washer, Hardened, 8.2 x 18.7 x 2 | Washer, Hardened, 8.2 x 18.7 x 2 | 2 | $2.25 | Available to order | 2 |
| 28 | T2024937 Bracket, M/Cyl, Rear, Fwd | Bracket, M/Cyl, Rear, Fwd | 1 | $102.64 | Available to order | 1 |
| 29 | T3750014 Bush | Bush | 2 | $84.58 | Out of Stock | Notify Me |
| 30 | T3332127 Cap Head Screw, M10 x 50 | Cap Head Screw, M10 x 50 | 2 | $11.71 | Available to order | 2 |
| 31 | T2028091 Rod, Brake, M8, Slv | Rod, Brake, M8, Slv | 1 | $26.69 | Available to order | 1 |
| 32 | T3350309 Nut, LH, M8, Slv | Nut, LH, M8, Slv | 1 | $1.79 | Available to order | 1 |
| 33 | T3350303 Nut, M8, Silver | Nut, M8, Silver | 1 | $0.81 | Backorder — Early August 2026 | 1 |
| 34 | T2026142 Rod End, Female, LH, M8, Slv | Rod End, Female, LH, M8, Slv | 1 | $35.28 | Available to order | 1 |
| 35 | T2044190 Rod End, Female M8 | Rod End, Female M8 | 1 | $63.70 | Available to order | 1 |
| 36 | T3331520 Bolt, Shld, M8 x 1.25, Slv, Enc | Bolt, Shld, M8 x 1.25, Slv, Enc | 1 | $10.63 | Available to order | 1 |
| 37 | T2044195 Boot, M8 Rod End | Boot, M8 Rod End | 2 | $6.94 | Available to order | 2 |
| 38 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
