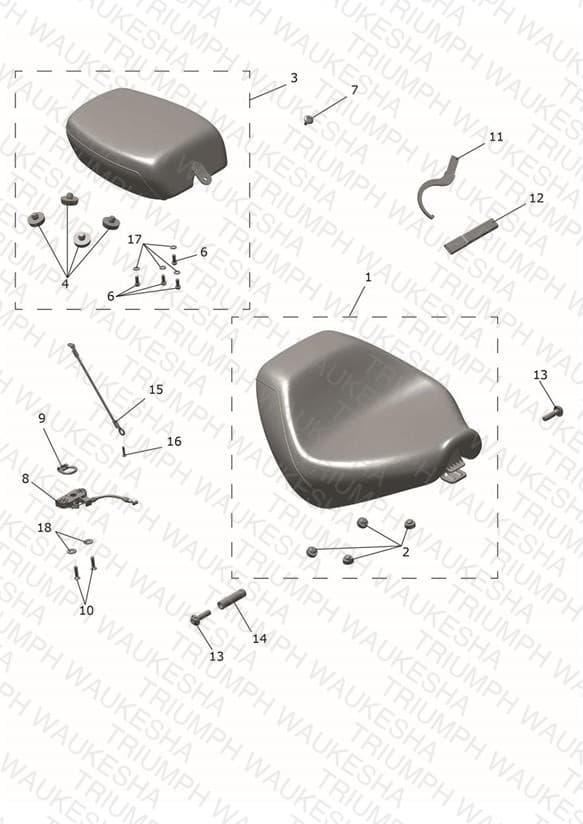

Seat Assy & Toolkit
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2315531 Seat, Rider | Seat, Rider | 1 | $259.44 | Available to order | 1 |
| 2 | T2307368 Rubber Foot, Seat | Rubber Foot, Seat | 4 | $3.70 | Available to order | 4 |
| 3 | T2314459 Pillion Seat | Pillion Seat | 1 | $237.08 | Out of Stock | Notify Me |
| 4 | T2307371 Rubber Foot, Seat | Rubber Foot, Seat | 4 | $3.70 | Available to order | 4 |
| 6 | T3200670 Bolt, TX, Lghtd, M6 x 16, Enc | Bolt, TX, Lghtd, M6 x 16, Enc | 4 | $3.56 | Available to order | 4 |
| 7 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 1 | $4.30 | Available to order | 1 |
| 8 | T2307244 Latch, Seat | Latch, Seat | 1 | $34.87 | Backorder — Early August 2026 | 1 |
| 9 | T2310080 Pull Ring, Latch | Pull Ring, Latch | 1 | $11.48 | Available to order | 1 |
| 10 | T3330184 Screw, C'sunk Tx, M6 x 25, Slv | Screw, C'sunk Tx, M6 x 25, Slv | 2 | $1.27 | Available to order | 2 |
| 11 | T2307786 C Spanner, Dia 76mm | C Spanner, Dia 76mm | 1 | $33.08 | Available to order | 1 |
| 12 | T2307787 Extension Handle | Extension Handle | 1 | $12.16 | Available to order | 1 |
| 13 | T3334411 Bolt, TX, M10 x 35 | Bolt, TX, M10 x 35 | 2 | $4.92 | Available to order | 2 |
| 14 | T2307140 Spacer, Aluminium, Seat Mount | Spacer, Aluminium, Seat Mount | 1 | $8.01 | Out of Stock | Notify Me |
| 15 | T2309807 Seat Lanyard | Seat Lanyard | 1 | $26.69 | Available to order | 1 |
| 16 | T3331432 Screw, Pan/Hd, Torx, M4 x 18, Slv | Screw, Pan/Hd, Torx, M4 x 18, Slv | 1 | $1.06 | Backorder — Mid August 2026 | 1 |
| 17 | T2311447 Washer, M6 x 12 x 1.6, S/S | Washer, M6 x 12 x 1.6, S/S | 4 | $0.47 | Out of Stock | Notify Me |
| 18 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.21 | Available to order | 2 |
