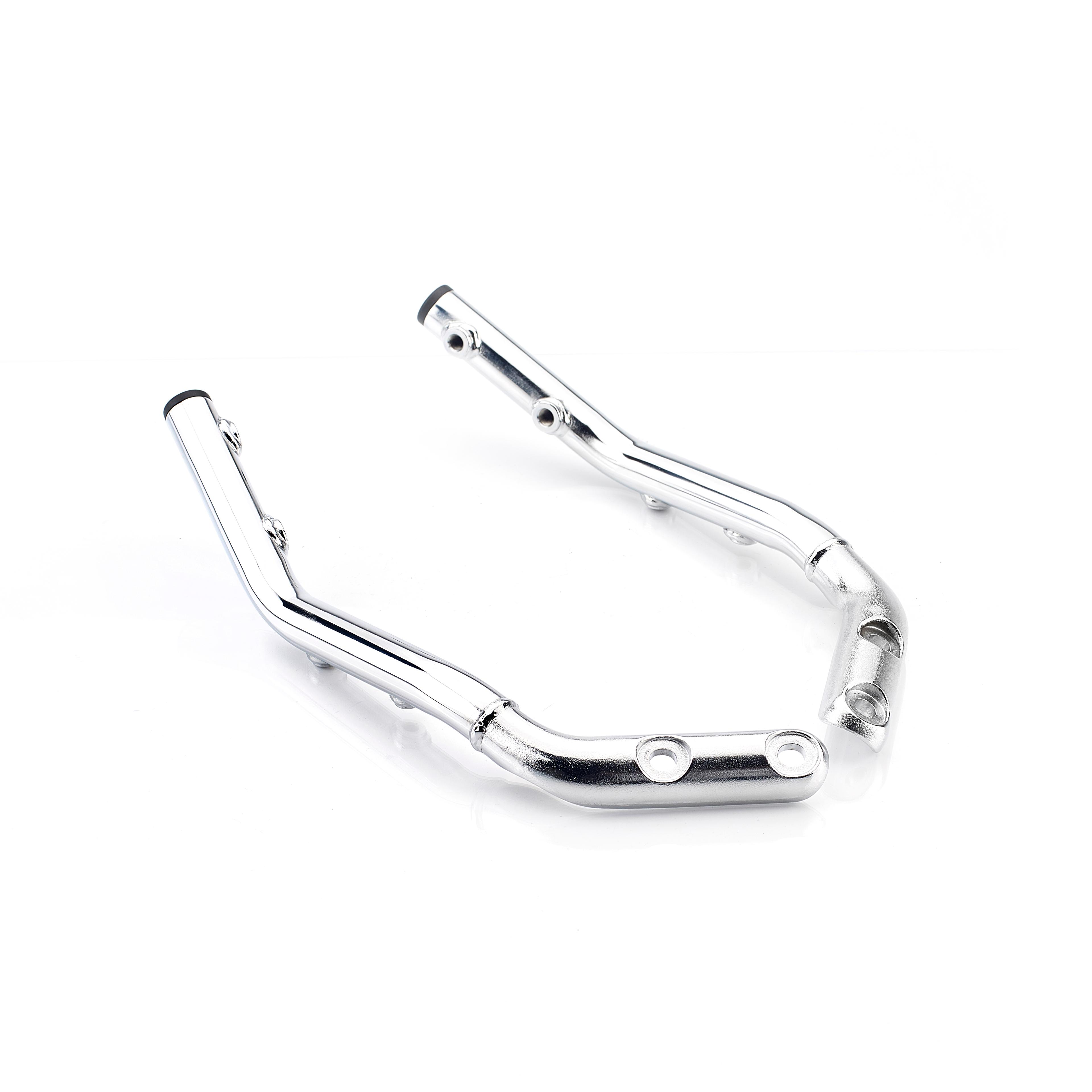

Backrest, Passenger, Chrome Kit
Schematic
Parts (8)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9750803 Passenger Backrest, Chrome, Kit | Passenger Backrest, Chrome, Kit Not compatible with A9708321 or A9750734. Also requires A9750732 or A2308914 or A9750773 | 1 | $390.00 | Out of Stock | Notify Me |
| 2 | T9750804 Backrest, Upright, RH, Chrome | Backrest, Upright, RH, Chrome | 1 | $166.86 | Backorder — Early October 2026 | 1 |
| 3 | T9750805 Backrest, Upright, LH, Chrome | Backrest, Upright, LH, Chrome | 1 | $166.86 | Available to order | 1 |
| 5 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 4 | $3.50 | Available to order | 4 |
| 6 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 4 | $0.97 | Available to order | 4 |
| 7 | T3951060 Badge, Flat, Type 1 | Badge, Flat, Type 1 | 1 | $13.33 | Available to order | 1 |
| 8 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
| 9 | T2308946 Plug, Tube End | Plug, Tube End | 2 | $1.21 | Available to order | 2 |
