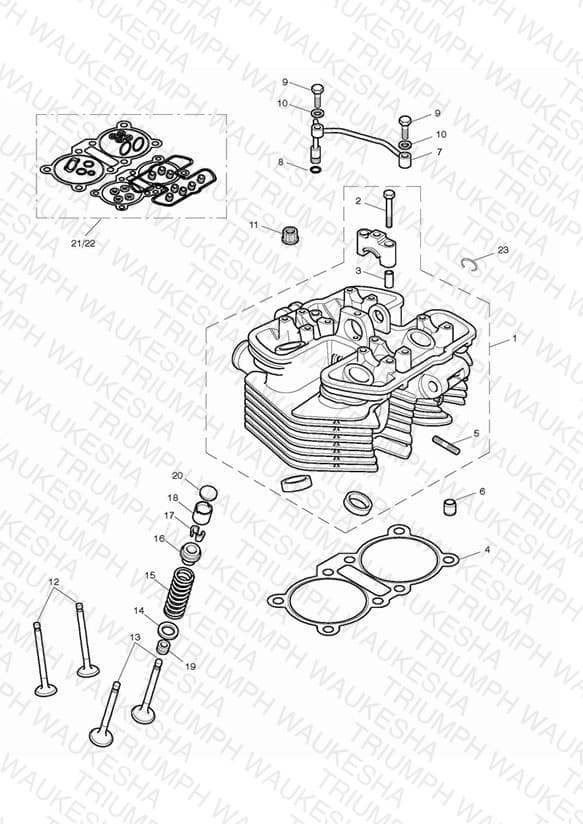

Cylinder Head & Valves
Parts (73)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150121 Cylinder Head, Black | Cylinder Head, Black | 1 | $1772.43 | Out of Stock | Notify Me |
| 2 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 12 | $3.70 | Available to order | 12 |
| 3 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 12 | $3.90 | Available to order | 12 |
| 4 | T1152915 Gasket, Cyl Head, 2 Cyl, 90 Bore | Gasket, Cyl Head, 2 Cyl, 90 Bore | 1 | $77.17 | Available to order | 1 |
| 5 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 4 | $2.74 | Available to order | 4 |
| 6 | T3000103 Dowel, Hollow, 12 x 14 | Dowel, Hollow, 12 x 14 | 2 | $4.08 | Available to order | 2 |
| 7 | T1210644 Pipe, Oil, Cam Feed | Pipe, Oil, Cam Feed | 1 | $30.42 | Out of Stock | Notify Me |
| 8 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 1 | $2.10 | Available to order | 1 |
| 9 | T1210242 Bolt, Banjo, M6 x 20 | Bolt, Banjo, M6 x 20 | 2 | $11.03 | Available to order | 2 |
| 10 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 2 | $1.05 | Available to order | 2 |
| 11 | T3350071 Nut, M10 x 1.25 | Nut, M10 x 1.25 | 8 | $10.81 | Available to order | 8 |
| 12 | T1139091 Valve, Input | Valve, Input | 4 | $66.52 | Available to order | 4 |
| 13 | T1139092 Valve, Exhaust | Valve, Exhaust | 4 | $67.47 | Available to order | 4 |
| 14 | T1131992 Thrust Washer | Thrust Washer | 8 | $6.83 | Available to order | 8 |
| 15 | T1130086 Spring valve | Spring valve | 8 | $10.25 | Obsolete | View Details |
| 16 | T1130053 Retainer, Spring, Valve | Retainer, Spring, Valve | 8 | $1.40 | Available to order | 8 |
| 17 | T1135500 Collet, Valve, 5.5mm | Collet, Valve, 5.5mm | 16 | $1.16 | Available to order | 16 |
| 18 | T1130065 Bucket, Tappet | Bucket, Tappet | 8 | $15.88 | Available to order | 8 |
| 19 | T3600004 Oil Seal | Oil Seal | 8 | $15.60 | Available to order | 8 |
| 20 | T1130200 Shim Tappet, 2.000mm | Shim Tappet, 2.000mm | — | $10.18 | Available to order | 1 |
| 20 | T1130202 Shim Tappet, 2.025mm | Shim Tappet, 2.025mm | — | $8.18 | Available to order | 1 |
| 20 | T1130205 Shim, Tappet, 2.050 | Shim, Tappet, 2.050 | — | $10.18 | Available to order | 1 |
| 20 | T1130207 Shim Tappet, 2.075mm | Shim Tappet, 2.075mm | — | $8.18 | Available to order | 1 |
| 20 | T1130210 Shim, Tappet, 2.100 | Shim, Tappet, 2.100 | — | $10.18 | Available to order | 1 |
| 20 | T1130212 Shim Tappet, 2.125mm | Shim Tappet, 2.125mm | — | $10.18 | Available to order | 1 |
| 20 | T1130215 Shim, Tappet, 2.150 | Shim, Tappet, 2.150 | — | $10.18 | Available to order | 1 |
| 20 | T1130217 Shim Tappet, 2.175mm | Shim Tappet, 2.175mm | — | $8.18 | Available to order | 1 |
| 20 | T1130220 Shim, Tappet, 2.200 | Shim, Tappet, 2.200 | — | $10.18 | Available to order | 1 |
| 20 | T1130222 Shim Tappet, 2.225mm | Shim Tappet, 2.225mm | — | $8.18 | Available to order | 1 |
| 20 | T1130225 Shim, Tappet, 2.250 | Shim, Tappet, 2.250 | — | $10.18 | Available to order | 1 |
| 20 | T1130227 Shim Tappet, 2.275mm | Shim Tappet, 2.275mm | — | $5.14 | Available to order | 1 |
| 20 | T1130230 Shim, Tappet, 2.300 | Shim, Tappet, 2.300 | — | $10.18 | Available to order | 1 |
| 20 | T1130232 Shim Tappet, 2.325mm | Shim Tappet, 2.325mm | — | $10.01 | Available to order | 1 |
| 20 | T1130235 Shim, Tappet, 2.350 | Shim, Tappet, 2.350 | — | $10.18 | Available to order | 1 |
| 20 | T1130237 Shim Tappet, 2.375mm | Shim Tappet, 2.375mm | — | $8.18 | Available to order | 1 |
| 20 | T1130240 Shim, Tappet, 2.400 | Shim, Tappet, 2.400 | — | $10.18 | Available to order | 1 |
| 20 | T1130242 Shim Tappet, 2.425mm | Shim Tappet, 2.425mm | — | $10.18 | Available to order | 1 |
| 20 | T1130245 Shim, Tappet, 2.450 | Shim, Tappet, 2.450 | — | $10.18 | Available to order | 1 |
| 20 | T1130247 Shim Tappet, 2.475mm | Shim Tappet, 2.475mm | — | $10.18 | Available to order | 1 |
| 20 | T1130250 Shim, Tappet, 2.500 | Shim, Tappet, 2.500 | — | $10.18 | Available to order | 1 |
| 20 | T1130252 Shim Tappet, 2.525mm | Shim Tappet, 2.525mm | — | $10.18 | Available to order | 1 |
| 20 | T1130255 Shim, Tappet, 2.550 | Shim, Tappet, 2.550 | — | $10.18 | Available to order | 1 |
| 20 | T1130257 Shim Tappet, 2.575mm | Shim Tappet, 2.575mm | — | $8.18 | Available to order | 1 |
| 20 | T1130260 Shim, Tappet, 2.600 | Shim, Tappet, 2.600 | — | $10.18 | Available to order | 1 |
| 20 | T1130262 Shim Tappet, 2.625mm | Shim Tappet, 2.625mm | — | $10.18 | Available to order | 1 |
| 20 | T1130265 Shim, Tappet, 2.650 | Shim, Tappet, 2.650 | — | $10.18 | Available to order | 1 |
| 20 | T1130267 Shim Tappet, 2.675mm | Shim Tappet, 2.675mm | — | $8.18 | Available to order | 1 |
| 20 | T1130270 Shim, Tappet, 2.700 | Shim, Tappet, 2.700 | — | $10.18 | Available to order | 1 |
| 20 | T1130272 Shim Tappet, 2.725mm | Shim Tappet, 2.725mm | — | $10.18 | Available to order | 1 |
| 20 | T1130275 Shim, Tappet, 2.750 | Shim, Tappet, 2.750 | — | $10.18 | Available to order | 1 |
| 20 | T1130277 Shim Tappet, 2.775mm | Shim Tappet, 2.775mm | — | $8.18 | Available to order | 1 |
| 20 | T1130280 Shim, Tappet, 2.800 | Shim, Tappet, 2.800 | — | $10.18 | Available to order | 1 |
| 20 | T1130282 Shim Tappet, 2.825mm | Shim Tappet, 2.825mm | — | $8.18 | Available to order | 1 |
| 20 | T1130285 Shim, Tappet, 2.850 | Shim, Tappet, 2.850 | — | $10.18 | Available to order | 1 |
| 20 | T1130287 Shim Tappet, 2.875mm | Shim Tappet, 2.875mm | — | $8.18 | Available to order | 1 |
| 20 | T1130290 Shim, Tappet, 2.900 | Shim, Tappet, 2.900 | — | $10.18 | Available to order | 1 |
| 20 | T1130292 Shim Tappet, 2.925mm | Shim Tappet, 2.925mm | — | $10.18 | Available to order | 1 |
| 20 | T1130295 Shim, Tappet, 2.950 | Shim, Tappet, 2.950 | — | $10.18 | Available to order | 1 |
| 20 | T1130297 Shim Tappet, 2.975mm | Shim Tappet, 2.975mm | — | $10.18 | Available to order | 1 |
| 20 | T1130300 Shim Tappet, 3.000mm | Shim Tappet, 3.000mm | — | $10.18 | Available to order | 1 |
| 20 | T1130302 Shim Tappet, 3.025mm | Shim Tappet, 3.025mm | — | $10.18 | Available to order | 1 |
| 20 | T1130305 Shim, Tappet, 3.050 | Shim, Tappet, 3.050 | — | $10.18 | Available to order | 1 |
| 20 | T1130307 Shim Tappet, 3.075mm | Shim Tappet, 3.075mm | — | $10.18 | Available to order | 1 |
| 20 | T1130310 Shim, Tappet, 3.100 | Shim, Tappet, 3.100 | — | $10.18 | Available to order | 1 |
| 20 | T1130312 Shim Tappet, 3.125mm | Shim Tappet, 3.125mm | — | $10.18 | Available to order | 1 |
| 20 | T1130315 Shim, Tappet, 3.150 | Shim, Tappet, 3.150 | — | $10.18 | Available to order | 1 |
| 20 | T1130317 Shim Tappet, 3.175mm | Shim Tappet, 3.175mm | — | $10.18 | Available to order | 1 |
| 20 | T1130320 Shim, Tappet, 3.200 | Shim, Tappet, 3.200 | — | $10.18 | Available to order | 1 |
| 21 | T3990062 Gasket Kit Full | Gasket Kit Full > Eng No 456551 | 1 | $441.78 | Available to order | 1 |
| 21 | T3990113 Gasket Kit Full | Gasket Kit Full Eng No 456552 > | 1 | $425.91 | Available to order | 1 |
| 22 | T3990064 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head > Eng No 456551 | 1 | $351.55 | Backorder — Early August 2026 | 1 |
| 22 | T3990114 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head Eng No 456552 > | 1 | $360.68 | Out of Stock | Notify Me |
| 23 | T3500102 Circlip, Valve Guide Retainer | Circlip, Valve Guide Retainer | 8 | $2.37 | Available to order | 8 |
