Side Mounted Number Plate Kit

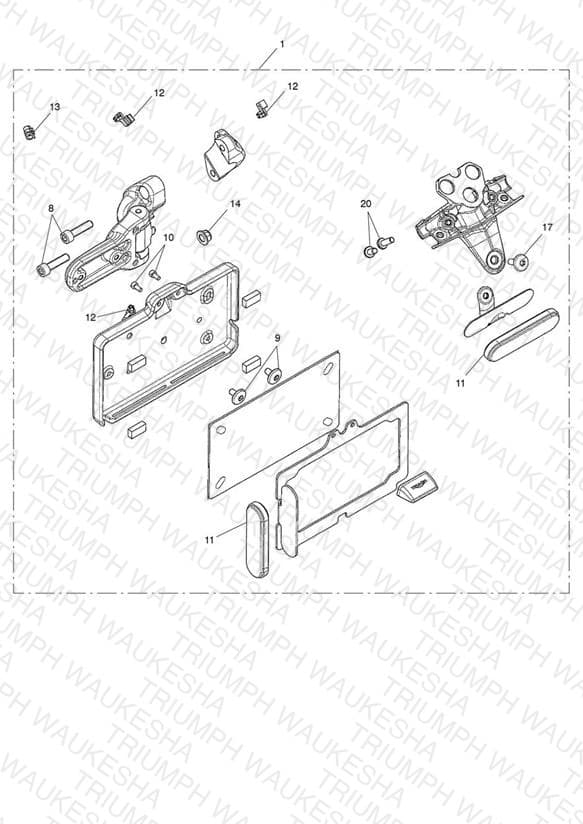

Schematic
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9750730 Side Mounted Number Plate Kit | Side Mounted Number Plate Kit Not compatible with A9518218, A9518293, A9510663. Market restrictions apply US kit ONLY. | 1 | $270.00 | Available to order | 1 |
| 8 | T3050323 Screw, Cap/Hd, M8 x 30, Slv | Screw, Cap/Hd, M8 x 30, Slv | 2 | $4.74 | Available to order | 2 |
| 9 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 2 | $4.42 | Available to order | 2 |
| 10 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 2 | $5.14 | Available to order | 2 |
| 11 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 2 | $6.14 | Available to order | 2 |
| 12 | T3700162 Clip, Cable/Pipe | Clip, Cable/Pipe | 3 | $1.13 | Available to order | 3 |
| 13 | T3701103 Clip, Twin, 3.9-7 | Clip, Twin, 3.9-7 | 1 | $3.07 | Backorder — Mid September 2026 | 1 |
| 14 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
| 17 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 1 | $3.39 | Available to order | 1 |
| 18 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 2 | $0.89 | Available to order | 2 |
| 19 | T2306572 Foam, Tape, Cover Panel | Foam, Tape, Cover Panel | 1 | $5.78 | Available to order | 1 |
| 20 | T3331044 Screw, Pan/Hd, Tx, M6 x 16, Slv | Screw, Pan/Hd, Tx, M6 x 16, Slv | 2 | $0.97 | Available to order | 2 |
| 21 | A9930007 Cleaning Swab | Cleaning Swab | 3 | $1.62 | Available to order | 3 |
| 22 | T3330955 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 3 | $8.46 | Available to order | 3 |
