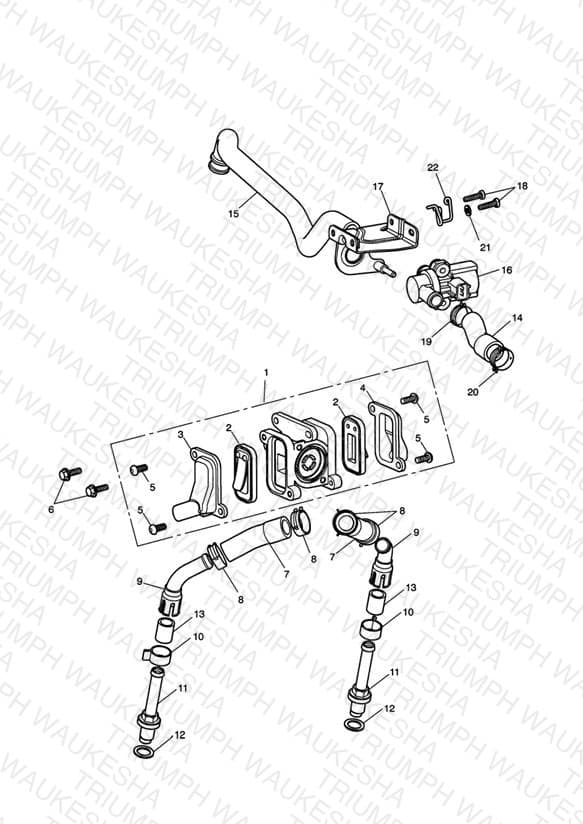

Emissions Control 317247 >
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1250500 Secondary Air, Reed Valve Assy | Secondary Air, Reed Valve Assy Aluminium Silver | 1 | $85.52 | Available to order | 1 |
| 2 | T1250151 Reed Valve | Reed Valve Claret | 2 | $59.87 | Available to order | 2 |
| 3 | T1250035 Cover, Reed Valve, RH | Cover, Reed Valve, RH Fusion White | 1 | $16.66 | Backorder — Late August 2026 | 1 |
| 4 | T1250030 Cover, Reed Valve, LH | Cover, Reed Valve, LH Jet Black | 1 | $16.66 | Backorder — Late August 2026 | 1 |
| 5 | T1250040 Screw, M5, Sai | Screw, M5, Sai | 4 | $3.33 | Available to order | 4 |
| 6 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 7 | T1250060 Pipe, Air, ID 9.5mm | Pipe, Air, ID 9.5mm | 2 | $11.56 | Out of Stock | Notify Me |
| 8 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 4 | $2.25 | Out of Stock | Notify Me |
| 9 | T1250045 Pipe assembly | Pipe assembly | 2 | $17.37 | Obsolete | View Details |
| 10 | T3700083 Clip, Hose, Oetiker, Stepless | Clip, Hose, Oetiker, Stepless | 2 | $7.22 | Available to order | 2 |
| 11 | T1250065 Pipe, ID 8mm, M12 | Pipe, ID 8mm, M12 | 2 | $24.05 | Out of Stock | Notify Me |
| 12 | T1250001 Washer | Washer | 2 | $2.14 | Obsolete | View Details |
| 13 | T1250055 Seal | Seal | 2 | $15.54 | Available to order | 2 |
| 14 | T1250560 Pipe, Feed, Sai, Short | Pipe, Feed, Sai, Short | 1 | $25.29 | Out of Stock | Notify Me |
| 15 | T1250600 Pipe, Feed, Sai | Pipe, Feed, Sai | 1 | $25.29 | Available to order | 1 |
| 16 | T1250522 Solenoid, SAI | Solenoid, SAI | 1 | $98.85 | Available to order | 1 |
| 17 | T1250550 Bracket, Sai Avc Mount | Bracket, Sai Avc Mount | 1 | $59.87 | Out of Stock | Notify Me |
| 18 | T3330648 Screw, Pan/Hd, Tx, M5 x 20, Slv | Screw, Pan/Hd, Tx, M5 x 20, Slv | 2 | $2.63 | Available to order | 2 |
| 19 | T3700050 Hose Clip, Dia 19.5-22 x 8mm | Hose Clip, Dia 19.5-22 x 8mm | 1 | $3.77 | Available to order | 1 |
| 20 | T3700066 Hose Clip, 22.7-27.5mm | Hose Clip, 22.7-27.5mm | 1 | $16.83 | Available to order | 1 |
| 21 | T3550249 Washer, 11 x 5.1 x 0.8 | Washer, 11 x 5.1 x 0.8 | 1 | $2.25 | Available to order | 1 |
| 22 | T1250513 Wire Cable Guide | Wire Cable Guide | 1 | $5.02 | Out of Stock | Notify Me |
