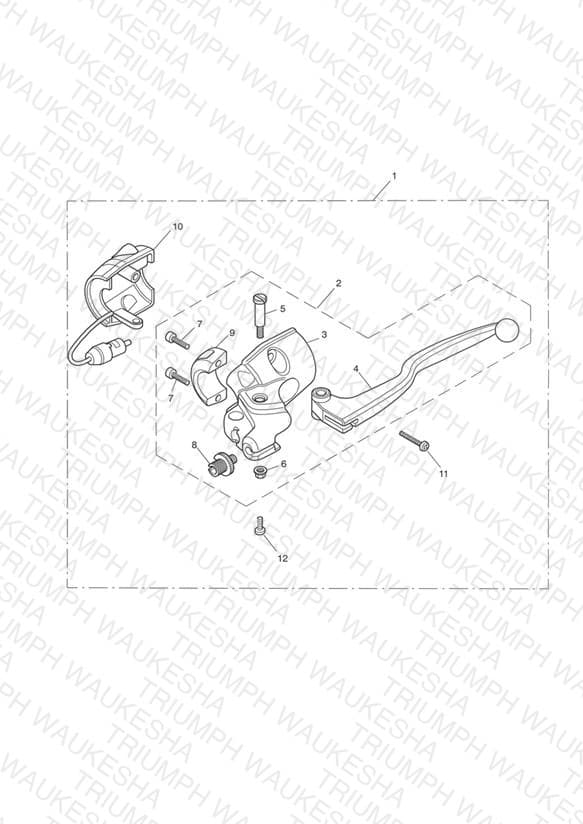

Clutch Controls and Switches - Bonneville T100
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2046011 Switch Cube Assy, LH | Switch Cube Assy, LH > 210261 | 1 | $264.24 | Available to order | 1 |
| 1 | T2046030 Switch Cube Assy, LH | Switch Cube Assy, LH 210262 > | 1 | $264.24 | Available to order | 1 |
| 2 | T2046000 Clutch Lever Assy | Clutch Lever Assy > 210261 | 1 | $69.50 | Available to order | 1 |
| 2 | T2046002 Clutch Lever Assy, Adj | Clutch Lever Assy, Adj 210262 > | 1 | $93.28 | Available to order | 1 |
| 3 | T2046010 Housing, Clutch Lever | Housing, Clutch Lever > 210261 | 1 | $41.91 | Available to order | 1 |
| 3 | T2046022 Housing, Clutch Lever | Housing, Clutch Lever 210262 > | 1 | $43.91 | Available to order | 1 |
| 4 | T2046001 Lever, Clutch | Lever, Clutch > 210261 | 1 | $65.49 | Available to order | 1 |
| 4 | T2046021 Adjustable Clutch Lever | Adjustable Clutch Lever 210262 > | 1 | $87.92 | Available to order | 1 |
| 5 | T2046515 Bolt, Clutch Pivot | Bolt, Clutch Pivot > 210261 - PART NO LONGER AVAILABLE | 1 | $2.85 | Obsolete | View Details |
| 5 | T2046524 Pivot Bolt | Pivot Bolt 210262 > | 1 | $2.63 | Available to order | 1 |
| 6 | T2046521 Nut, Pivot Bolt | Nut, Pivot Bolt | 1 | $1.21 | Available to order | 1 |
| 7 | T2046004 Screw, M6 x 20 | Screw, M6 x 20 | 2 | $3.77 | Available to order | 2 |
| 8 | T2046520 Adjuster Screw | Adjuster Screw | 1 | $8.53 | Available to order | 1 |
| 9 | T2026004 Clamp, Handlebar | Clamp, Handlebar | 1 | $17.49 | Available to order | 1 |
| 10 | T2046015 Switch Set, LH | Switch Set, LH | 1 | $165.39 | Available to order | 1 |
| 11 | T2046008 Screw, Phil Pan HD, M5 x 20, AD | Screw, Phil Pan HD, M5 x 20, AD | 1 | $2.00 | Available to order | 1 |
| 12 | T2046009 Screw, Phil Pan HD, M5 x 12 | Screw, Phil Pan HD, M5 x 12 | 1 | $1.51 | Available to order | 1 |
