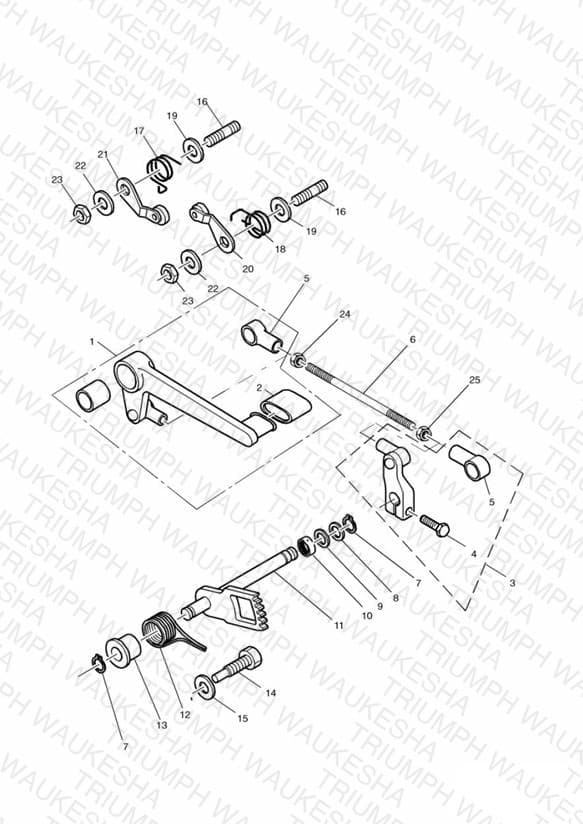

Gear Change Mechanism » 87316
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080373 Gearchange assy | Gearchange assy » 59589 Includes item 8 | 1 | $124.36 | Obsolete | View Details |
| 2 | T2080560 Rubber | Rubber * PART NO LONGER AVAILABLE * | 1 | $2.04 | Obsolete | View Details |
| 3 | T2080310 Clamp assembly | Clamp assembly | 1 | $90.90 | Obsolete | View Details |
| 4 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv M6 x 20mm | 1 | $1.61 | Available to order | 1 |
| 5 | T2085022 Boot, Ball Joint | Boot, Ball Joint | 2 | $9.11 | Obsolete | View Details |
| 6 | T2080308 Rod gear shift | Rod gear shift » 59589 | 1 | $24.58 | Obsolete | View Details |
| 6 | T2080335 Rod gear shift | Rod gear shift 59590 » | 1 | $11.35 | Obsolete | View Details |
| 7 | 3500008-T0301 Circlip | Circlip | 2 | $1.04 | Obsolete | View Details |
| 8 | T3550090 Washer, Thrust | Washer, Thrust | 1 | $4.38 | Available to order | 1 |
| 9 | T3600008 Oil Seal | Oil Seal | 1 | $12.48 | Available to order | 1 |
| 10 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $14.11 | Available to order | 1 |
| 11 | T1190256 Shaft assembly | Shaft assembly | 1 | $137.82 | Obsolete | View Details |
| 12 | T1190160 Return spring | Return spring | 1 | $12.40 | Obsolete | View Details |
| 13 | 1190340-T0301 Bush spring | Bush spring | 1 | $4.07 | Obsolete | View Details |
| 14 | 1190170-T0301 Bolt | Bolt | 1 | $5.24 | Obsolete | View Details |
| 15 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.95 | Available to order | 1 |
| 16 | 3100002-T0301 Stud | Stud M6 x 23mm | 2 | $1.76 | Obsolete | View Details |
| 17 | 1190335-T0301 Spring detent | Spring detent Gears - PART NO LONGER AVAILABLE | 1 | $4.16 | Obsolete | View Details |
| 18 | 1190140-T0301 Spring detent | Spring detent Neutral | 1 | $2.30 | Obsolete | View Details |
| 19 | T3555017 Washer, 6.5 x 12.5 x 0.8 | Washer, 6.5 x 12.5 x 0.8 M6 Hardened | 2 | $3.23 | Available to order | 2 |
| 20 | 1190021-T0301 Detent arm assembly | Detent arm assembly Neutral - ** Part No Longer Available ** | 1 | $23.04 | Obsolete | View Details |
| 21 | 1190022-T0301 Detent arm assembly | Detent arm assembly Gears - ** Part No Longer Available ** | 1 | $11.49 | Obsolete | View Details |
| 22 | T1190192 Collar, Detent Arm | Collar, Detent Arm | 2 | $2.14 | Available to order | 2 |
| 23 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv M6 | 2 | $1.00 | Available to order | 2 |
| 24 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv M6 Left Hand Thread | 1 | $1.61 | Available to order | 1 |
