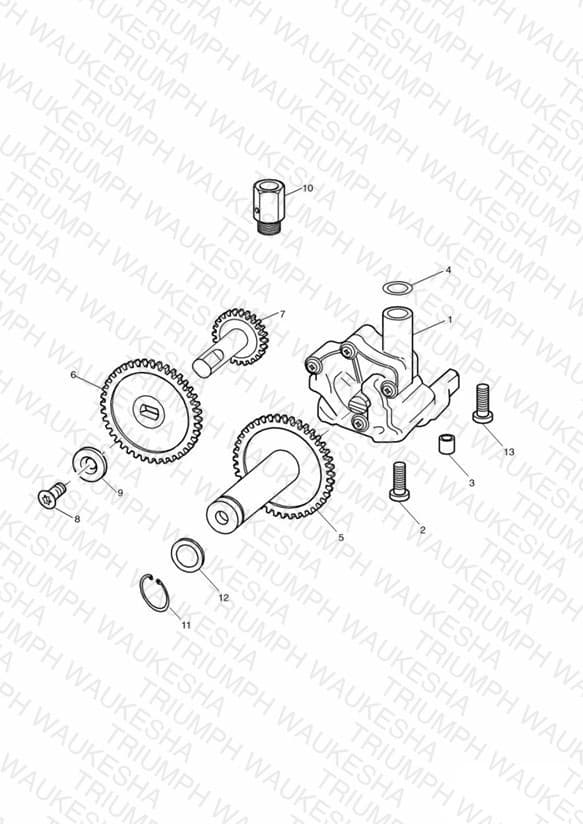

Oil Pump/Drive
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1210509 Oil pump assembly | Oil pump assembly » ENG NO 96990 - * PART NO LONGER AVAILABLE * | 1 | $288.37 | Obsolete | View Details |
| 1 | T1210517 Oil pump assembly | Oil pump assembly ENG NO 96991 » | 1 | $159.69 | Backorder — Late August 2026 | 1 |
| 2 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 3 | $1.06 | Available to order | 3 |
| 3 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Available to order | 2 |
| 4 | T3600013 O Ring | O Ring | 1 | $1.40 | Available to order | 1 |
| 5 | T1210800 Oil pump gear | Oil pump gear » ENG NO 96990 | 1 | $25.33 | Obsolete | View Details |
| 5 | T1210790 Gear & shaft | Gear & shaft ENG NO 96991 » » ENG NO 114511 31T | 1 | $84.15 | Obsolete | View Details |
| 5 | T1210791 Gear & shaft | Gear & shaft ENG NO 114512 » 31T | 1 | $84.15 | Obsolete | View Details |
| 6 | T1210535 Oil pump gear | Oil pump gear » ENG NO 83455 | 1 | $57.41 | Obsolete | View Details |
| 6 | T1210546 Oil pump gear | Oil pump gear ENG NO 83456 » | 1 | $47.42 | Obsolete | View Details |
| 7 | T1210805 Gear & shaft | Gear & shaft » ENG NO 83455 | 1 | $67.00 | Obsolete | View Details |
| 7 | T1210820 Gear & shaft | Gear & shaft ENG NO 83456 » » ENG NO 114511 | 1 | $67.00 | Obsolete | View Details |
| 7 | T1210808 Gear kit | Gear kit ENG NO 114512 » » ENG NO 118320 | 1 | $17.02 | Out of Stock | Notify Me |
| 7 | T1210804 Gear & shaft | Gear & shaft ENG NO 118321 » 14T | 1 | $67.01 | Obsolete | View Details |
| 8 | 3330280-T0301 Screw, Csk Head | Screw, Csk Head » ENG NO 92116 M5 x 10mm | 2 | $1.37 | Obsolete | View Details |
| 8 | T3330281 Screw Csk Head | Screw Csk Head ENG NO 92117 » » ENG NO 96690 M5 x 15mm | 1 | $1.50 | Obsolete | View Details |
| 8 | T3332704 Screw, Torx, M6 x 14 | Screw, Torx, M6 x 14 ENG NO 118321 » M6 x 14mm | 1 | $5.24 | Available to order | 1 |
| 9 | 3550033-T0301 Washer hard | Washer hard » ENG NO 96990 M5 | 2 | $1.50 | Obsolete | View Details |
| 9 | 3550230-T0301 Washer hard | Washer hard ENG NO 118321 » M6 | 1 | $3.74 | Obsolete | View Details |
| 10 | T1211065 Pressure Relief Valve | Pressure Relief Valve | 1 | $37.15 | Available to order | 1 |
| 11 | 3500008-T0301 Circlip | Circlip ENG NO 96691 » | 1 | $0.90 | Obsolete | View Details |
| 12 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 ENG NO 96691 » | 1 | $1.40 | Available to order | 1 |
| 13 | T3331191 Screw, Pan/Hd, Tx, M6 x 20, Enc | Screw, Pan/Hd, Tx, M6 x 20, Enc | 1 | $2.10 | Available to order | 1 |
