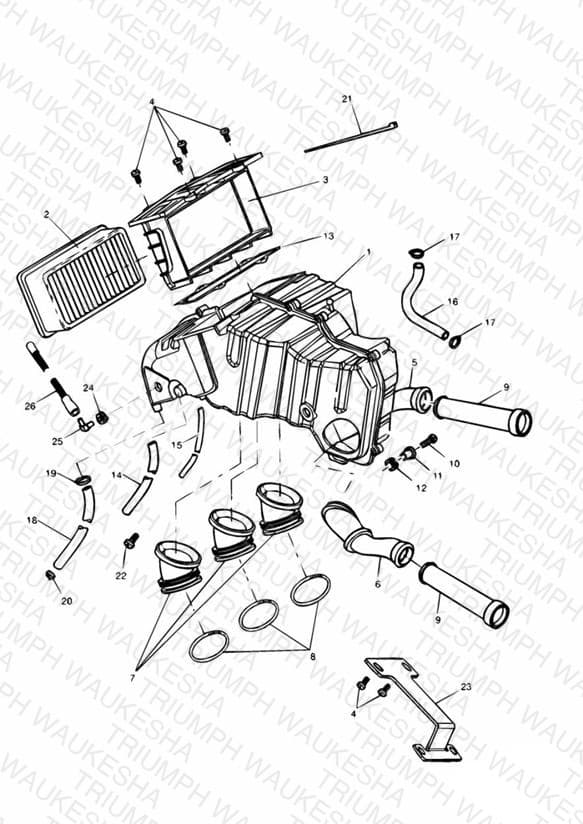

Airbox
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2201610 Airbox kit | Airbox kit » 71698 | 1 | $219.23 | Obsolete | View Details |
| 1 | T2201600 Airbox assembly | Airbox assembly 71699 > | 1 | $223.61 | Obsolete | View Details |
| 2 | T2201246 Air Filter Element | Air Filter Element | 1 | $53.73 | Available to order | 1 |
| 3 | T2201272 Filter housing | Filter housing | 1 | $11.24 | Obsolete | View Details |
| 4 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 6 | $1.04 | Available to order | 6 |
| 5 | T2201277 Duct intake | Duct intake LH | 1 | $13.69 | Obsolete | View Details |
| 6 | T2201278 Duct intake | Duct intake RH | 1 | $13.69 | Obsolete | View Details |
| 7 | T2201264 Intake trumpet | Intake trumpet » 71698 | 3 | $17.96 | Obsolete | View Details |
| 8 | T3700029 Clip, Intake Trumpet | Clip, Intake Trumpet » 71698 | 3 | $11.45 | Available to order | 3 |
| 8 | T2201295 Spring sealing | Spring sealing 71699 » | 3 | $1.91 | Out of Stock | Notify Me |
| 9 | T2201265 Hose intake | Hose intake | 2 | $10.37 | Obsolete | View Details |
| 10 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc » 71698 | 1 | $1.13 | Available to order | 1 |
| 11 | T3010021 Flanged sleeve | Flanged sleeve » 71698 | 1 | $1.84 | Obsolete | View Details |
| 12 | T3020455 Grommet | Grommet » 71698 | 1 | $0.69 | Obsolete | View Details |
| 13 | T2201276 Gasket | Gasket | 1 | $5.47 | Out of Stock | Notify Me |
| 14 | T1240797 HOSE, IDLE SPEED CONTROL VALVE | HOSE, IDLE SPEED CONTROL VALVE PART NO LONGER AVAILABLE | 1 | $15.85 | Obsolete | View Details |
| 15 | T3620278 Hose | Hose Fuel pressure regulator | 1 | $9.60 | Available to order | 1 |
| 16 | T2203800 Breather hose | Breather hose | 1 | $9.98 | Obsolete | View Details |
| 17 | T3700051 Hose Clip, Dia 18.1-20 x 8mm | Hose Clip, Dia 18.1-20 x 8mm | 2 | $2.40 | Available to order | 2 |
| 18 | 3620240-T0301 Hose drain | Hose drain | 1 | $12.22 | Available to order | 1 |
| 19 | T3700030 Clip pipe | Clip pipe | 1 | $1.04 | Available to order | 1 |
| 20 | T3450145 End Tip | End Tip | 1 | $1.29 | Available to order | 1 |
| 21 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.95 | Available to order | 1 |
| 22 | T3330129 Screw | Screw 71699 » M5 x 15mm Black | 10 | $0.45 | Obsolete | View Details |
| 23 | T1240827 Mounting bracket | Mounting bracket Used in Airbox Kit | 1 | $103.16 | Obsolete | View Details |
| 24 | T3020025 Grommet | Grommet 89737 » | 1 | $2.27 | Obsolete | View Details |
| 25 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube 89737 » | 1 | $1.50 | Available to order | 1 |
| 26 | T2201240 Tube | Tube 89737 » Barometric sensor | 1 | $29.87 | Obsolete | View Details |
